P20 PUMP OPERATION / MAINTENANCE MANUAL
6
INSPECTION AND MAINTENANCE
6.1 MAINTENANCE
TREBOR’S PURUS 20 has no serviceable parts, due to its welded and sealed
construction. Please neutralize and dispose of the pump accordingly or contact the
factory regarding methods of recycling.
6.2 PART REFERENCE ILLUSTRATION
– P20

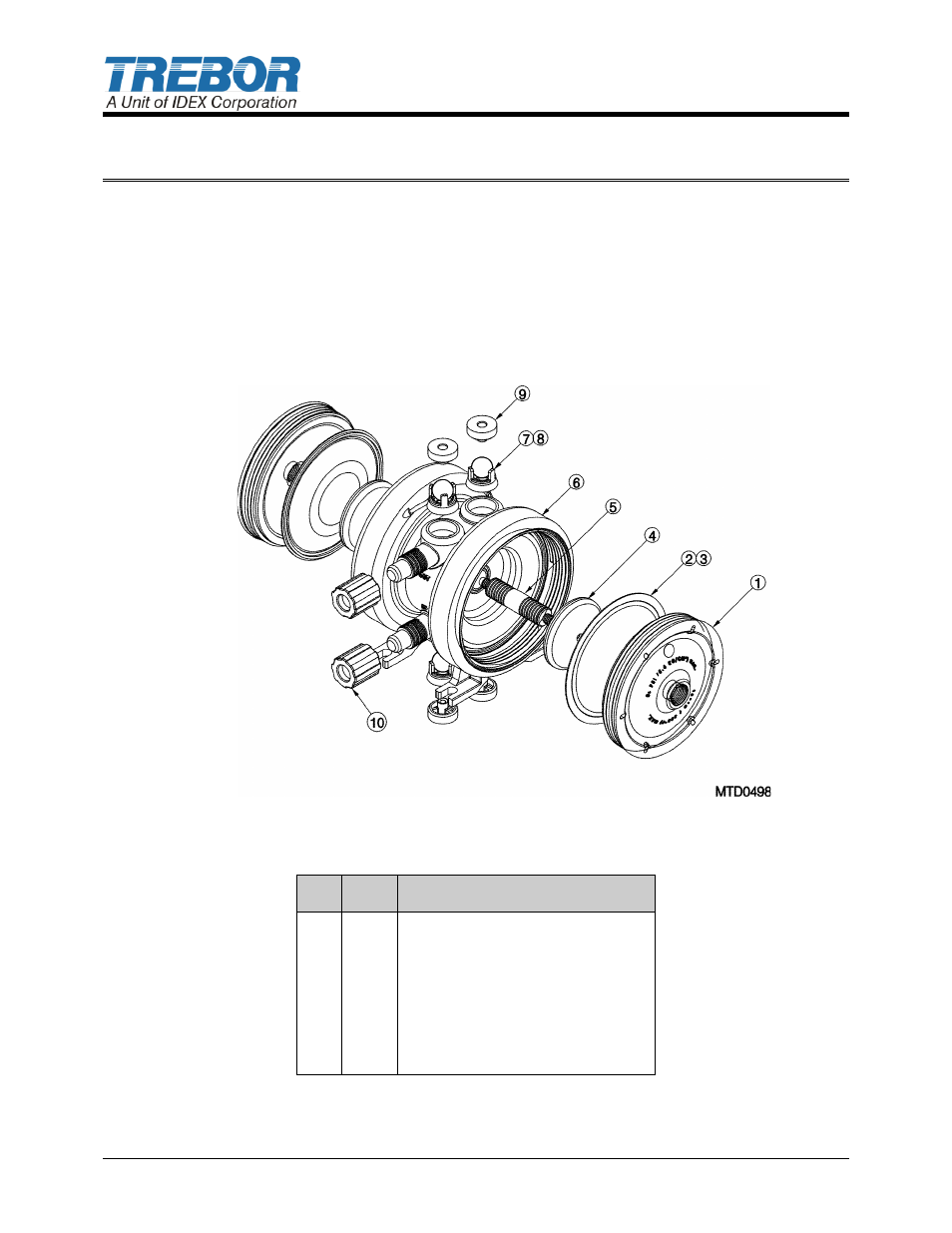

Figure 6-1 Exploded View
6.3 PART REFERENCE LIST
– P20
ILL
NO
QTY
DESCRIPTION
1
2
HEAD
2
2
DIAPHRAGM
3
2
MAIN SEAL
4
2
PUSH PLATE
5
1
SHAFT
6
1
BODY ASSY
7
2
SUCTION SEAT
8
4
CHECK BALL
9
4
CHECK CAP
10
2
1/2T FLR NUT
