Trebor 960D Mega - Manual (Page 19)

Figure 4-3

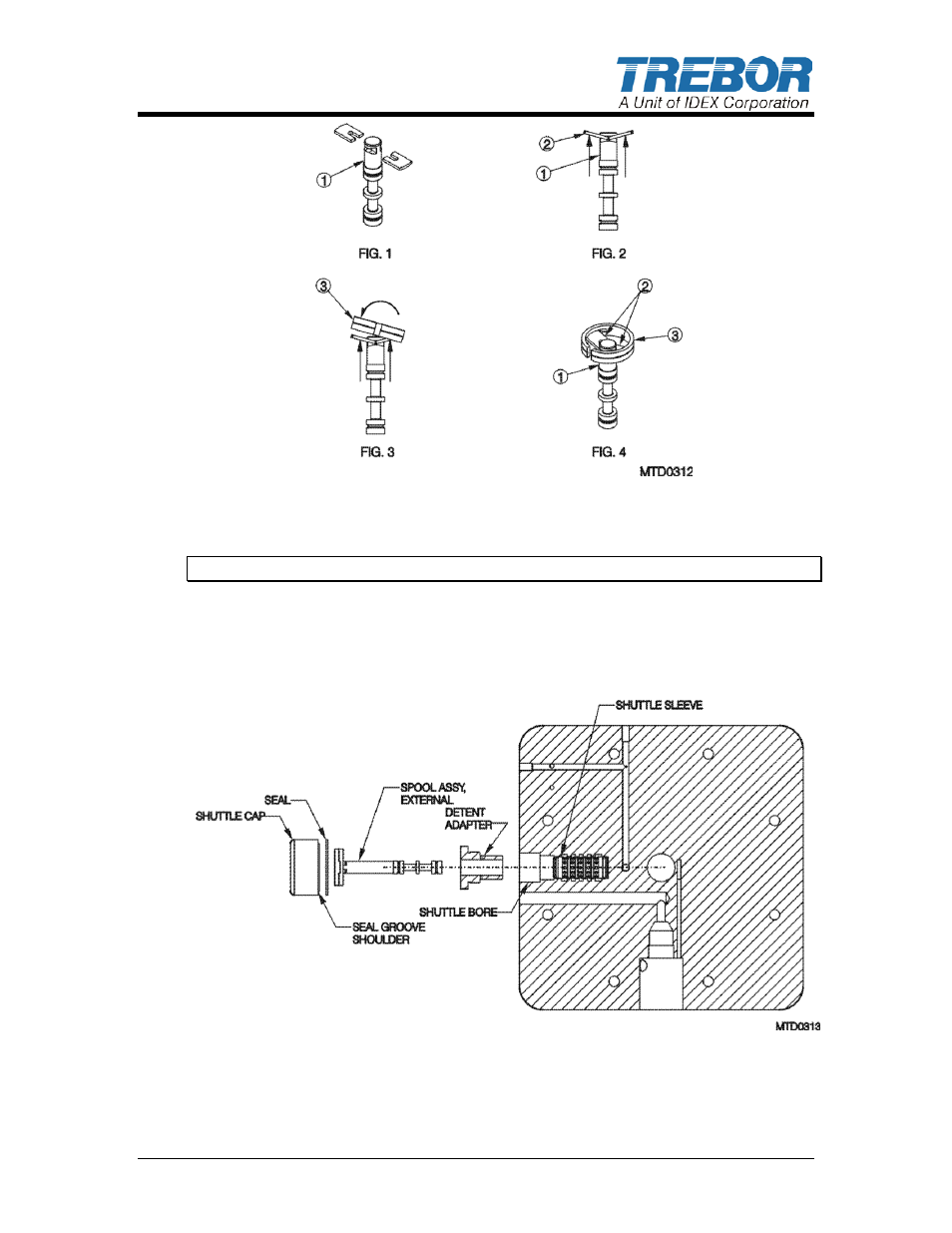

4.8.c Shuttle Assembly (Master Head)
NOTE: Ensure that the spool moves freely inside the sleeve prior to installation.
• Thread detent adapter into shuttle bore until flush against head. Tighten to
45 in-lbs.
• Insert shuttle spool assembly into adapter detent and Shuttle Sleeve. (Do
not lubricate.)
Figure 4-4
• Install the seal onto seal groove shoulder of the shuttle cap.
• Thread shuttle cap onto detent adapter. Tighten to 40 in-lbs.
MEGA 960D PUMP OPERATION / MAINTENANCE MANUAL PAGE 19
