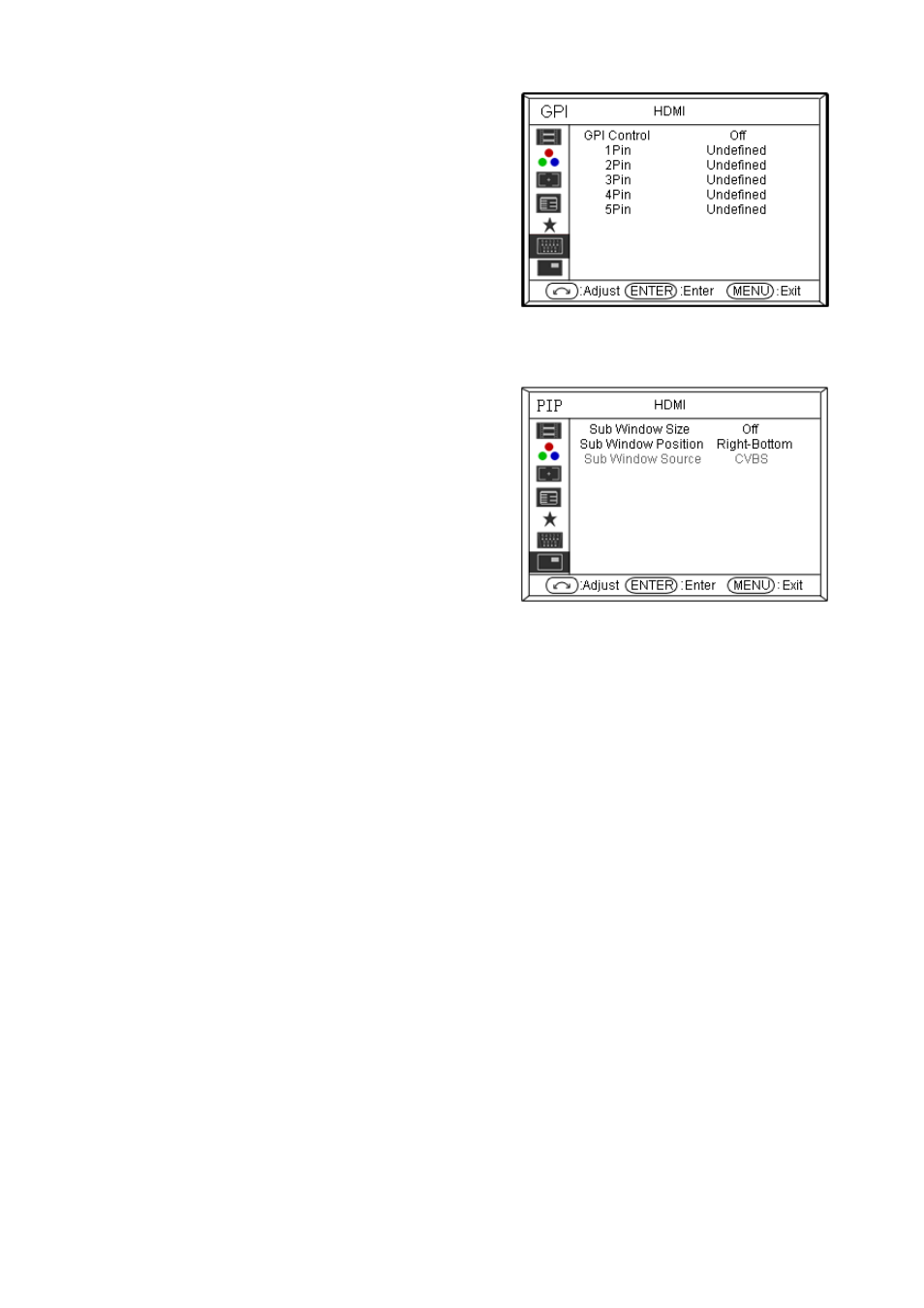

3.6 GPI submenu
The “GPI” submenu includes:
⑴ GPI control: on/off
On: User can control the monitor through GPI control
unit
Off: User cannot control the monitor through GPI
control unit
⑵ Terminal1~5: define each GPI terminal function, see
details in “4.TALLY/GPI Operation”
3.7 PIP submenu
The “PIP” submenu includes:
⑴ Sub window size:
Off, Large, Small
⑵ Sub window position:
Right-Bottom, Right-Top, Left-Bottom, Left-Top
⑶ Sub window source
When the input signal is SDI1/SDI2/HDMI,
the PIP window signal can only be CVBS;
When the input signal is CVBS,
the PIP window signal can be selected from SDI1/SDI2/HDMI.
