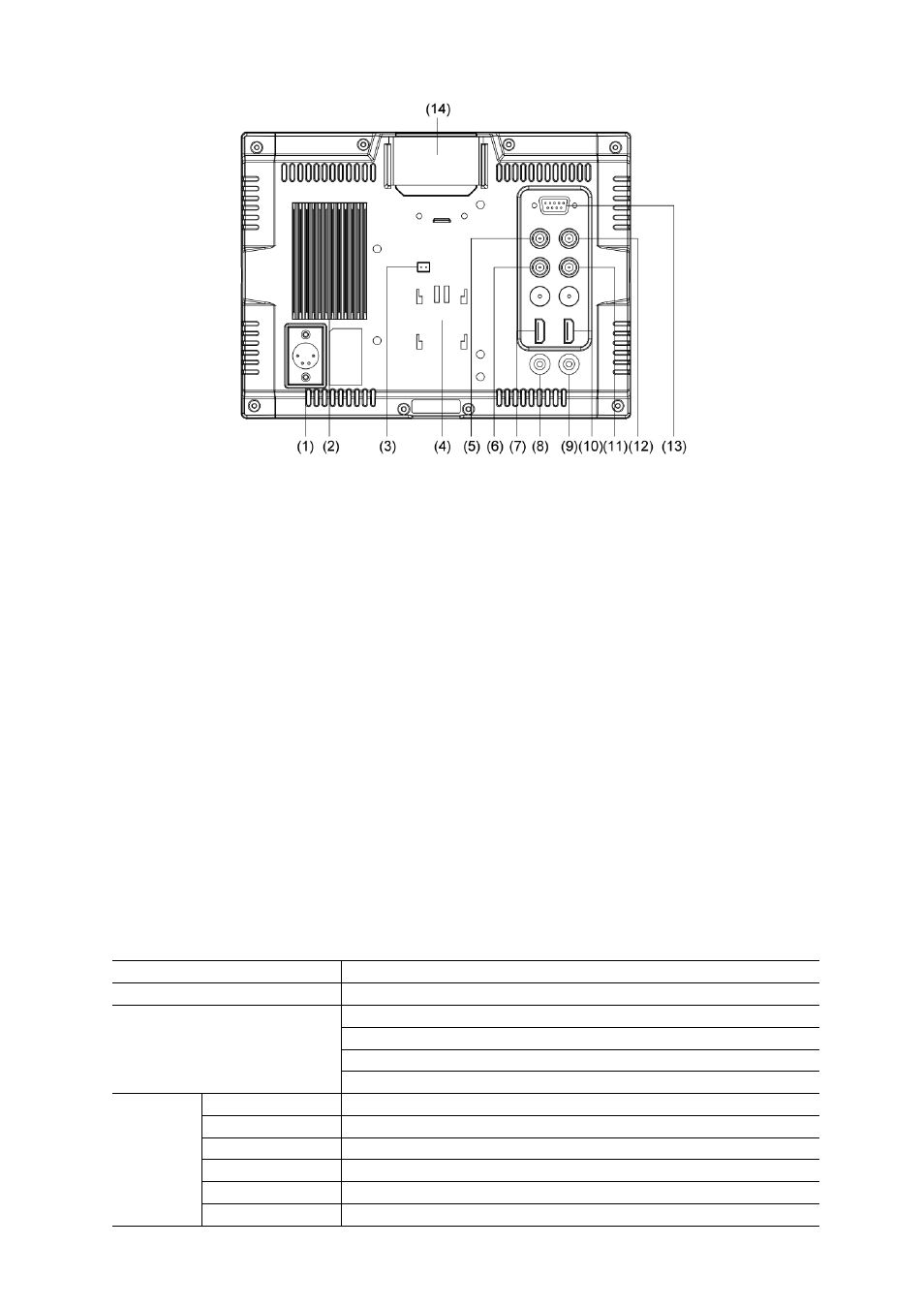

Rear view
⑴ DC 12V IN: Connect with DC12V 4-pin XLR power adapter, support 6.5V-24V voltage input (Pin 1:
Negative, Pin 4: Positive)
⑵ Heat sinks: under normal temperature, when the monitor is working, the temperature of the heat
sinks may reach 55
℃ which is a normal phenomenon. Please do not touch the heat sinks.
⑶、⑷Battery mount connector:
Connect with SWIT S-7004 series quick release battery plate, and then mount corresponding
V-mount or DV batteries. See details in “5.Optional Battery Plate”.
⑸ SDI-OUT: SDI loop through output (BNC connector)
When SDI2 is displayed, the SDI-LOOP outputs the SDI-IN2 signal, and when SDI-IN1 or other
input sources are displayed, the SDI-LOOP outputs the SDI-IN1 signal.
⑹ SDI-IN1：SDI input (BNC connector)
⑺ HDMI-OUT: HDMI loop through output (HDMI
-A connector)
⑻ PHONE: 3.5mm headphone socket, for SDI/HDMI embedded audio and analog audio monitoring.
⑼ ADUIO-IN: 3.5mm analog audio input
⑽ HDMI-IN: HDMI input (HDMI
-A connector)
⑾ SDI-IN2: SDI input (BNC connector)
⑿ CVBS-IN: CVBS input (BNC connector)
⒀ TALLY/GPI:TALLY and GPI control input. See details in “4.TALLY/GPI TALLY Operation”.
⒁ TALLY Light: Red, Green and Yellow 3-color TALLY indicator
·
· · ·Input formats
Input Supported formats
CVBS PAL / NTSC
HDMI
480i / 576i / 480p / 576p
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
SDI
SMPTE-425M 1080p (60 / 59.94 / 50)
SMPTE-274M 1080i (60 / 59.94 / 50), 1080p
（30 / 29.97 / 25 / 24 / 23.98)
SMPTE-RP211 1080psf (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-296M 720p (60 / 59.94 / 50)
SMPTE-125M 480i (59.94)
ITU-R BT.656 576i (50)
