- 8 -

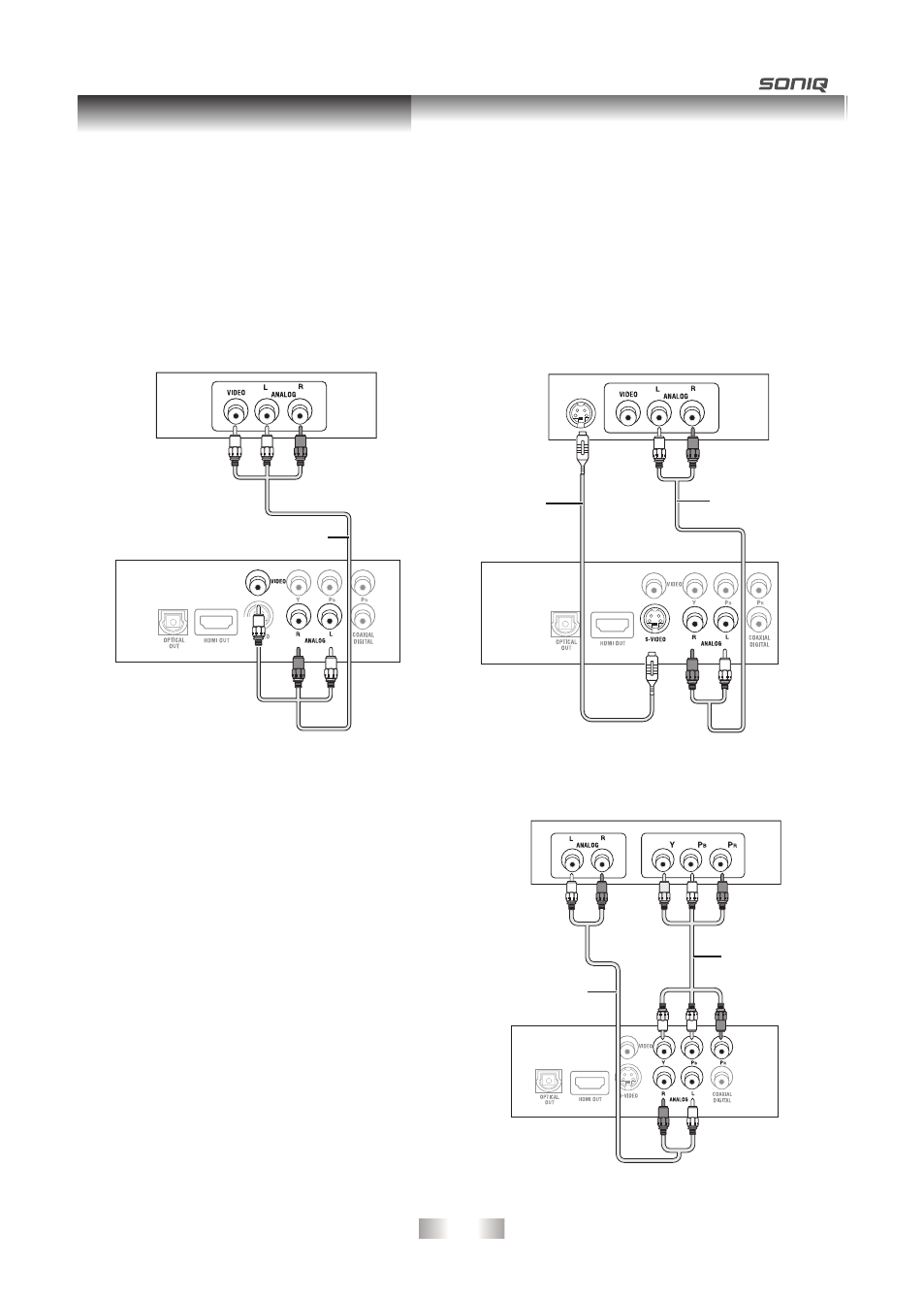

CONNECTING TO A TV
The unit can be connected to your TV in several different ways, depending on the design of your TV.
Note: Use only one of the below listed connection method for connecting to your TV.
TV
DRC300i
red
white yellow
red
white
yellow
AV cable (included)
TV
DRC300i
red
red
white
white
Audio cable
(red and white)
S-video
cable
A. RCA AUDIO/VIDEO JACKS
1. Use the Audio/Video cable (supplied). Connect the
VIDEO OUT and left/right AUDIO OUT jacks on the
unit to the VIDEO IN and left/right AUDIO IN jacks
on your TV.
2. Use the S-video cable (not supplied). If the TV
has a S Video input, connect the unit with an S
video cable. When using an S-Video cable, do not
connect the yellow video cable and component
video cables (y/P
B
/P
R
).
B. COMPONENT VIDEO OUT (DVD)
Some TVs or monitors are equipped with component
video inputs.
Use an audio cable (not supplied), connect the left/
right AUDIO OUT jacks on your unit to the left/right
AUDIO IN jacks on your TV.
Using a component video cable (not supplied),
connect the y VIDEO OUT jack (green plug) on your
unit to the y VIDEO IN jack on your TV, the P
B
VIDEO
OUT jack (blue plug) on your unit to the P
B
VIDEO
IN jack on your TV and the P
R
VIDEO OUT jack (red
plug) on your unit to the P
R
VIDEO IN jack on your TV
to view the highest quality picture playback.
green
blue
red
TV
DRC300i
red
red
white
white
VIDEO IN AUDIO IN
Audio cable
(red and white)
green
blue
red
Component
video cable
(green/blue/red)
Setup and Connections
