For flat back screen, Hook the tv onto the wall mount – SONIQ AWM1701 User Manual
Page 5
Tighten all screws but do not over tighten.
For Flat Back Screen
TV
TV
TV
TV
M-G
M-H
M-C
M-D
M-A
B
M-
M-E
M-F
M-I

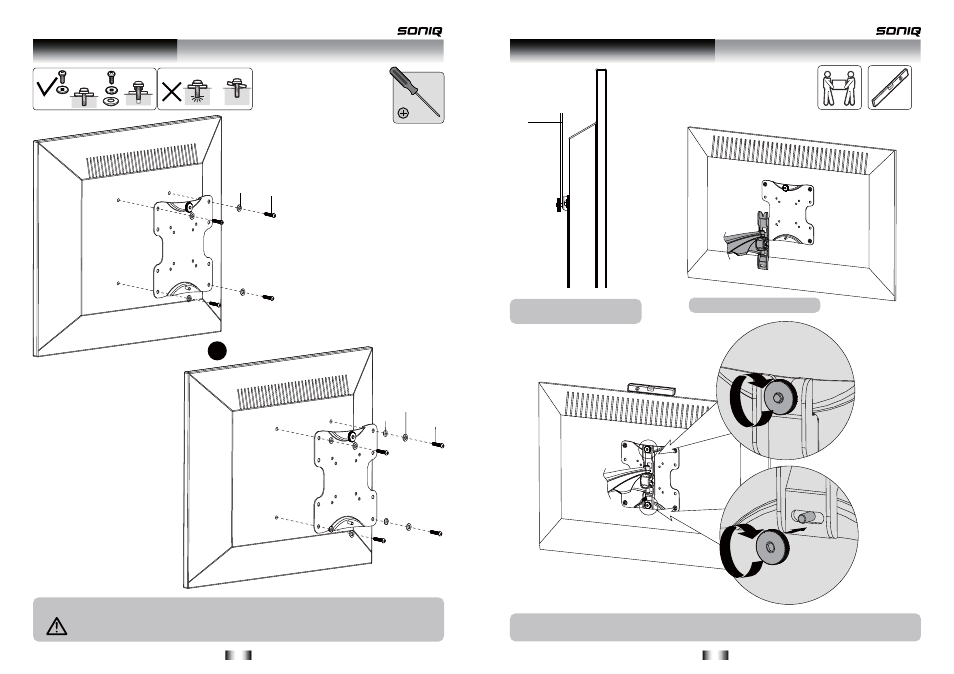

Screw VESA plate onto the TV.
or
6. Hook the TV onto the Wall Mount
·
Position the TV level.
·
Place the lower thumbscrew; Tighten both thumbscrews.
Two qualified
persons are
required
Loosen the upper thumbscrew
spacing 4mm to VESA plate.
Hook the TV onto the wall mount
4mm
-7-
-8-
