PART I : SETTING UP THE AZ-EQ6 GT MOUNT
1. Fully expand the tripod legs on level ground.
2. Locate the locking clamps on the legs and turn counter-clockwise to unlock them to extend
the tripod legs.
3. Extend the legs to desired height, make sure the tripod top is level and then lock the
clamps.
1.1 Setting Up the Tripod
1.2 Putting On the AZ-EQ6 GT Mount

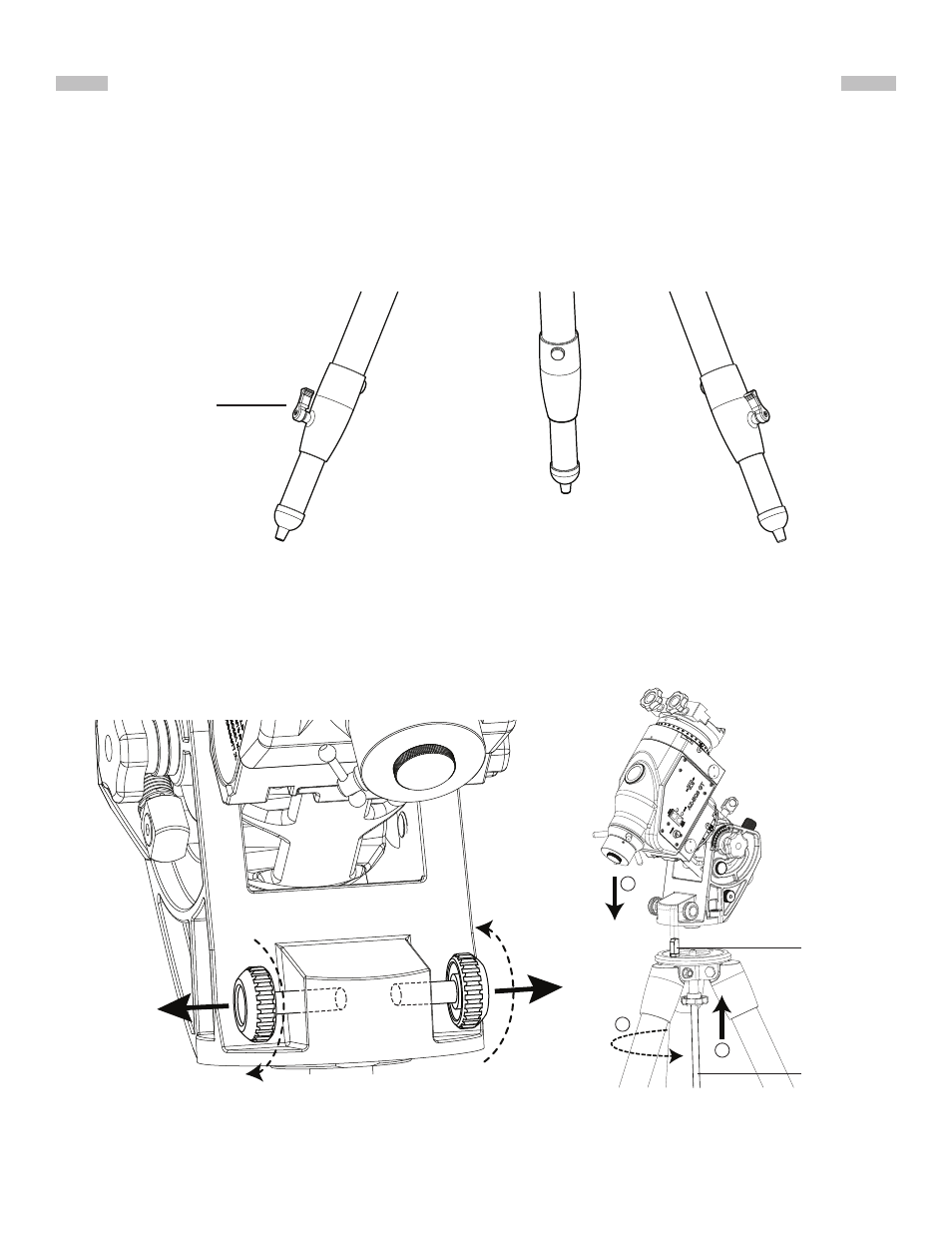

Fig. 1.1
1. Loosen the two azimuth adjustment knobs on the AZ-EQ6 GT mount until there is sufficient
space between the two knob screws. (Fig. 1.2a)
Fig. 1.2a Fig. 1.2b
1
2
3
clamp
Azimuth Adjustment Knobs
*
*
*
Dowel
Primary
locking shaft
