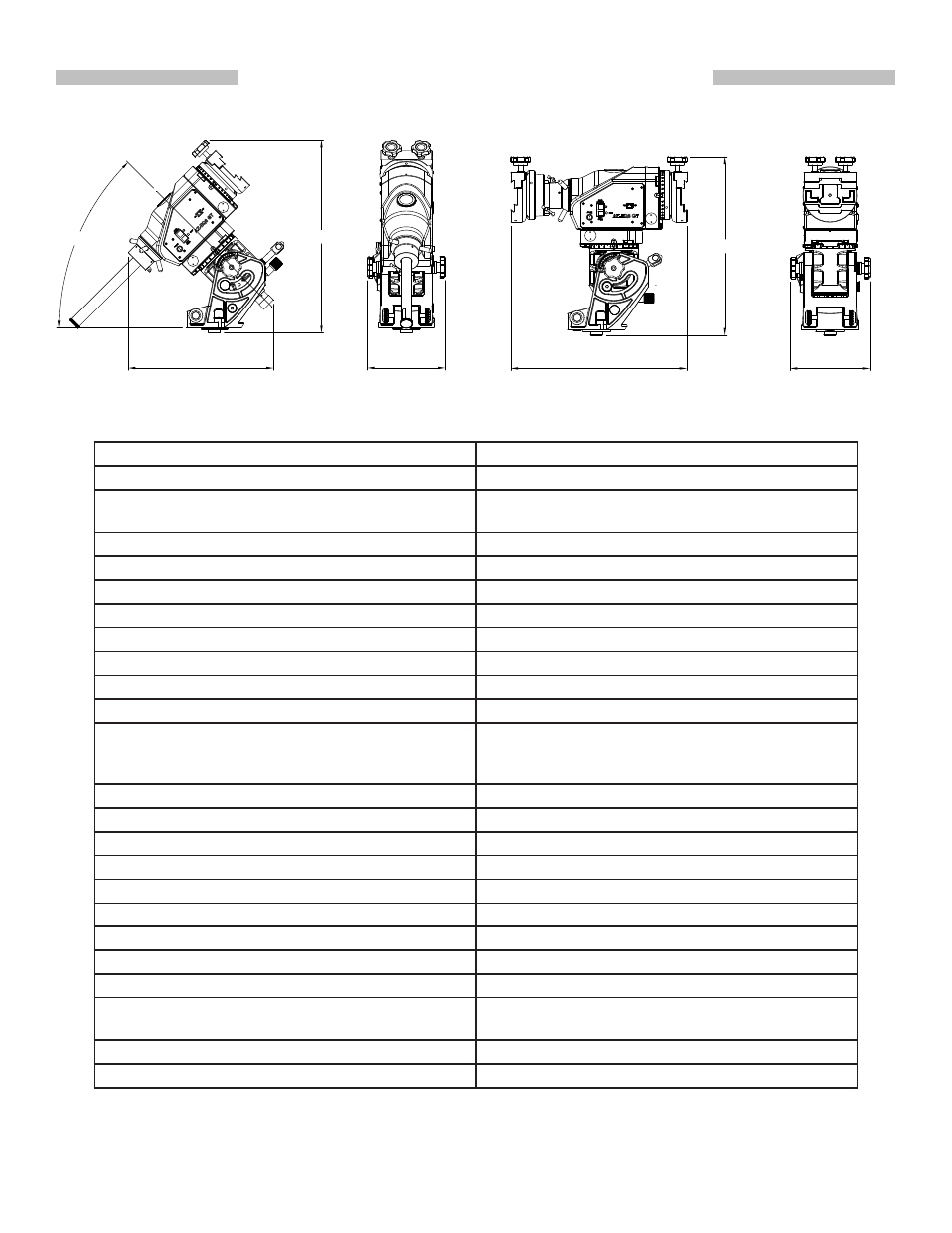

Dimensions:
Specifications:
Equatorial Mode Alt-azimuth Mode
Product Name AZ-EQ6 GT Mount
Mount Type German Equatorial / Alt-azimuth Dual Mode
Payload
(Counterweights excluded)
20kg
Latitude Adjustment Range 10º to 75º, 90º
Azimuth Adjustment Range About ±9 º
Weight(Tripod excluded) 15.4 kg
Counterweight 2 x 5kg/ea
Tripod 2-inch stainless steel, 7.5kg
Counterweight Rod 25mm Diameter, Length 202mm + 150mm
Power Requirement DC11~16V 4A
Motor 1.8 º Hybrid Stepper Motor
Transmission 180:1 Worm Drive + 48:12 Timing Belt Drive + 64
Micro-step/1.8º Stepper Motor Drive
Gear Ratio 720
Resolution 9216000 Counts/Rev., approx. 0.14 arc-second
Maximum Slewing Speed 4.2 degrees/second
Tracking Rate Sidereal rate, solar rate, lunar rate
Tracking Mode Alt-azimuth mode or Equatorial mode
Auto-guiding Speed 0.125X, 0.25X, 0.5X, 0.75X, 1X
PEC 100 Segments Permanent PEC
Hand Controller SynScan
Database 42000+ Objects
Celestial Object Catalog Messier, NGC, IC, SAO, Caldwell, Double Star, Vari-
able Star, Named Star, Planets
Pointing Accuracy Up to 5 arc-minutes (RMS)
Resolution of Aux. R.A./Dec. Axis Encoders 6356 Counts/Rev., approx. 3.4 arc-minutes
Note: The above specifications may be changed without advance notice.
APPENDIX I : SPECIFICATIONS
342
453 45°
182 403
410
182
