Rite-Ride 2550 User Manual

Page 2

SOME TRUCKS

WILL NOT HAVE

THIS JOUNCE STOP.

SEE FIGURE “C”.

NOTICE: SEE FIGURE “B”

FOR INSTALLATION OF

THE 3/8” X 2-1/2” BOLT

Find the closest point between

the exhaust pipe and the air

spring. Mount the heat shield in

this location.

NOTE: This diagram is of the left side of the truck. Reverse

any orientations when assembling and installing the right side

of the vehicle.

Figure “A”

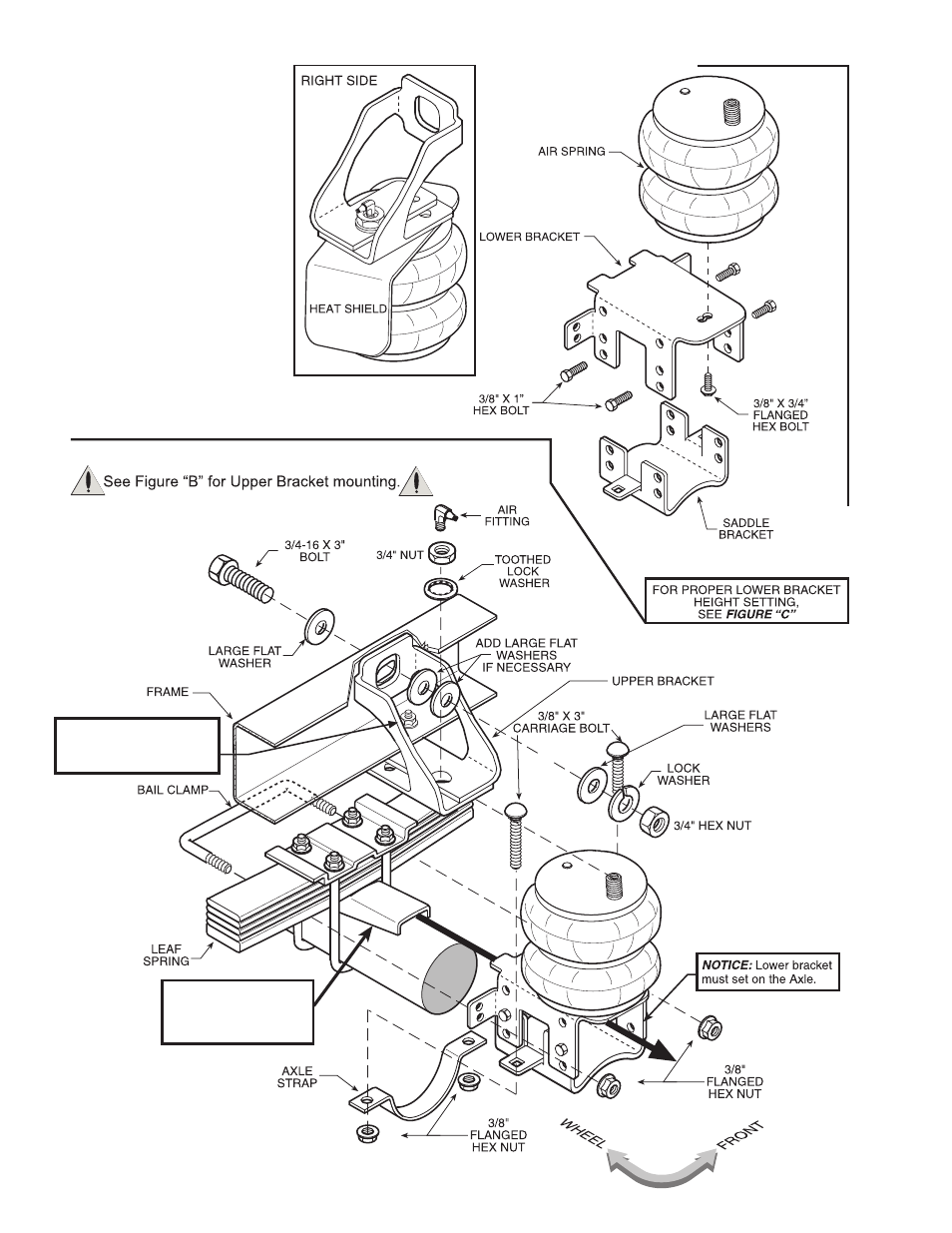

KIT TO FRAME ASSEMBLY

KIT

ASSEMBLY

1999–2004 Trucks
