Rite-Ride 2517 - Manual

2517
I
NSTALLATION
I
NSTRUCTIONS
Congratulations, your new air helper springs are
quality products capable of improving the handling and
comfort of your vehicle. As with all products, proper
installation is the key to obtaining all of the benefits your
kit is capable of delivering. Please take a few minutes to
read through the instructions to identify the components
and learn where and how they are used. It is a good idea
to start by comparing the parts in your kit with the parts
list below.

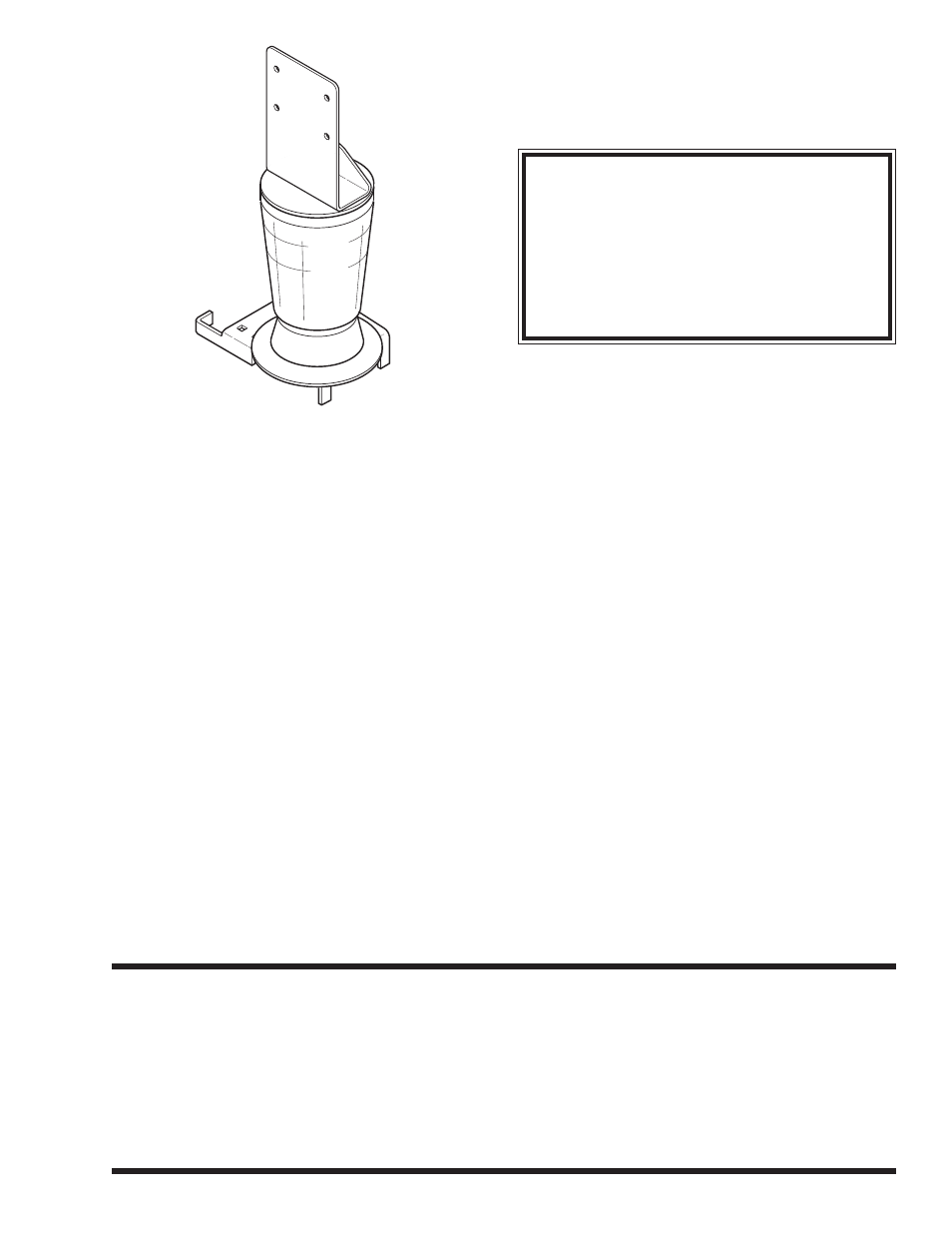

The heart of the air spring kit is, of course, the air
helper springs. Remember that the air springs must flex
and expand during operation, so be sure that there is
enough clearance to do so without rubbing against any
other part of the vehicle.
Be sure to take all applicable safety precautions
during the installation of the kit. The instructions listed
in this brochure and the illustrations all show the right, or
passenger’s side of the vehicle. To install the left side
assembly, simply follow the same procedures.
Your kit includes separate inflation valves and air line
for each air helper spring. This will allow you to level
your vehicle from side to side as well as from front to
back. If you would rather have a single valve inflation
system, your dealer can supply the required T-fitting.
I
MPORTANT
!
For your safety and to prevent possible damage to your
vehicle, do not exceed the maximum load recommended
by the vehicle manufacturer (GVWR). Although your Air
Helper Springs are rated at a maximum inflation pressure
of 100 psi, this pressure may allow you to carry too great
a load on some vehicles. It is best to have your vehicle
weighed once it is completely loaded and compare that
weight to the maximum allowed. Check your vehicle
owner’s manual or data plate on driver side door for
maximum loads listed for your vehicle.
When inflating your Air Helper Springs, add air
pressure in small quantities, checking pressure frequently
during inflation. The air spring requires much less air
volume than a tire and, therefore, inflates much quicker.
01-10 NAD-37522
W
ARNING
:
Do not inflate this assembly when it is
unrestricted. The assembly must be restricted
by the suspension or other adequate structure.
Do not inflate beyond 100 psi. Improper use or
overinflation may cause property damage or
severe personal injury.
P
ARTS LIST
AIR SPRING 9001 2
UPPER BRACKET 5694 2
UPPER SUPPORT BRACKET 5695 2
LOWER BRACKET 5696 2
DISK 5204 2
BRACKET STRAP 5086 2
3/8" -16 x 1-1/2" HEX BOLT 8
3/8" -16 x 1" FLANGED HEX BOLT 4
3/8" -16 x 3/4" FLAT HEAD BOLT 2
3/8" -16 X 3-1/2" CARRIAGE BOLT 4
3/8" -16 FLANGED LOCK NUT 12
3/8" LARGE FLAT WASHER 8
5/16" FLAT WASHER 4
MALE FITTING 3100 2
INFLATION VALVE 3098 2
VALVE CAP
AIR LINE TUBING
0938 1
THERMAL SLEEVE 2
NYLON TIE 6
CAUTION TAG 2
