Rite-Ride 2320 User Manual
Page 3

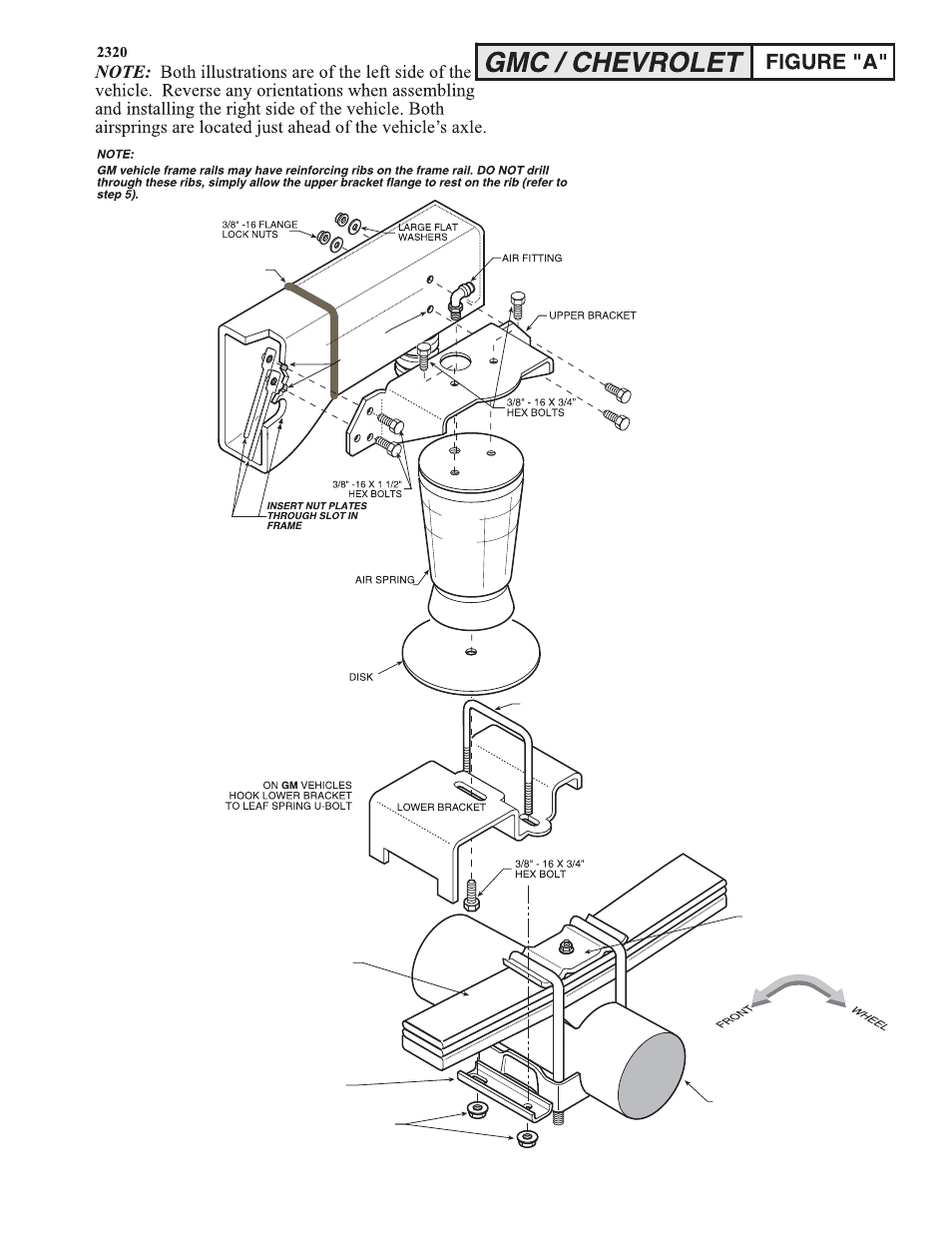

GM vehicles - The upper bracket aligns on
the frame where a box frame and
C-channel frame are welded together.
No spacers are need. Mark and drill the
holes and fasten the reward flange to the
frame first, then the forward flange.
HOLES
TO
BE DRILLED
7/16"
ON GM VEHICLES
FRAME
WELD
3/8”-16
BAIL CLAMP
LEAF SPRING
AXLE
BRACKET
STRAP (5086)
3/8" -16 FLANGE
LOCK NUTS
LEAF SPRING
RETAINER
NOTE: Install the included
spacer between the factory
installed jounce bumper and
the frame. See Figure “F”.
