+12 V
PINK

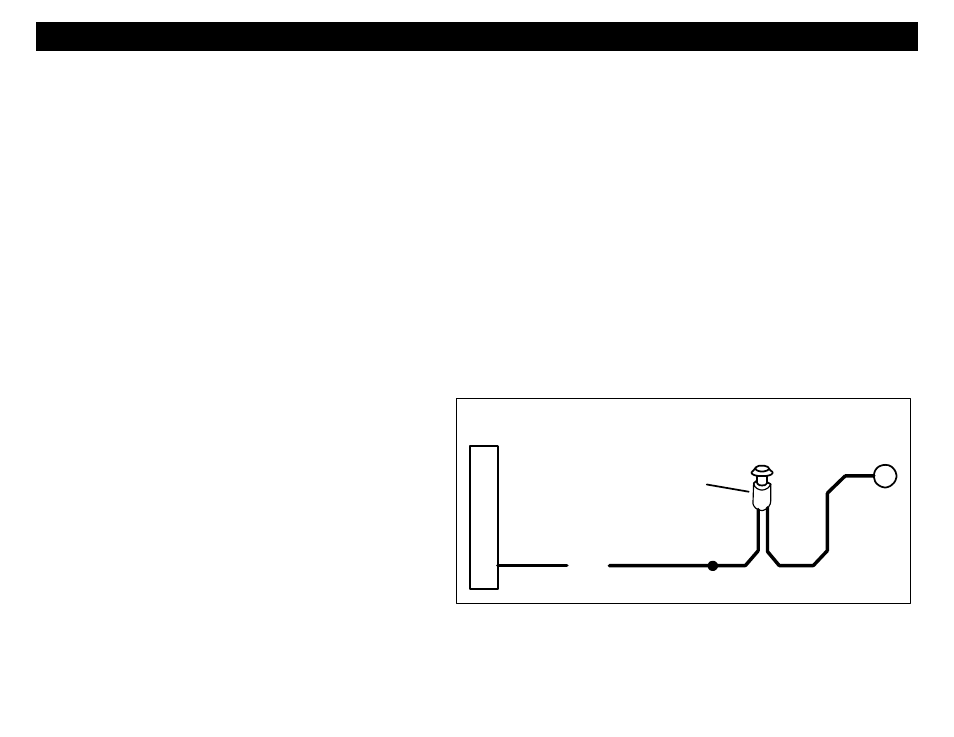

OPTIONAL CAR JACK WIRING: SWITCH
HIDDEN BUTTON or
TOGGLE SWITCH
(Not Included)
WIRING
WHITE WIRE: +12V FLASHING PARKING LIGHT OUTPUT (10A)
Connect to the switched parking light wire at back of light switch or connect directly to one of the parking lights at the
front of the vehicle. European vehicles may require additional parts due to separate left and right circuits.
BROWN WIRE: (+) SIREN OUTPUT (3 Amp Max.)
Connect to the siren’s RED wire. Connect the Siren’s Black Ground wire to the chassis close to the siren.
BLUE WIRE: (-) HOOD/TRUNK TRIGGER
The Blue wire is used for a grounding hood pin switch, trunk pin or both. Connect to existing hood and trunk pin
switches that read ground when open. If no existing switches are available, install new pin switches if desired.
GREEN WIRE: (-) DOOR TRIGGER
Connect to Negative type door switches that read ground when a door is opened and 12 volts when all doors are
closed. In the case of isolated door triggers, you may need to run additional wires from other doors OR go directly
to the dome light.
VIOLET WIRE: (+) DOOR TRIGGER
Connect to Positive type door switches that show +12 Volts when the door is open and Ground when the doors are
closed.
PINK WIRE: (+) CARJACK INPUT
Connect to a push button, toggle switch, or to a +12
Volt source to selectively activate Car Jack protection
features - See diagram on next page for example
wiring configuration. This wire is used to activate a
passive carjack trigger even if the Carjack features
are not turned on in the programming options. A
Carjack countdown will begin under the following
conditions: Ignition is ON (vehicle is running), the
button or toggle switch is pressed, and a door opens
& closes. Upon these 3 events, in that order, the
alarm will start a Carjack countdown. See “Carjack protection” section on page 19.
4
