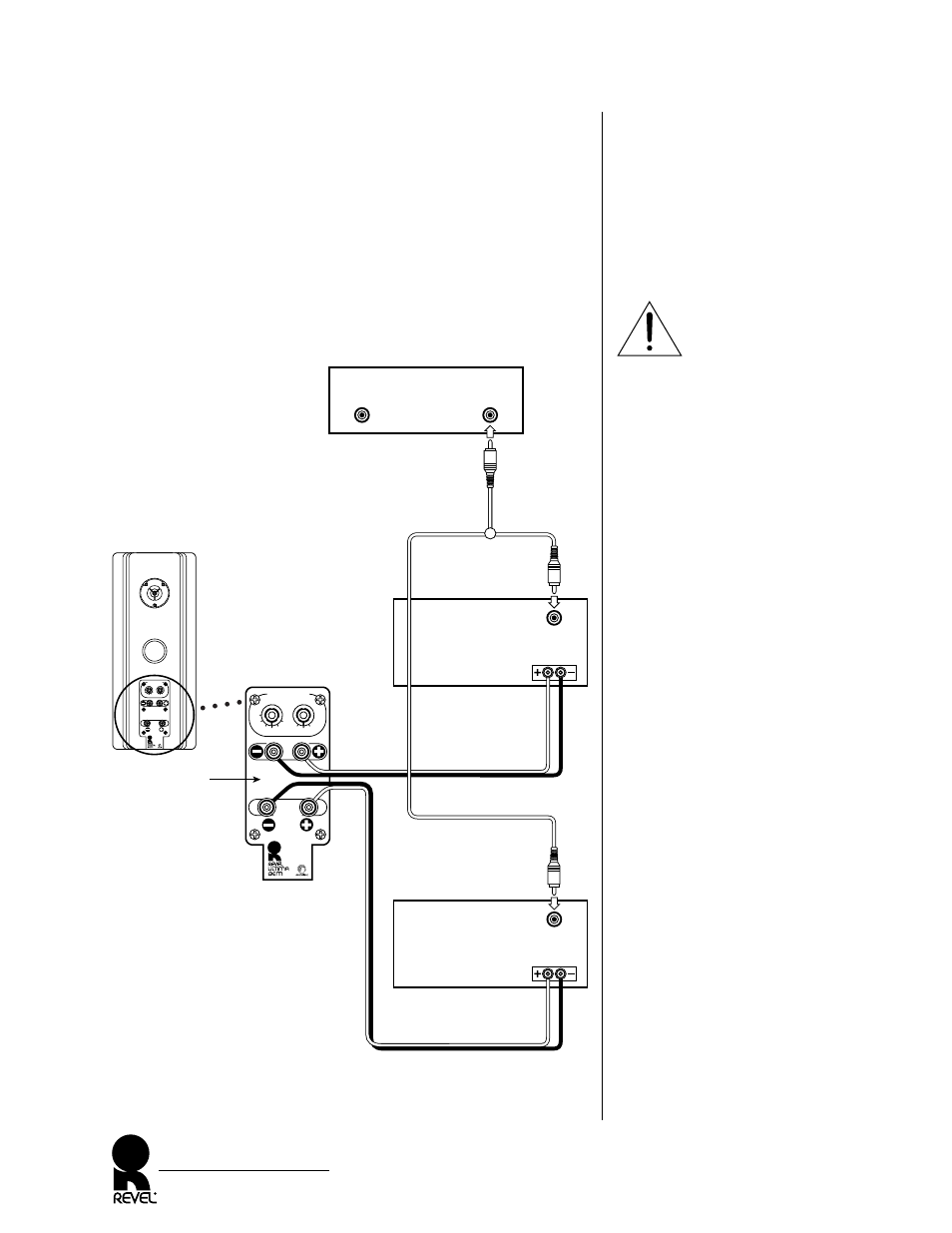

Figure 14. How to connect
the REVEL ULTIMA GEM
loudspeaker in a horizontal
bi-amplified system.
CONNECTIONS
BI-AMPLIFIED SYSTEM CONNECTIONS (CONT’D)
HORIZONTAL BI-AMPLIFIED SYSTEM
Using two amplifier channels, remove the shorting straps from the
rear panel; then connect the loudspeakers as shown in Figure 14.
Failure to remove the shorting straps when bi-amplifying may
damage some amplifiers.
NOTE: If the “gain factor” of the two amplifier channels is not identi-
cal, a means of adjusting the input level of at least one of the channels
is required. Consult your Revel dealer for specific recommendations.
REVEL ULTIMA GEM
Owner’s Manual
16
red white
red white
GEM Rear
Connector
Panel
Shorting Straps
Removed
(one channel shown –
use for high frequencies)
(one channel shown –
use for low frequencies)
Amplifier
(rear) INPUT
Amplifier
(rear) INPUT
High Frequency Input
High Frequency Level
(dB)
-1
Front
0 +.5 -.5
+1
-2
Rear
0 +4 0ff
Low Frequency Input
Serial No.
Northridge
California
Made in U.S.A.
High Frequency Input
High Frequency Level (dB)
-1
Front 0 +.5 -.5 +1 -2
Rear 0 +4 0ff
Low Frequency Input
Serial No.
In s ta ll S tr a p s fo
r
S in g le -w
ir e d
O p e ra tio n . In s ta ll S tr a p s fo r
S in g le -w ir e d
O p e ra ti o n . Note: Remove Straps for
Bi-wired or Bi-amplified Operation.
Northridge
California
Made in U.S.A.
(one channel shown)
(Optional “Y” Adaptor)
Pre-Amplifier
(rear) OUTPUT OUTPUT
WARNING
