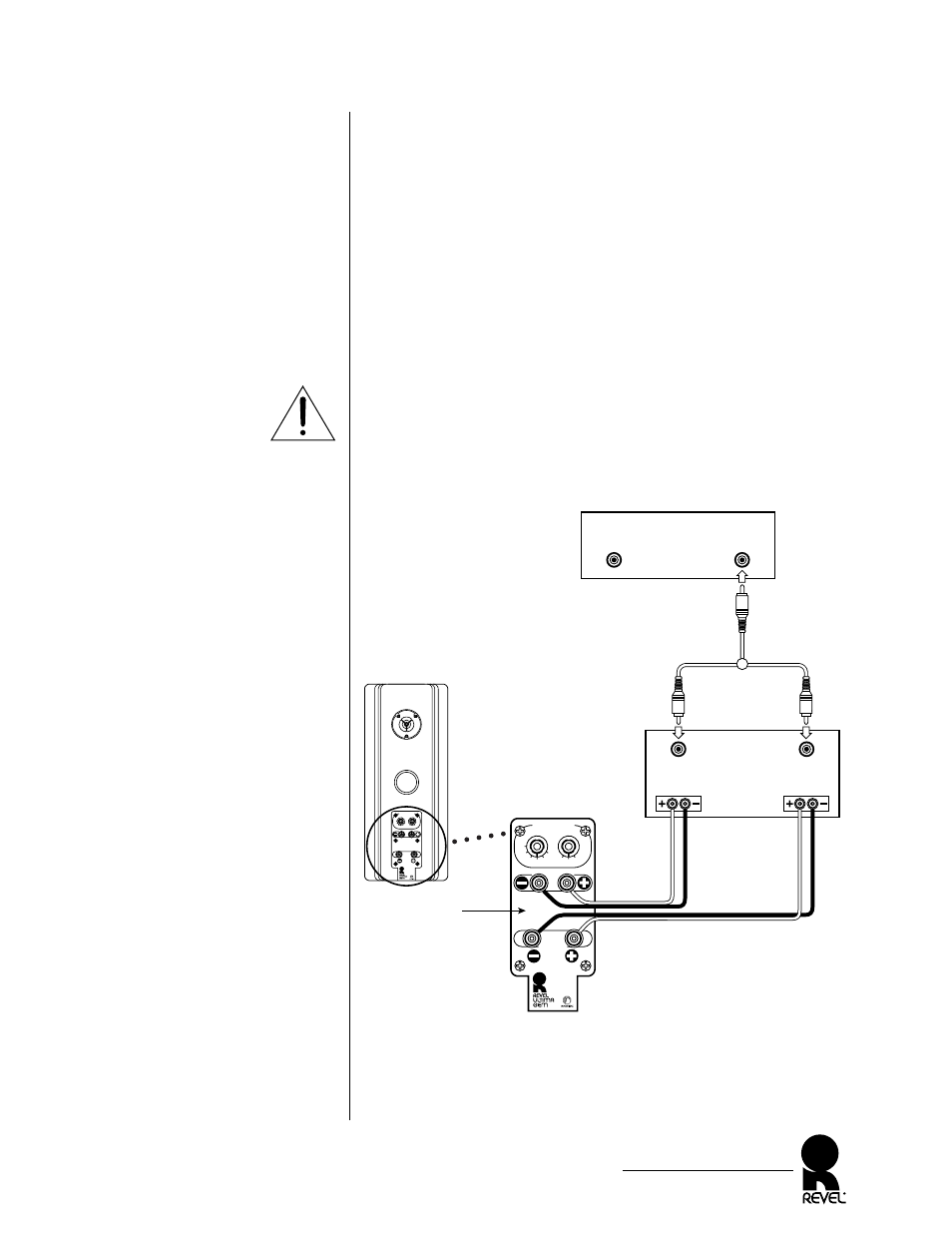

Figure 13. How to connect
the REVEL ULTIMA GEM
loudspeaker in a vertical
bi-amplified system.
BI-AMPLIFIED SYSTEM CONNECTIONS
A bi-amplified system provides increased sonic performance,
since independent amplifier channels separately drive each set of
high- and low-frequency transducers. You can connect the loud-
speakers in either a vertical or horizontal bi-amplified system
without requiring an additional electronic crossover.
VERTICAL BI-AMPLIFIED SYSTEM
Using two identical amplifier channels, remove the shorting straps
from the rear panel; then connect the loudspeakers as shown in
Figure 13.
Failure to remove the shorting straps when bi-amplifying may
damage some amplifiers.
NOTE: When using two dissimilar amplifiers, connect the loudspeakers
in a horizontal bi-amplified system (see the next section).
REVEL ULTIMA GEM
Owner’s Manual
15
red white
red white
GEM Rear
Connector
Panel
High Frequency Input
High Frequency Level (dB)
-1
Front 0 +.5 -.5 +1 -2
Rear 0 +4 0ff
Low Frequency Input Serial No.
In s ta ll S
tr a p s fo r
S in g le -w
ir e d
O p e ra tio n . In s ta ll S tr a p s fo r
S in g le -w ir e d
O p e ra ti o n . Note: Remove Straps for
Bi-wired or Bi-amplified Operation.
Northridge
California
Made in U.S.A.
Shorting Straps
Removed
Amplifier
(rear)
Ch. 1 Ch. 2
(one channel shown)
(one channel shown)
(Optional “Y” Adaptor)
INPUT INPUT
Pre-Amplifier
(rear) OUTPUT OUTPUT
High Frequency
Input
High Frequency Level
(dB)
-1
Front
0 +.5 -.5
+1
-2
Rear
0 +4 0ff
Low Frequency
Input
Serial No.
Northridge
California
Made in U.S.A.
WARNING
