15
3. Connect another pair of loudspeaker
wires to the C32 input connectors
labeled Low Frequency. Then, connect
the same pair of loudspeaker wires to
the same power amplifier output channel
that was selected in step 2.
VERTICAL BI-AMPLIFIED
CONNECTIONS
Vertical bi-amplified connections are made
between both pairs of C32 input connectors
and two separate power amplifier output
channels. These output channels can be on
one or two power amplifiers. However, if
two power amplifiers are used, these power
amplifiers must be identical. Vertical bi-
amplified connections are shown in Figure
12 (below.
Note
When making vertical bi-amplified
connections, both power amplifiers must
receive identical input signals from the
associated pre-amplifier. A “Y” adaptor is
required if the associated pre-amplifier
does not offer two connectors per output
channel.
(continued on next page)
OUTPUT
POWER
AMPLIFIER
C32
On Top Of
Monitor
Flush
Mounted
Stand
Mounted
Placement
Compensation
Low Frequency Input
Remove straps
for bi-wire
or bi-amp
High Frequency Input
High Frequency
Level (dB)
Revel
Northridge, California
Assembled in U.S.A.
Serial No.
-1
+1
+.5
-.5
0

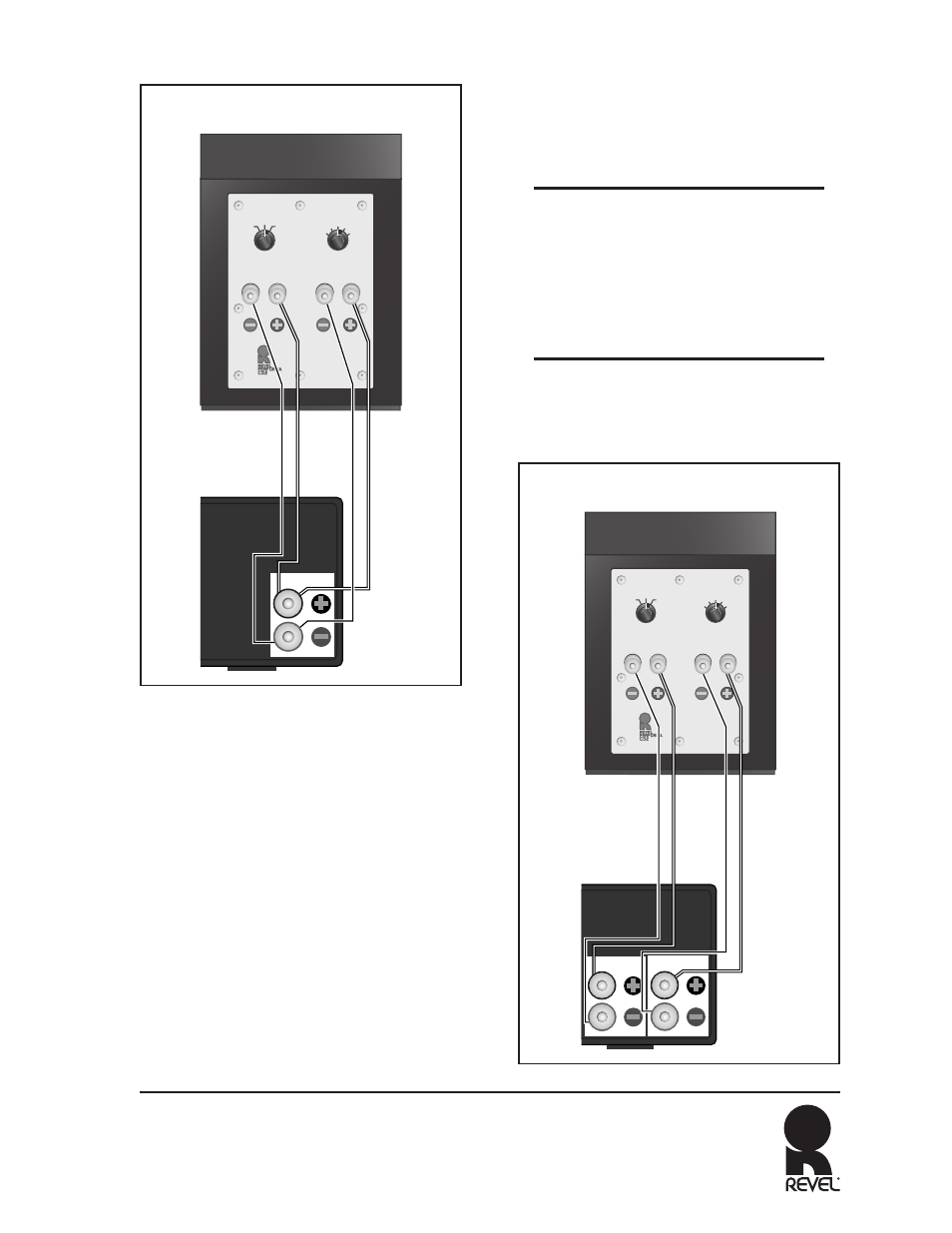

Figure 11: Bi-Wired Connections
OUTPUT 1
POWER
AMPLIFIER 1
OUTPUT 2
C32
On Top Of
Monitor
Flush
Mounted
Stand
Mounted
Placement
Compensation
Low Frequency Input
Remove straps
for bi-wire
or bi-amp
High Frequency Input
High Frequency
Level (dB)
Revel
Northridge, California
Assembled in U.S.A.
Serial No.
-1
+1
+.5
-.5
0
Figure 12: Vertical Bi-Amplified Connections
