18 REVEL Concerta S12
Owner’s Manual
To make dual-speaker mode connections
when a single S12 is used as discrete side
and rear loudspeakers:
1. Remove the shorting-straps from both
S12’s input connectors.
2. For the S12 to be placed on the right
wall, connect one pair of loudspeaker
wires to the top set of input connectors.
Then, connect the same pair of loud-
speaker wires to the right surround
amplifier output as shown in illustra-
tion A in Figure 19 (right).
Keep in mind that the S12 placed on
the right wall will be inverted.
3. Connect one pair of loudspeaker wires
to the bottom set of input connectors.
Then connect the same pair of loud-
speaker wires to the right rear amplifier
output as shown in illustration A in
Figure 19 (right).
4. For the S12 to be placed on the left
wall, connect one pair of loudspeaker
wires to the top set of input connectors.
Then, connect the same pair of loud-
speaker wires to the left surround
amplifier output as shown in illustra-
tion B in Figure 19 (right).
5. Connect one pair of loudspeaker wires
to the bottom set of input connectors.
Then connect the same pair of loud-
speaker wires to the left rear amplifier
output as shown in illustration B in
Figure 19 (right).
Note
Set the Surround Mode Configuration
control to Bipole for proper operation.
CAUTION
Failure to remove the shorting-straps
may damage the associated power
amplifier.

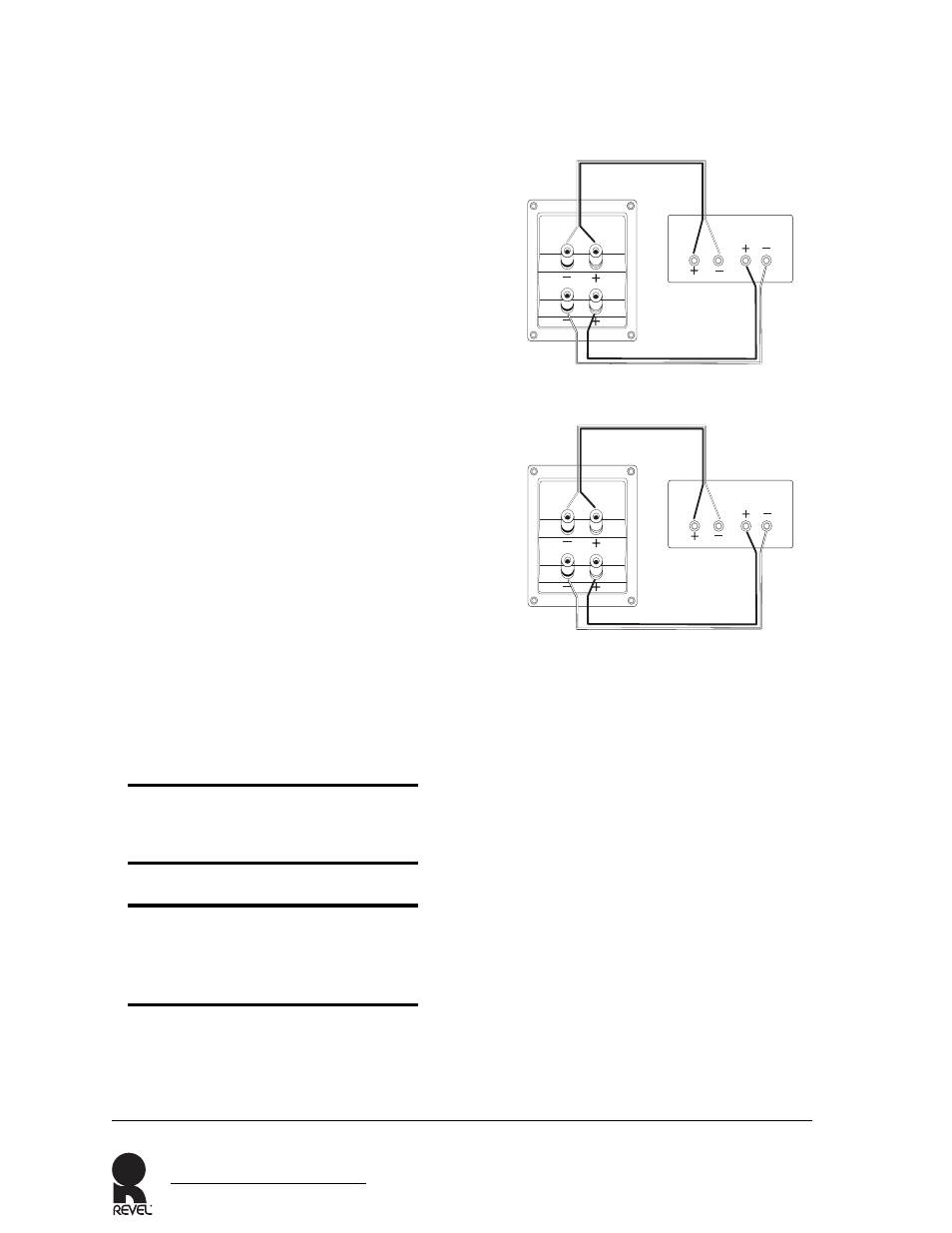

Figure 19: Dual-Speaker Mode Connection for a
single S12 used as discrete side and rear channels
S12
Right Wall
S12
Left Wall
Amplifier
Amplifier
Right Surround
Right Rear
Left Surround
Left Rear
B
A
The S12 placed on the
right wall should be
inverted! Be sure to
observe the proper
polarity when making
connections.
