Nipros PS-570 Operating Instruction - Manual (Page 32)

32

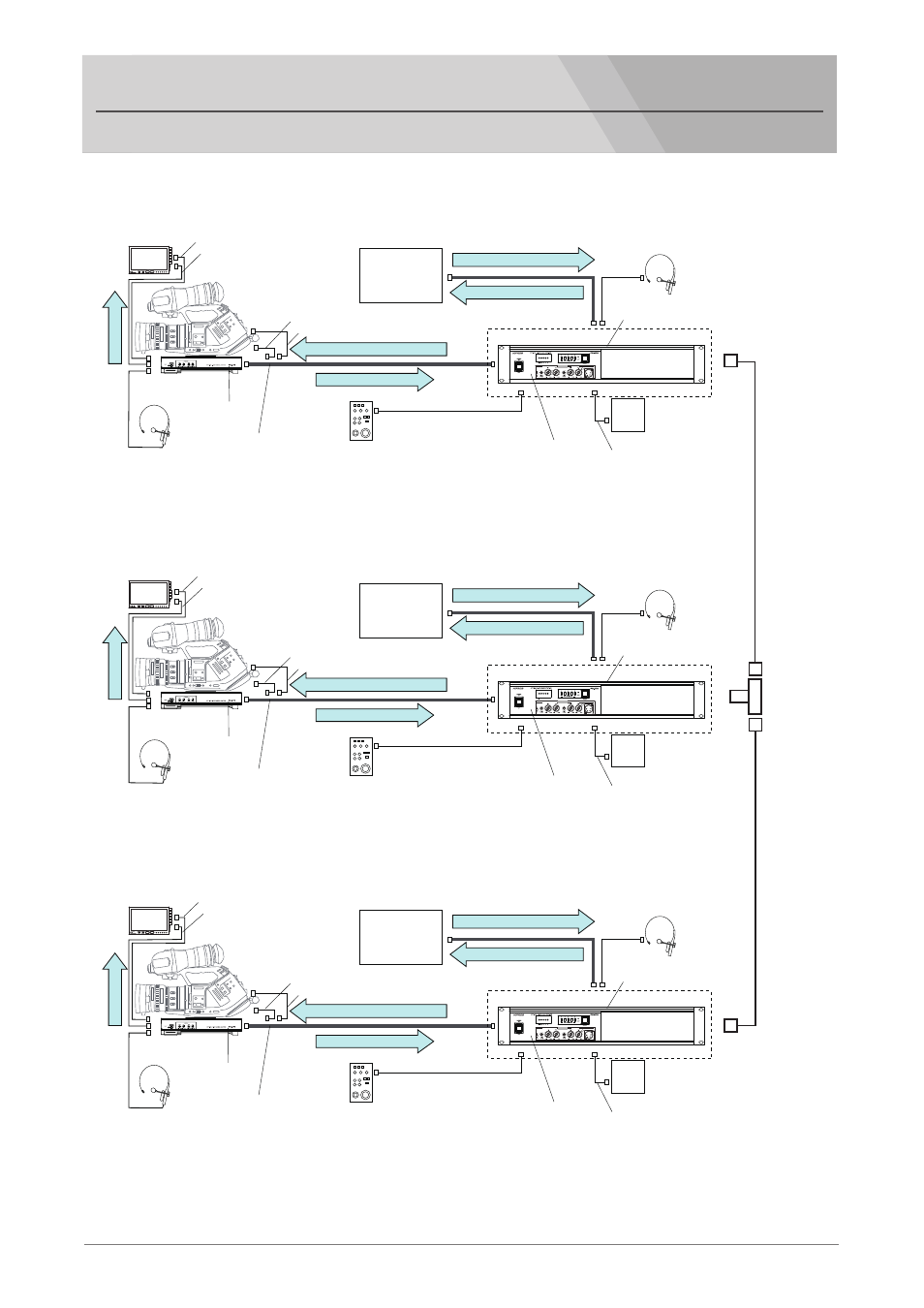

Multi-Camera System Connection Guide
BNC cable for
Incom connector
BNC cable for
Incom connector
Incom
Connector
Incom
Connector
●HD-SDI cable（BNC）
●PS-570
●Rack Mount kit HS-RA90
Blank panel
Switcher
●PMW-EX3
●PS-270
●Headset DL-400
●Headset DL-400
●Optical fiber cable（Max 2Km）
Tally/Return/Power/Incom/Genlock/Remocon
Tally/Return/Genlock
HD-SDI 2/SD-SDI
HD-SDI/SD-SDI/Incom
●6-Pin cable
VC-450
●Camera １
●Monitor
Tally/Return
●Camera remote controller
（Sony RM-B750/B150）
●Refelence sync signal
generator
●Refelence sync signal
Dedicated cable
(Supplied with a camera remote controller）
●Gen Lock cable（BNC）
●Gen Lock cable（BNC）
●Gen Lock cable（BNC）
T-type BNC
Connector
●HD-SDI cable（BNC）
●PS-570
●Rack Mount kit HS-RA90
Blank panel
Switcher
●PMW-EX3
●PS-270
●Headset DL-400
●Headset DL-400
●Optical fiber cable（Max 2Km）
Tally/Return/Power/Incom/Genlock/Remocon
Tally/Return/Genlock
HD-SDI 2/SD-SDI
HD-SDI/SD-SDI/Incom
●Camera 2
Tally/Return
●Camera remote controller
（SONY RM-B750/B150）
●Refelence sync signal
generator
●Refelence sync signal
Dedicated cable
(Supplied with a camera remote controller）
●HD-SDI cable（BNC）
●PS-570
●Rack Mount kit HS-RA90
Blank panel
Switcher
●PMW-EX3
●PS-270
●Headset DL-400
●Headset DL-400
●Optical fiber cable（Max 2Km）
Tally/Return/Power/Incom/Genlock/Remocon
Tally/Return/Genlock
HD-SDI 2/SD-SDI
HD-SDI/SD-SDI/Incom
●Camera 3
Tally/Return
●Camera remote controller
（SONY RM-B750/B150）
●Refelence sync signal
generator
●Refelence sync signal
Dedicated cable
(Supplied with a camera remote controller）
COLOR INPUT RGB MARKER MONO 16:9 4:3 PEAKING
●Monitor
COLOR INPUT RGB MARKER MONO 16:9 4:3 PEAKING
●Monitor
COLOR INPUT RGB MARKER MONO 16:9 4:3 PEAKING
Optical Fiber Studio System NIPROS PS−270 & PS−570
4W I/O EXT LINE (4W I/O) INTERCOM HEADSET
4W I/O
EXT LINE (4W I/O) INTERCOM HEADSET
4W I/O EXT LINE (4W I/O) INTERCOM HEADSET
●BNC cable
●6-Pin cable
VC-450
●BNC cable
●6-Pin cable
VC-450
●BNC cable
