Nipros PS-570 Operating Instruction - Manual (Page 18)

18

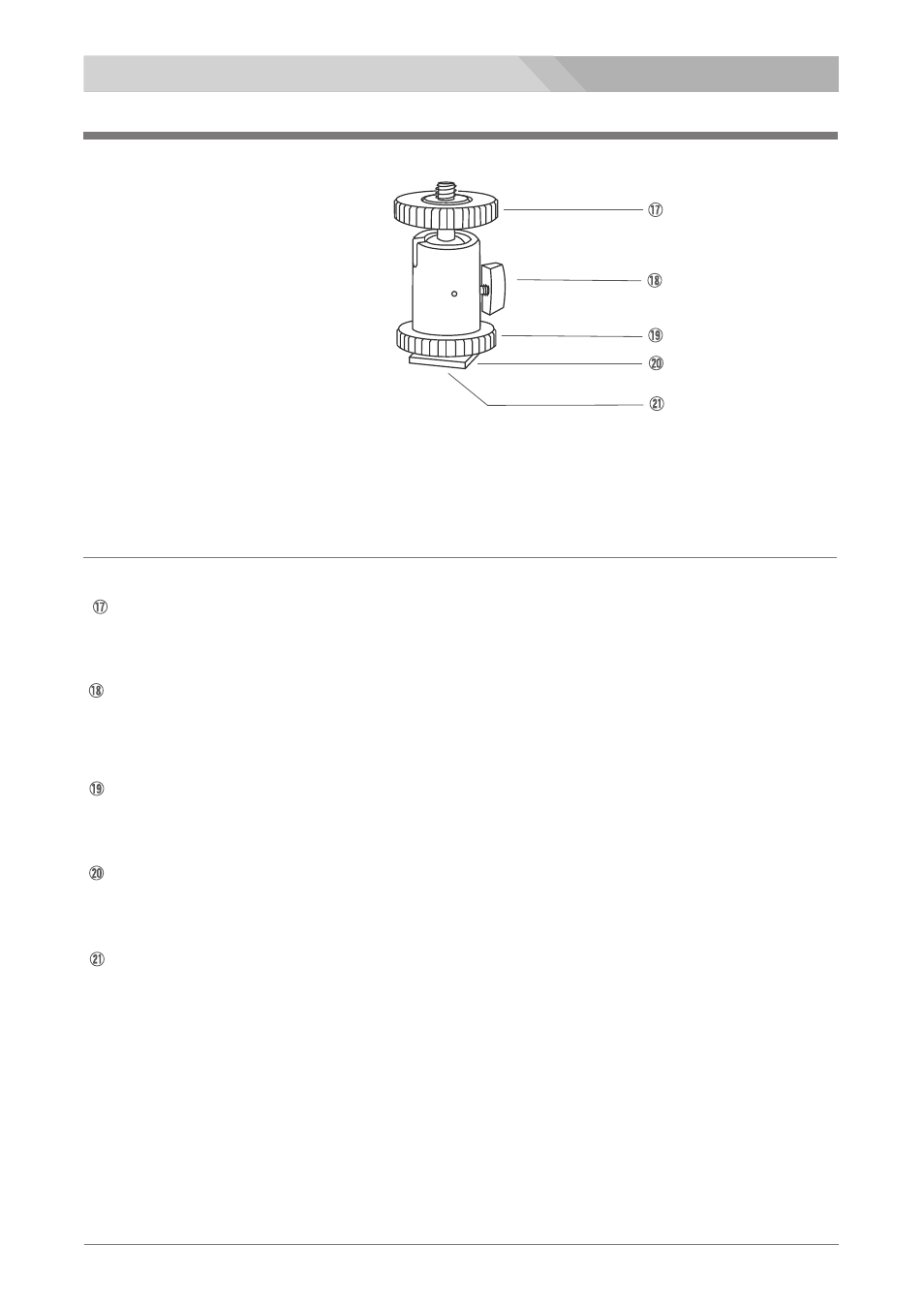

Universal Head
Monitor Lock Screw(1/4 inch)
Angle Adjustment Knob
Slide-Shoe
1/4 inch Screw Hole
Slide-Shoe Lock Knob
モニター固定ネジ
角度調節ノブ
スライドシュー固定ノブ
スライドシュー
1/4インチネジ穴
Used to fix the monitor.
Used to adjust the monitor position to any angle so that the display can be
watch well.
Used to fix the Slide Shoe to a camera accessory shoe.
Slide into a camera accessory shoe.
Used to be fitted up with a 1/4 inch camera screw (male).
When mounted on the camera with the 1/4 inch screw hole(female), install
supplied 1/4 inch male-male screw adaptpr and fitted up with the camera.
HDMI/HD Component Monitor LVM-89W/Universal Head LVM-89W 各部名称と働き
