Provide 120 Volt AC primary power.
Do not dim the fixture through a dimming circuit.
If powering the fixtures through a dimmer board, set the dimmer profile to
non-dim.
Load Considerations:
Kino Flo ballasts are not power factor corrected. They will draw double the
current on the neutral from what is being drawn on the two hot legs. On large
installations it may be necessary to double your neutral run so as not to
exceed your cable capacity.
IMAGE 80, 40 and 20 DMX Fixtures may be operated manually with the
Manual Lamp Selector Dial. The Dial enables you to turn lamps on and off
with an “inside-out” pattern (i.e., if all lamps are on, the outside tubes will turn
off first).

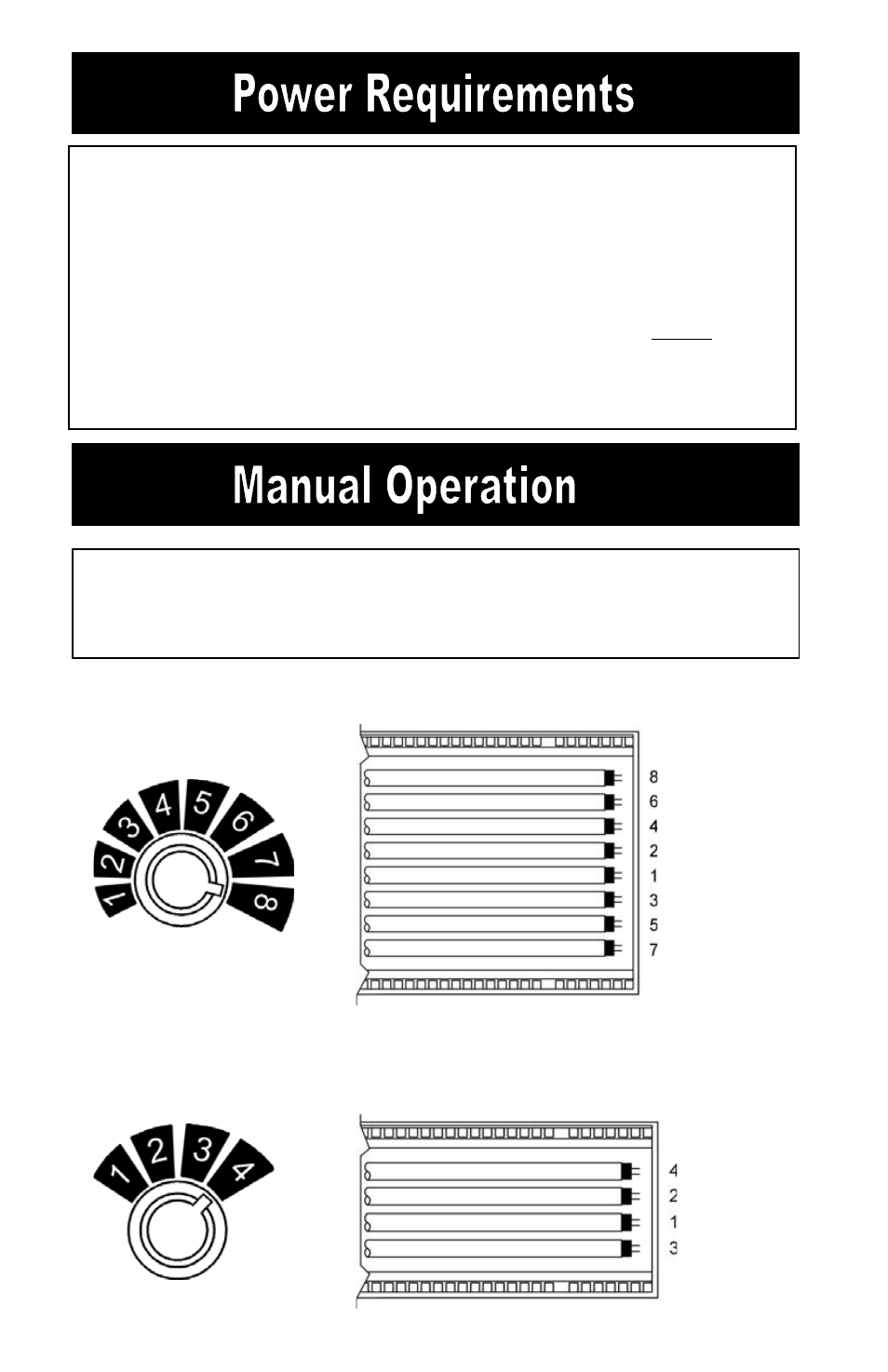

DMX Image 80 Switching
DMX Image 40 Switching
6
