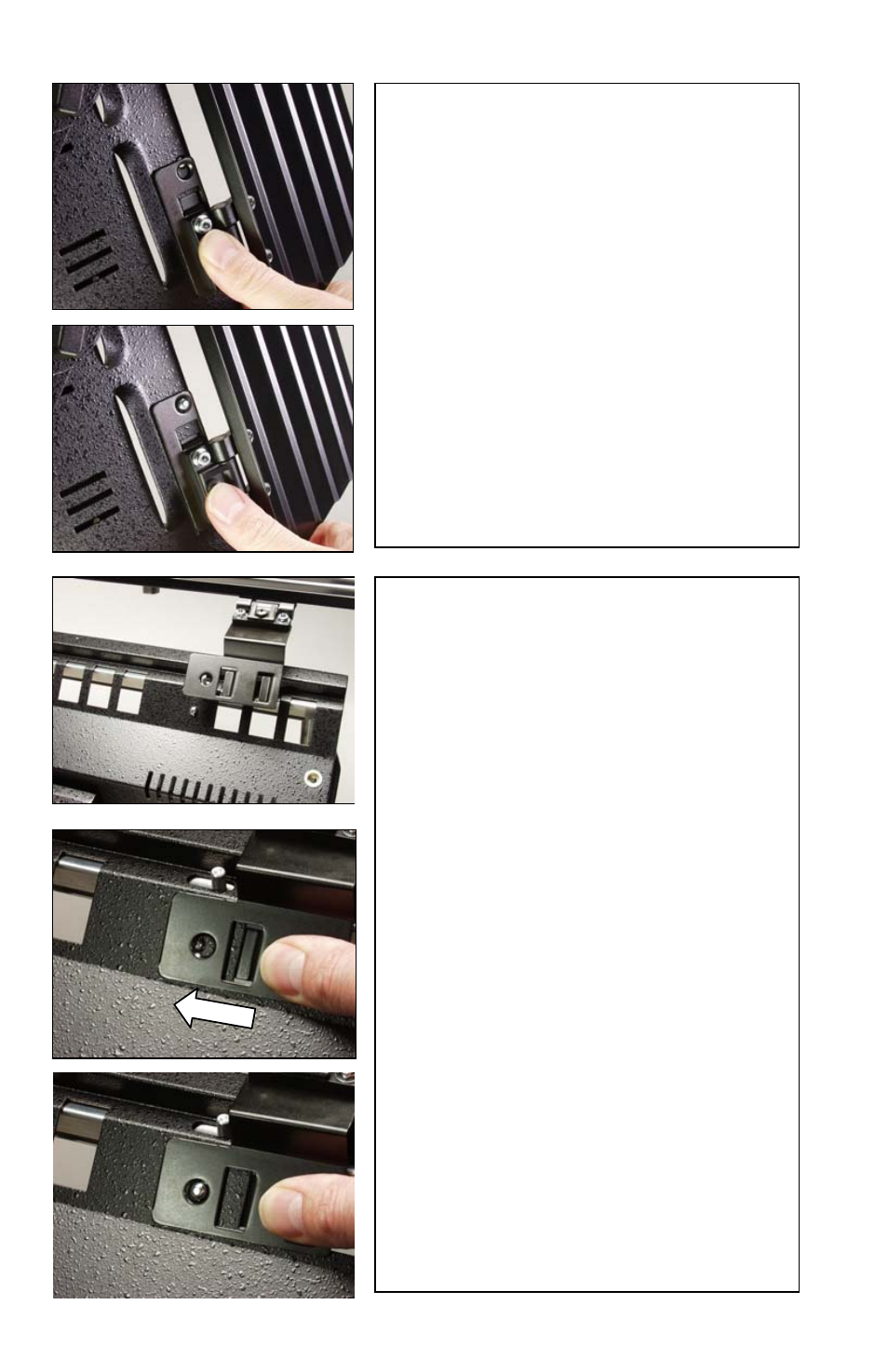

2. Press the tabs of both
brackets into the square
receptacles.
3. Slide the two brackets up until
the silver lock pin snaps into
place.
4. To release the Barndoor,
press the Lock Pin down and
slide the bracket in reverse.
1. For the Top and Bottom
Doors, align the two hinge
bracket tabs with the two square
vents closest to the Silver Lock
Pins.
2. Press the brackets down into
the vent and slide them over to
engage the Lock Pins with the
hole in the bracket.
3. To remove the Barndoor,
press down on the two Lock
Pins and slide the brackets
back.
