Page 6

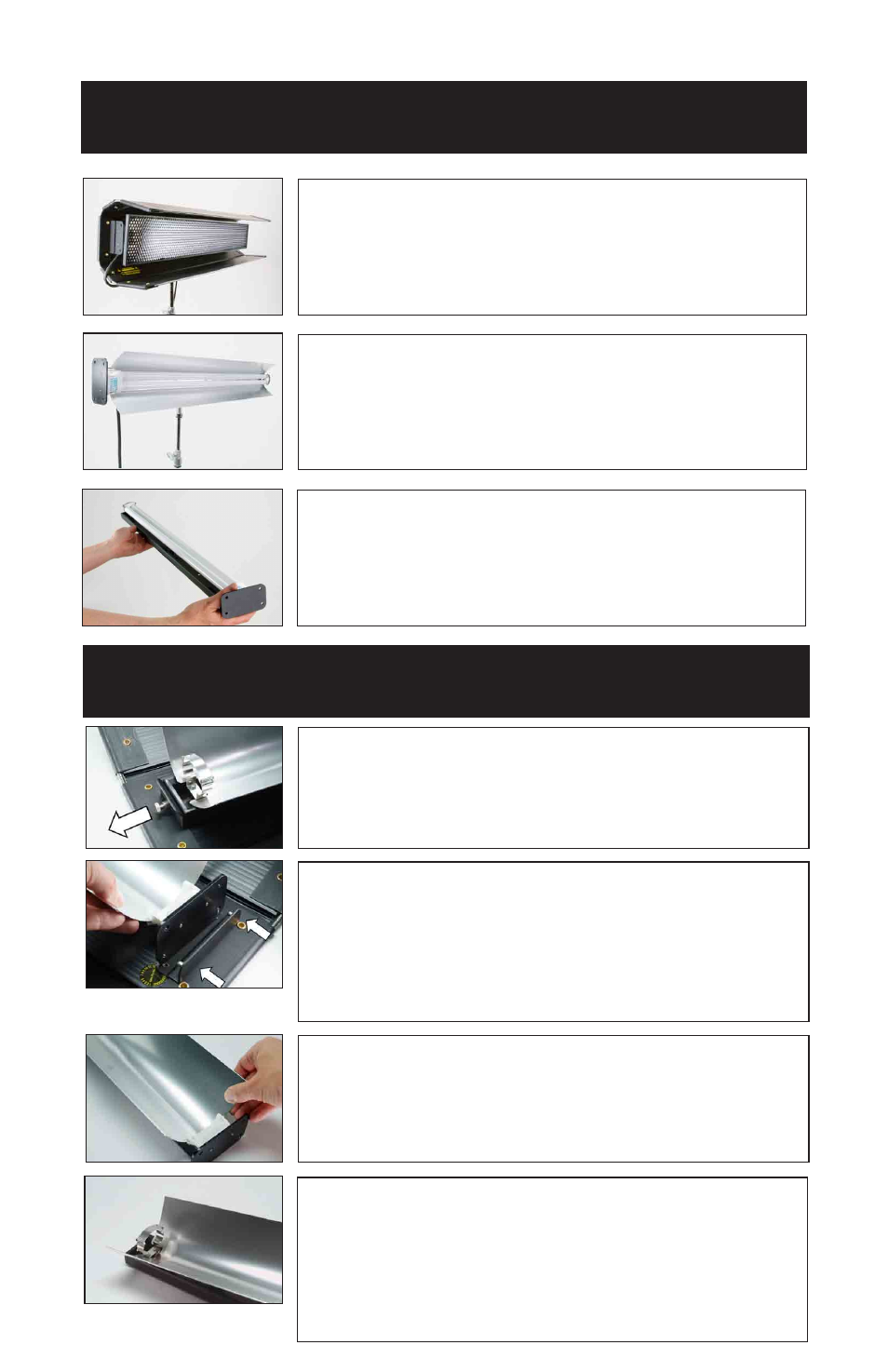

Operates 3 Methods

1) Complete Vista Single Fixture w/ Louver

2) Vista Single Harness w/ Reflector

(Plastic shell removed)

3) Vista Single Harness only

Fixture - Assembly/Disassembly

To remove harness from plastic fixture,

pull the retractable locking pin on the fixture.

Slide the harness base away from harness

alignment pins.

Note: When placing harness in fixture, align the

harness base first before centering locking pin.

The reflector is held in place with velcro fasten-

ers. To remove the reflector, lift up from the

lamp base side.

To re-attach the reflector to the lamp harness,

first insert the narrow indent of the reflector

under the lamp clip. The copper grounding

spring leaf should make good contact with the

reflector. Then affix to lamp base side.
