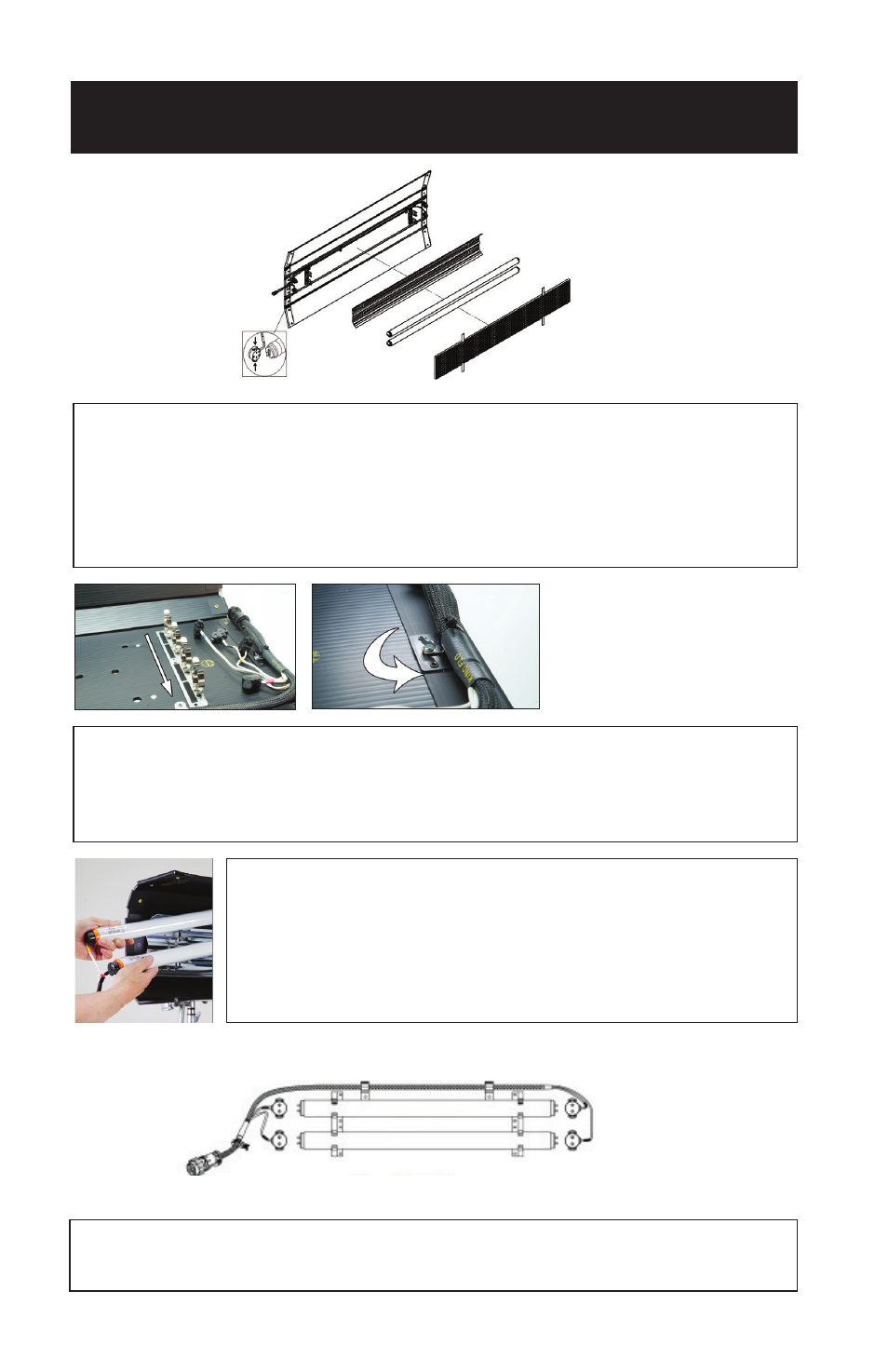

Fixture Assembly
The Mega Double and Single fixtures are comprised of two removable Louvers,
a Reflector and a Lamp Harness. The Louvers and Reflector are held in place with
Velcro fasteners. The Lamp Harness is secured by means of a ¼ turn fastener and
two clips.
Note: The 8ft fixtures include two 4ft louvers; the 6ft fixtures include two 3ft louvers.
To Release the Lamp Harness
Remove the harness from 2 clips located under the reflector. Rotate the ¼ turn
fastener clockwise to release harness.
The Mega Double Harness wiring is color-coded. The same color-code must match at
each end of the lamp for proper operation.
The lamps can operate independent of the fixture allowing them to
be built into sets or custom soft boxes or hand-held as a single tube
for an eye-light.
WARNING: Always use safety-coated lamps to avoid injury if lamp
breaks.
Double Harness
Lamp Harness Color Codes
Red
Yellow
4
(x2)
