Watts 77G-SS User Manual
Series 77f-ss, 77g-ss, Lead free, For commercial and industrial applications

For Commercial and Industrial Applications
ES-77F-SS/77G-SS
Job Name –––––––––––––––––––––––––––––––––––––––––––
Contractor ––––––––––––––––––––––––––––––––––––––––––––
Job Location –––––––––––––––––––––––––––––––––––––––––
Approval –––––––––––––––––––––––––––––––––––––––––––––
Engineer –––––––––––––––––––––––––––––––––––––––––––––
Contractor’s P.O. No. ––––––––––––––––––––––––––––––––––
Approval –––––––––––––––––––––––––––––––––––––––––––––
Representative ––––––––––––––––––––––––––––––––––––––––
Series 77F-SS, 77G-SS Stainless Steel Strainers are light-
weight, fabricated wye-pattern strainers designed to remove
dirt and other debris from fluid systems. A simple cover and
coupling design permits easy cleaning or replacement of
the screen.
Features
• 304 stainless steel body exhibits superior corrosion resis-
tance compared to cast iron; eliminates casting porosity
problems; complies with NSF 61 and FDA requirements
• 50% lighter than cast iron strainers, reducing handling and
installation equipment costs
• Lead Free construction complies with California Prop. 65
and proposed Federal Government lead-free standards
• Single, two-bolt, grooved style cover provides quick and
easy access, saving disassembly/assembly time
• Screen retainer cover is tapped for strainer clean out
by opening a blow-off valve or removing the standardly
furnished closure plug
Materials
Body:
304 stainless steel, ASTM A-312
Flanges:
Zinc-plated, ASTM A – 36 carbon steel
Cover:
304SS sizes 6", 8", 10" (150, 200,
250 mm); ductile iron sizes
2
1
/
2
" – 5" and 12" (65 – 125, 300mm);
epoxy coated ductile iron sizes
2
1
/
2
" – 5" and 12" (65 – 125, 300mm)
on FDA models
Cover Gasket:
EPDM, ambient to 150°F (66°C)
Grooved Coupling: Ductile iron, ASTM A-536
Bolts:
Heat treated (SAE J-429) steel,
ASTM B-633
Nuts:
Heat treated (SAE J-429) steel,
ASTM B-633
Plug:
Brass, ASTM B-584
Screen:
304 stainless steel, ASTM A-276

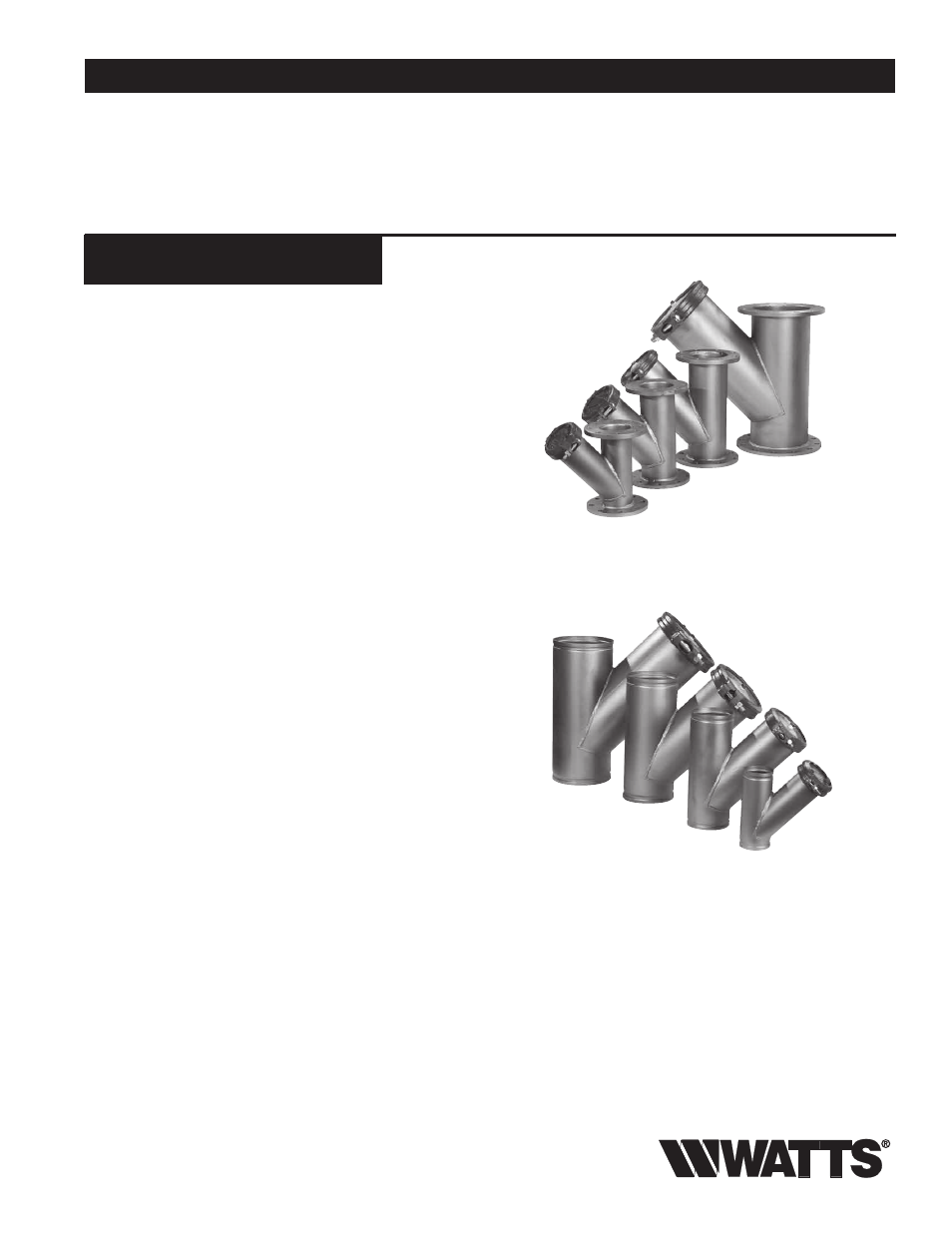

No. 77F-SS
(Flanged)
Series 77F-SS, 77G-SS
Stainless Steel Wye-Pattern Flanged
and Grooved Strainers
Sizes: 2
1
/
2
" – 12" (65 – 300mm)
No. 77G-SS
(Grooved)
Specifications
Strainer shall be installed where indicated on the plans to
remove dirt and other debris from fluid system. Strainer shall
be manufactured from 304 stainless steel and be lead free.
Strainer shall be Watts Regulator Company Series 77F-SS
(flanged ends) or 77G-SS (grooved ends).
Watts product specifications in U.S. customary units and metric are approximate and are provided for reference only. For precise measurements,
please contact Watts Technical Service. Watts reserves the right to change or modify product design, construction, specifications, or materials with-
out prior notice and without incurring any obligation to make such changes and modifications on Watts products previously or subsequently sold.
LEAD FREE
*
*The wetted surface of this product contacted by consumable
water contains less than one quarter of one percent (0.25%) of
lead by weight.
