Series 30, Well system relief valve, For commercial and residential applications

For Commercial and Residential Applications
ES-30
Job Name –––––––––––––––––––––––––––––––––––––––––––
Contractor ––––––––––––––––––––––––––––––––––––––––––––
Job Location –––––––––––––––––––––––––––––––––––––––––
Approval –––––––––––––––––––––––––––––––––––––––––––––
Engineer –––––––––––––––––––––––––––––––––––––––––––––
Contractor’s P.O. No. –––––––––––––––––––––––––––––––––––
Approval –––––––––––––––––––––––––––––––––––––––––––––
Representative ––––––––––––––––––––––––––––––––––––––––
IMPORTANT: INQUIRE WITH GOVERNING AUTHORITIES
FOR LOCAL INSTALLATION REQUIREMENTS

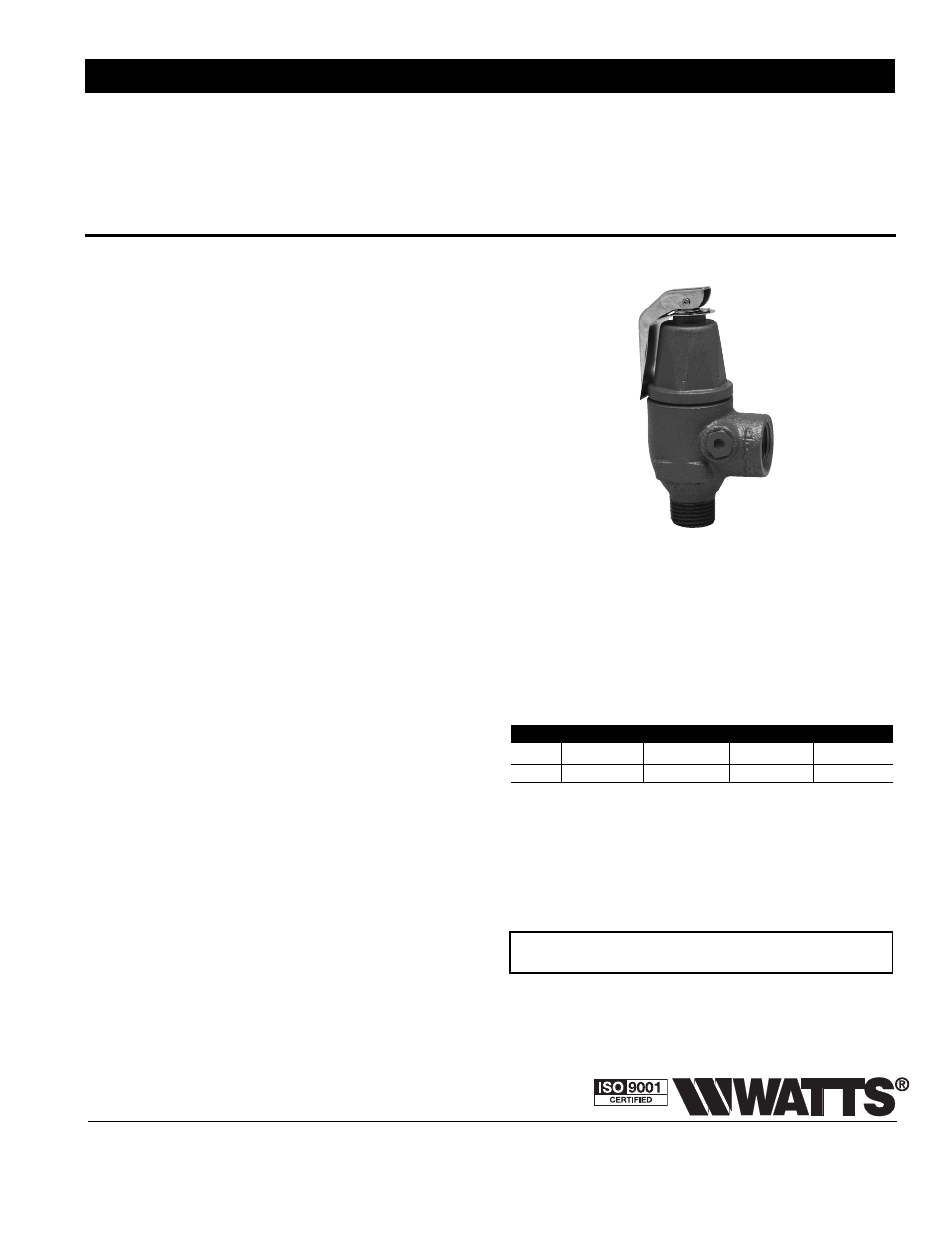

Series 30
Well System Relief Valve
Size:
1
⁄
2
" (15mm)
Series 30 Pressure Relief Valves for wells are used to protect
against excessive pressures in well systems. These relief
valves are not diaphragm actuated and are used for pres-
sure-relief service only. For adjustable non-lever diaphragm
actuated relief or control service, see Series BP30. Series 30
consist of a bronze body construction with NPT threaded
male inlet and NPT threaded female (drain) outlet connec-
tions, stainless steel spring, and test lever. The standard
pressure setting is 75psi (5.2 bar). Optional Settings of 100,
125, and 150psi (6.9, 8.6, and 10.3 bar) are also available.
Features
• Rugged bronze body
• NPT threaded male inlet connection
• NPT threaded female (drain) outlet connection
• Stainless steel spring
• Test lever available (Model 30L, N30L, 30L-Z1)
Models
30L – with test lever
N30- less lever
N30-L
30L-Z1
Pressure Ranges
30L - standard setting: 75psi (5.2 bar)
N30 - 5-25psi (0.3-1.7 bar)
N30L - 30-50psi (2.1-3.5 bar)
30L-Z1 – 20 gpm at 10 psi over pressure (85psi)
Model 30
The Watts products shown on this page are small type relief valves.
Construction of these products does not meet the (ANSI Z21.22)
nationally recognized applicable standard.
SIZE (DN)
HEIGHT
WIDTH
WEIGHT
Model
in.
mm
in.
mm
in.
mm
lbs.
gms.
30L
1
⁄
2
15
4
1
⁄
2
114
2
1
⁄
4
57
7
⁄
8
397
Materials
Body: Bronze
Spring: Stainless steel
Dimensions — Weight
ES-30 0645
