Parts List
The reverse osmosis system contains a replaceable treatment
component, critical for the effective reduction of total dissolved solids
and the product water shall be tested periodically to verify that the
system is performing properly

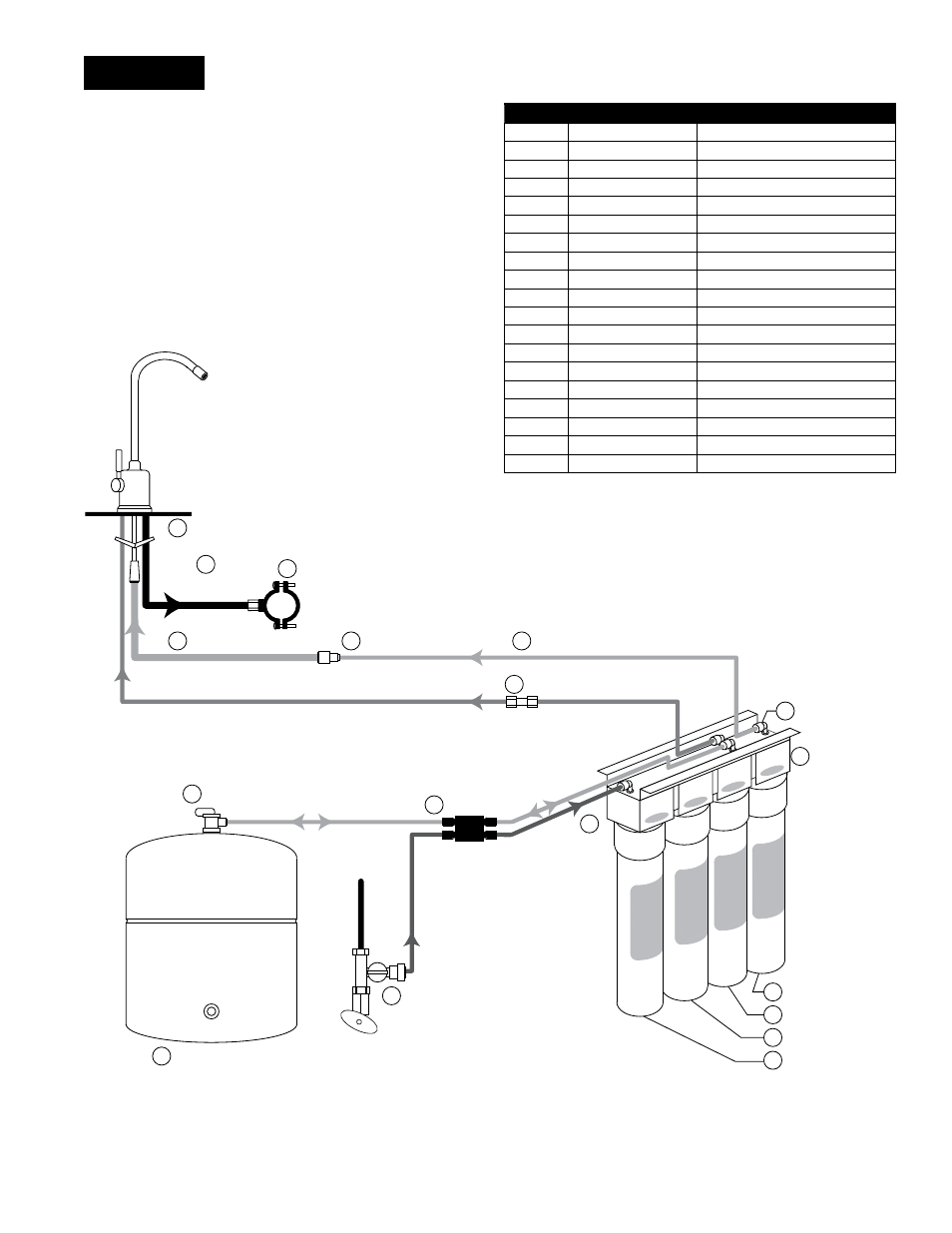

SHUT-OFF
VALVE
STORAGE TANK
MAIN WATER SUPPLY
SHUT-OFF VALVE
1/4˝ GREEN TUBE
(FEED WATER)
ADAPT-A-VALVE
1
TO
KITCHEN
SINK
1
2
3
4
1/4˝ RED TUBE - BRINE
1/4˝ BLUE TUBE - PERMEATE
3/8˝ BLUE TUBE
1/4˝ BLUE TUBE
TANK SHUT-OFF VALVE
DRAIN
SADDLE
13
FAUCET
12
15
2
Q.C. UNION-ADAPTER
10
9
3/8˝ BLACK TUBE
DRAIN
8
3 SEDIMENT FILTER
4 PRE-CARBON FILTER
5 RO-MEMBRANE
6 POST CARBON FILTER
7
17
16
18
1/4˝ x 1/4˝ UNION
19
14
iteM #
edp#
description
1
7300068
Adapt-A-Valve™
2
7300070
Automatic Shut-Off-Valve -
1
⁄
4
" QC
3
7100469
Sediment Filter
4
7100109
Carbon Filter
5
7100125
Reverse Osmosis Membrane
6
7100462
Post Carbon Filter
7
7300034
Elbow -
1
⁄
4
" QC X
1
⁄
4
" Stem
8
7100174
Storage Tank-3 Gal White
9
7300073
Tank Shut-Off Valve
10
7300041
Union Adapter -
1
⁄
4
" QC X
3
⁄
8
" QC
11
7300022
Flow Restrictor (not shown)
12
7100203
Airgap Faucet - Chrome
13
7300030
Drain Saddle -
3
⁄
8
"
14
7300066
1
⁄
4
" Green Tubing
15
7300089
3
⁄
8
" Black Tubing
16
7300065
1
⁄
4
" Blue Tubing
17
7300067
3
⁄
8
" Blue Tubing
18
7300054
Module
19
7300090
1
⁄
4
" X
1
⁄
4
' Union
