Dimensions – Weights
Model noMinAl tubing Size coil length bend RAdiuS Fluid cAPAcity PeR 100 Feet Pkg Wt.
ID OD
in. mm in. mm feet cm in. mm gal. ltr. lbs. kgs.
Red
WPSR06-500R 3 ⁄
8
10 1 ⁄
2
15 500 15240 4 102 0.53 2.01 31.75 14.4
WPSR08-300R 1 ⁄
2
15 5 ⁄
8
16 300 9144 5 127 0.96 3.65 23.5 10.7
Blue
WPSR06-500B
3 ⁄
8
10 1 ⁄
2
15 500 15240 4 102 0.53 2.01 31.75 14.4
WPSR08-300B 1 ⁄
2
15 5 ⁄
8
16 300 9144 5 127 0.96 3.65 23.5 10.7
18"
12 1 ⁄
2
"
Ridged Pipe*
1" dia. Min.
1 1 ⁄
2
" dia. Max.
1 3 ⁄
4
" dia.
Pipe bracket*
16"
Stud
Stud

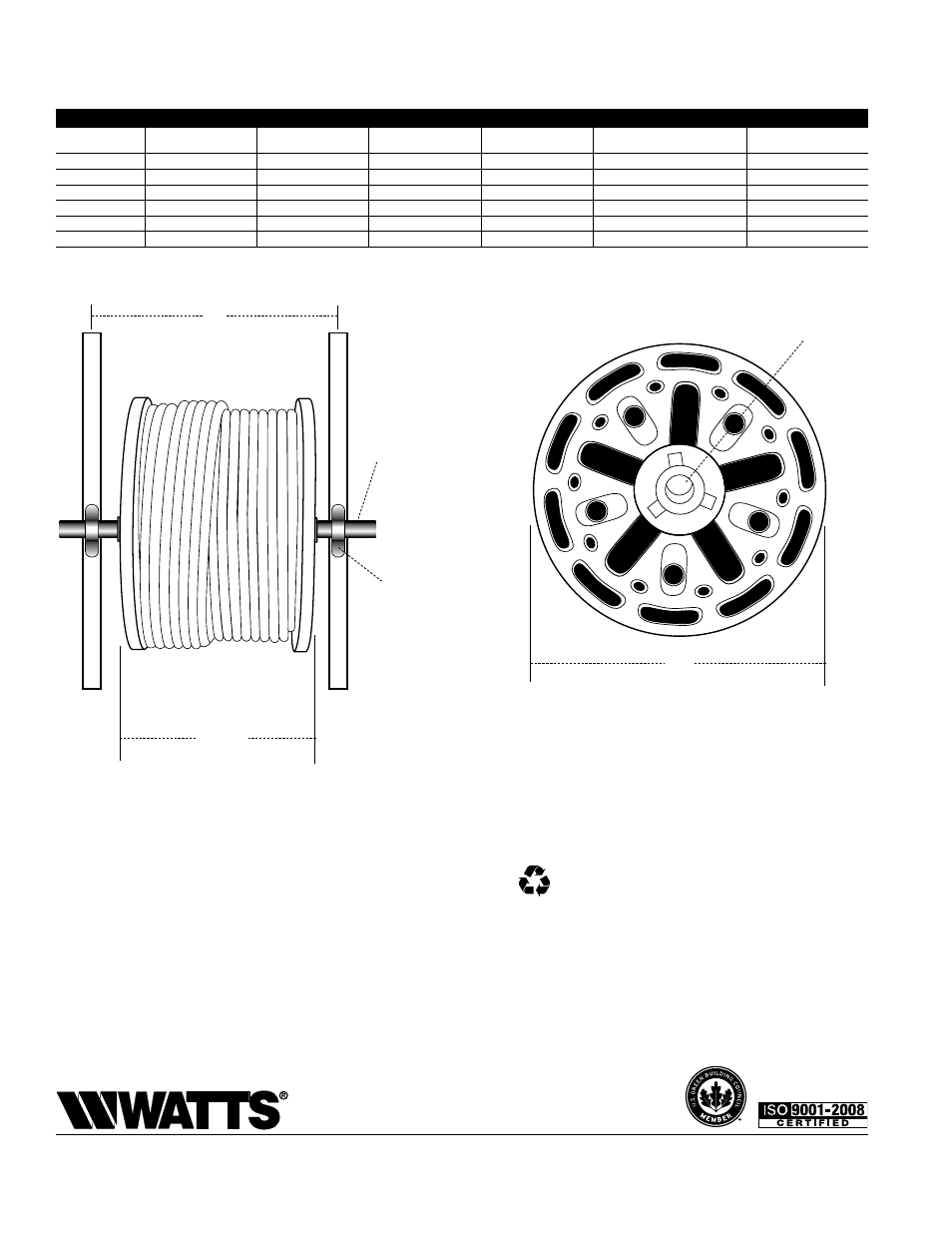

To secure Stud Reel for use, insert a ridged metal pipe or bar
(18" length minimum) through center hole of plastic reel. Secure
both ends of the axle to outside face of stud with ridged pipe
brackets. Uncoil PEX pipe as required.
Note: WaterPEX Stud Reels are made from HDPE plastic.
Please Recycle.
* Not Included
