Model
Number Fittings
&
Valves
GPD Pump
(H.P.)
Recovery
(Adjustable)
Membrane
Size
Membranes Feed Water
Required*
(GPM)
Typical
Rejection
Dimensions Ship
Wt.
(Lbs.)
R14-01-1WM SS 1800 1 15%-75% 4" x 40" 1 2.5 98% 41"x51"x18" 200
R14-01-BWM Brass 1800 1 15%-75% 4" x 40" 1 2.5 98% 41"x51"x18" 200
R14-02-1WM SS 3600 1 25%-75% 4" x 40" 2 5 98% 41"x51"x18" 250
R14-02-BWM Brass 3600 1 25%-75% 4" x 40" 2 5 98% 41"x51"x18" 250
R14-03-1WM SS 5400 1.5 35%-75% 4" x 40" 3 7.5 98% 41"x51"x18" 300
R14-03-BWM Brass 5400 1.5 35%-75% 4" x 40" 3 7.5 98% 41"x51"x18" 300
*At 50% recovery.
Feed water connection 1" FNPT
Product water connection (1800 & 3600 GPD) 1/2" tube
Product water connection (5400 GPD) 5/8" tube
Reject water connection (all R14 models) 1/2" tube
Feed water pressure requirement (minimum) 10 PSIG
Drain requirement (maximum) 10 GPM
Electrical requirement 230v/60hz
Amps (1800 & 3600 GPD) 6
Amps (5400 GPD) 9
Part Number Description
R2353-SD Product water float switch
R2288 Whole house option*
*Includes 300 gallon tank, product water float switch and repressurization
pump with built-in controls.
Specifications Options
Models
R-14 wall-mounted systems
Three models for flow rates to 5400 GPD,
available with brass and stainless steel fittings.
Fully assembled and ready for installation.
Standard features
• Stainless steel frame
• Stainless steel pressure vessels
• Pre-filter housing and cartridge, 10" Full-Flow
• Webtrol ® multi-stage centrifugal pump
• Automatic inlet valve
• Low-pressure shut-off with automatic restart
• Tank level input
• Pretreatment interlock input
• Adjustable recycle line
• Pre-filter pressure gauges
• Pump discharge pressure gauge (liquid filled)
• Flow meter for product water
• Flow meter for reject water
• Check valve for product water
• Sample valve for product water
• On / off switch

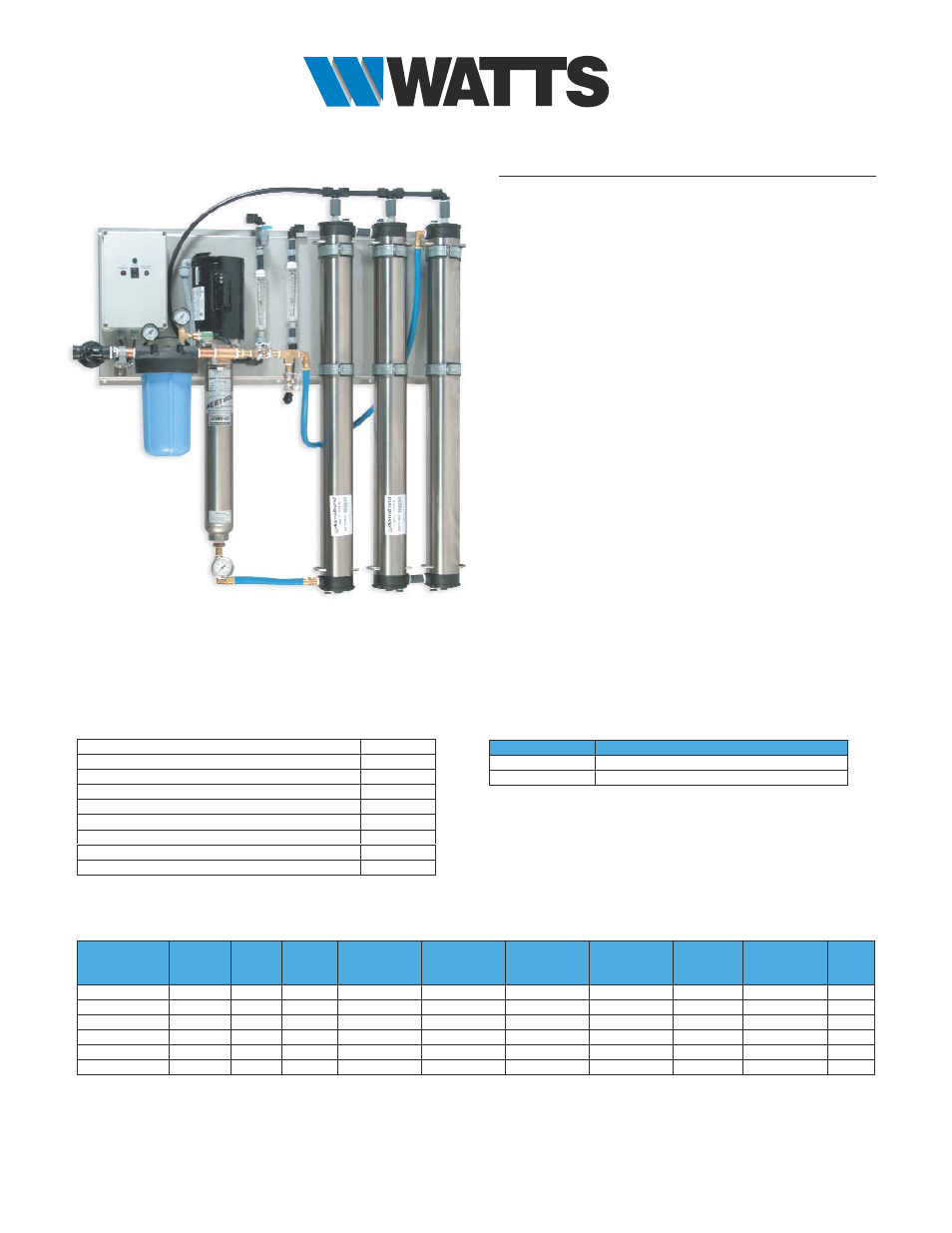

R14-03-BWM System
Notes: Performance specifications are based on 77°F feed water, 3 SDI or less, TDS below 1000 and pH of 8. Please see water temperature
conversion charts to determine actual production rate for each installation. Chlorine reduction and other pretreatment may be required.
Membrane rejection rates are based on membrane manufacturer's specifications. Pre-filter is Flow-Pro
® FPMB-BB5-10 melt blown cartridge.
Systems are designed for use with municipal and well water.
®
