Watts TCA-440 User Manual
Tca-440
Tag:
ES-WD-TCA-440 0803
TCA-440
SPECIFICATION: Watts Drainage TCA-440 epoxy coated wall mounted concealed arm track lavatory carrier with
heavy gauge steel cross plate and back-up mounting plates, sliding adjustable arm brackets, adjustable epoxy coated
cast iron arms with leveling screws and basin locking device, and plated hardware.

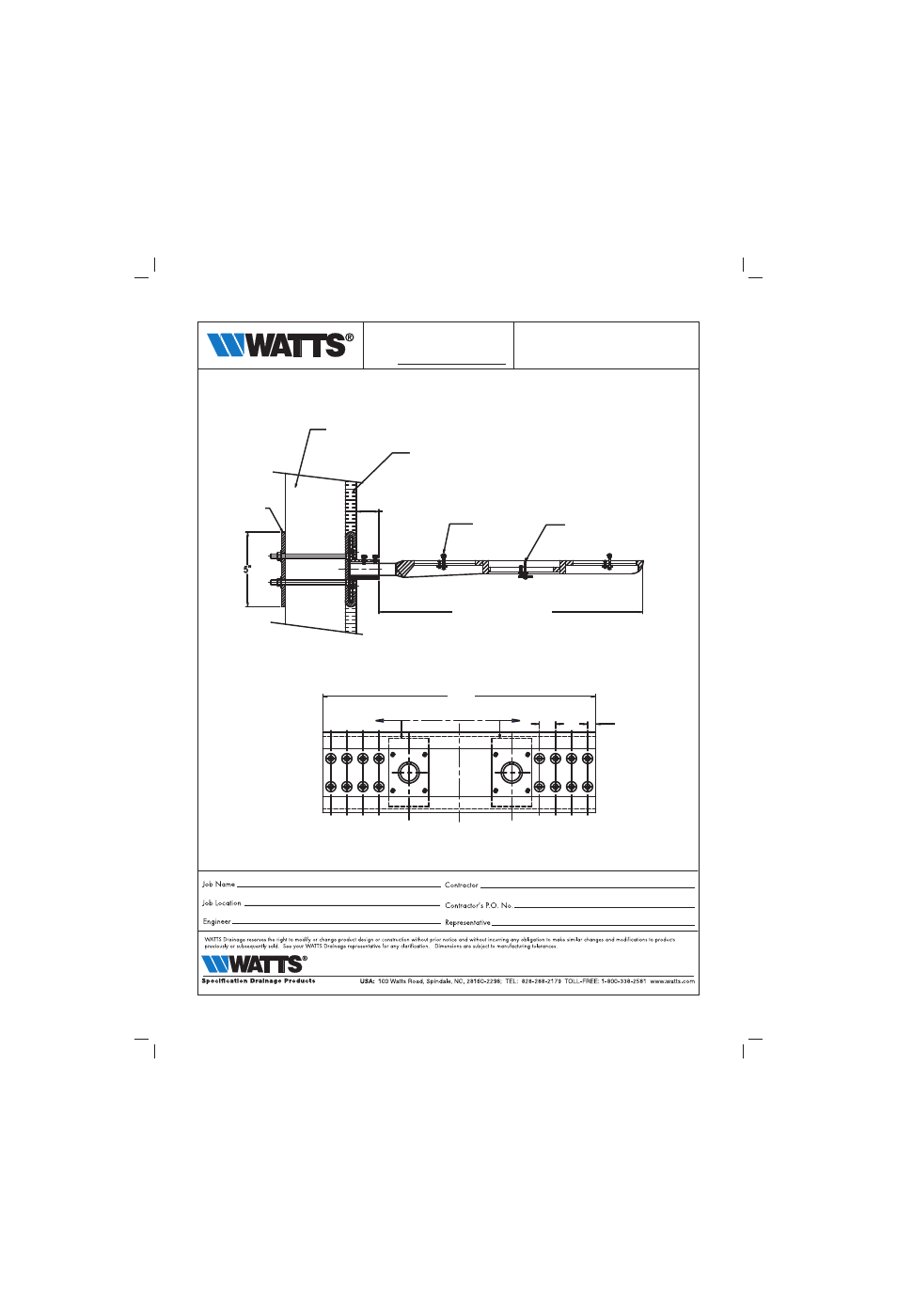

TCA-440
Wall Mounted Concealed Arm
"Track" Lavatory Carrier
FINISHED WALL
MIN. 3/4" THICK
LEVELING SCREWS
APPROX. 1 1/2"
STRUCTURAL WALL
BACK PLATE
DEPENDENT UPON FIXTURE
SLIDE FOR HORIZONTAL ADJUSTMENT
17"
1"
1/2"
LOCKING DEVICE
