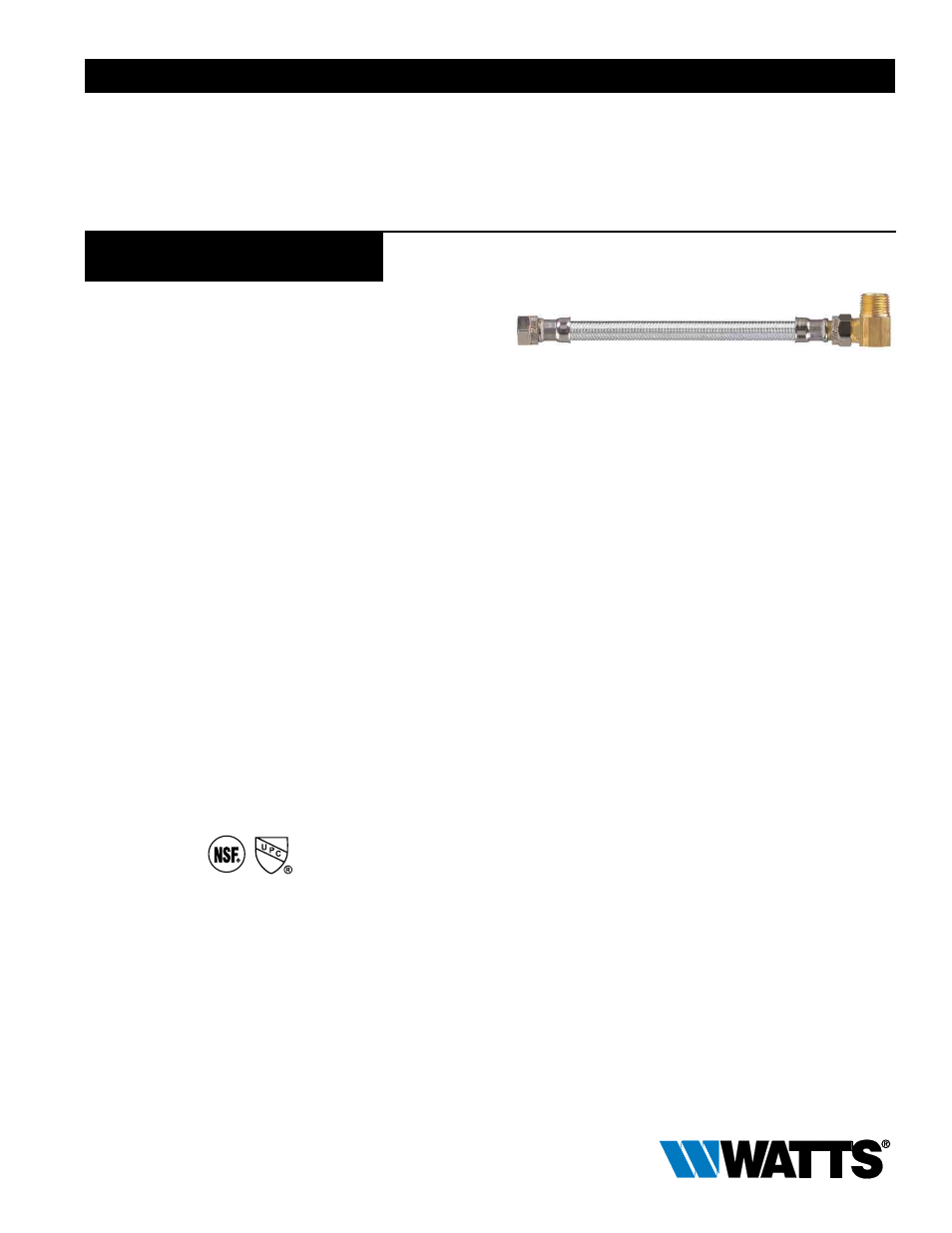

Models

LFCDC-S-CE - Supplied with a plated, solid brass nut com-

pression end fittings at both ends of the flex-

ible connector and a brass male iron pipe

thread elbow fitting.

LFCDC-S-FE - Supplied with a plated, solid brass nut

female iron pipe thread connector at one

end of the flexible connector and a brass

male iron pipe thread elbow fitting attached

to compression end fitting at the other end

of the flexible connector.

For Commercial and Residential Applications

ES-LFCDC-S

Series LFCDC-S

Braided Stainless Steel

Water Supply Connectors for

Dishwashers

Sizes:

3

8

" to

3

4

" (10 to 19mm)

Series LFCDC-S Braided Stainless Steel Water Supply

Connectors for Dishwashers are used in residential and com-

mercial applications, specifically for hookups to the dishwasher

water supply. These Lead Free* connectors provide full flow

capacity, protection from vibration and bursting under extreme

pressure surges, and superior resistance to chlorinated water.

Series LFCDC-S connectors consist of PVC tubing jacket-

ed with braided stainless steel and come with elbow fittings.

Various end connections are available. The LFCDC-S features

Lead Free* construction to comply with Lead Free* installation

requirements.

Features

• Available in lengths: 48”, 60”, and 72”

(900, 1500, or 1800mm)

• Tubing

– PVC body

– Braided stainless steel jacket

• Brass compression end fittings (Model LFCDC-S-CE only)
• Brass female iron pipe threaded connectors

(Model LFCDC-S- FE only

• Brass male iron pipe thread elbow fittings

Standards

NSF Listed
UPC Listed

LFCDC-S-CE

Watts product specifications in U.S. customary units and metric are approximate and are provided for reference only. For precise measurements,
please contact Watts Technical Service. Watts reserves the right to change or modify product design, construction, specifications, or materials with-
out prior notice and without incurring any obligation to make such changes and modifications on Watts products previously or subsequently sold.

LEAD FREE

*

Job Name –––––––––––––––––––––––––––––––––––––––––––

Contractor ––––––––––––––––––––––––––––––––––––––––––––

Job Location –––––––––––––––––––––––––––––––––––––––––

Approval –––––––––––––––––––––––––––––––––––––––––––––

Engineer –––––––––––––––––––––––––––––––––––––––––––––

Contractor’s P.O. No. –––––––––––––––––––––––––––––––––––

Approval –––––––––––––––––––––––––––––––––––––––––––––

Representative ––––––––––––––––––––––––––––––––––––––––

*The wetted surface of this product contacted by consumable

water contains less than 0.25% of lead by weight.

Pressure-Temperature

Maximum Working Pressure: 125psi (8.6 bar)
Maximum Temperature: 180°F (82°C)

Materials

Tubing:
Body: PVC
Jacket: Stainless steel
Fittings: Brass
