Residential water quality improvement products

Hydro-Safe

®

UV Disinfection Systems

High capacity models for flow rates from 40 to 800 GPM.

Features & Benefits

UV intensity monitor detects 254 nm wave lengths and displays results on panel meter

Audible and visual indicators to assure optimum performance

Elapsed time meter measure running time for peak lamp output

Separate NEMA 4 modified control panel for protection from the elements

Flange connections (150 lb. raised face)

Viewing port for operational monitoring

Dry contact output for solenoid valve, horn and other electrical components

Easy servicing (no need to disconnect water flow to change UV lamps)

Removable reactor chamber flanges for easy access and cleaning

High chamber temperature alarm provides audible and visual alarm if unit overheats

Open end quartz sleeves & stainless steel nuts for optimum operating temperature & sealing

99.99% destruction of bacteria and viruses at rated flow rates

Electronic ballast with internal damage limiting circuitry

Polished, 316L stainless steel reactor chamber

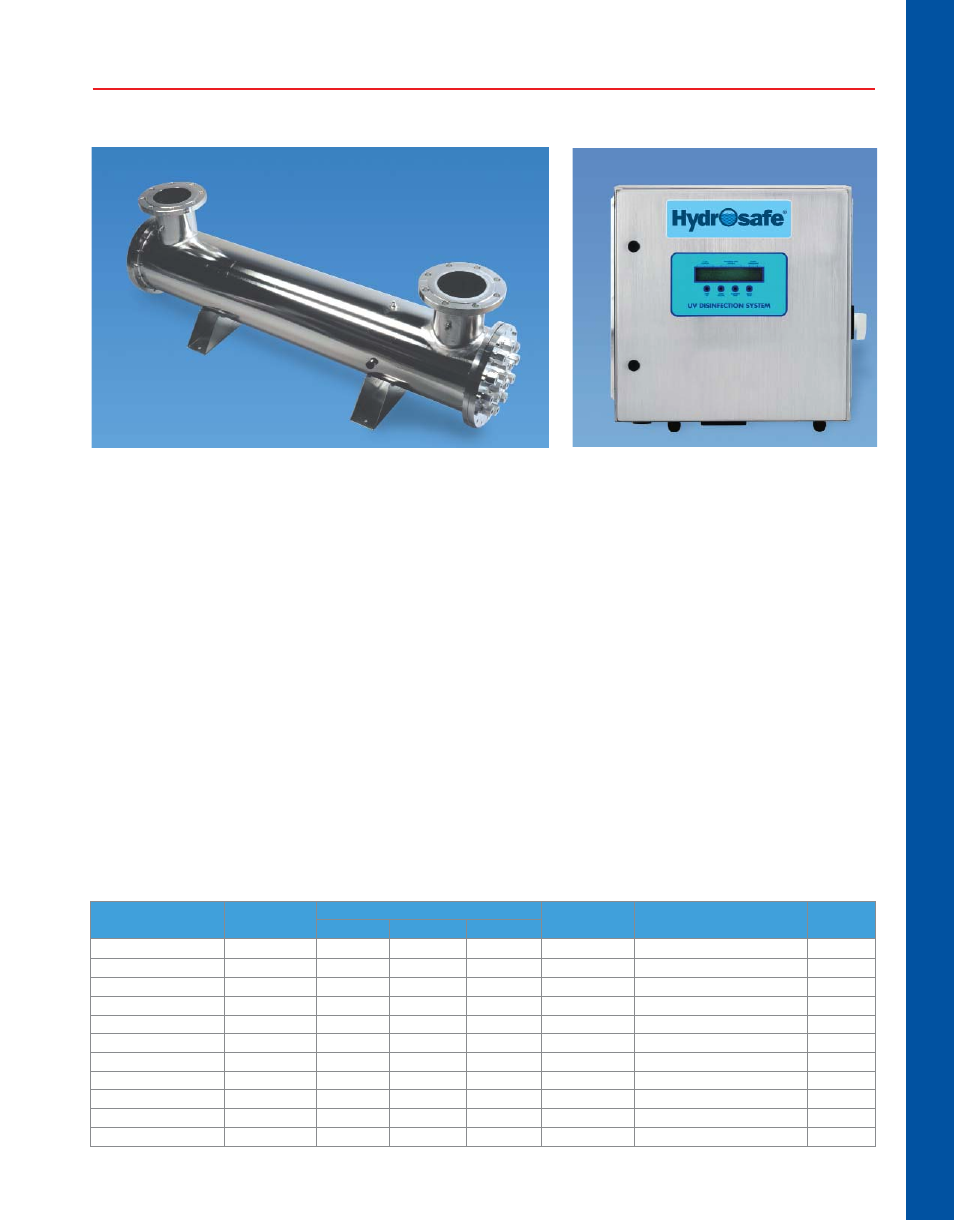

Hydro-Safe

®

High Capacity UV System

Controller

Hydro-Safe

®

high capacity stainless steel UV systems (40-225 GPM)

Model No.

Flow Rate

Dimensions

Pipe Size

Electrical

Ship

(GPM)

Width

Height

Length

(MNPT)

Wt.

HSUV-SS-40-1

40

8"

11"

38"

1-1/2" NPT

110-130 v / 50-60 hz

80

HSUV-SS-40-2

40

8"

11"

38"

1-1/2" NPT

200-250 v / 50-60 hz

80

HSUV-SS-65-1

65

10"

13"

38"

2" NPT

110-130 v / 50-60 hz

123

HSUV-SS-65-2

65

10"

13"

38"

2" NPT

200-250 v / 50-60 hz

123

HSUV-SS-100-1

100

10"

13"

38"

2" NPT

110-130 v / 50-60 hz

124

HSUV-SS-100-2

100

10"

13"

38"

2" NPT

200-250 v / 50-60 hz

124

HSUV-SS-225-1

225

10"

16-1/2"

68"

4" Flange

110-130 v / 50-60 hz

150

HSUV-SS-225-2

225

10"

16-1/2"

68"

4" Flange

200-250 v / 50-60 hz

150

HSUV-SS-400-2

400

18"

21"

68"

6" Flange

200-250 v / 50-60 hz

NA

HSUV-SS-600-2

600

20"

29-1/2"

68"

8" Flange

200-250 v / 50-60 hz

NA

HSUV-SS-800-2

800

25

33"

68"

8" Flange

200-250 v / 50-60 hz

NA

Note: All systems rated for pressures to 125 PSI.
