Watts GRD-620 User Manual

Grd-620, Green roof plaza area drain

background image

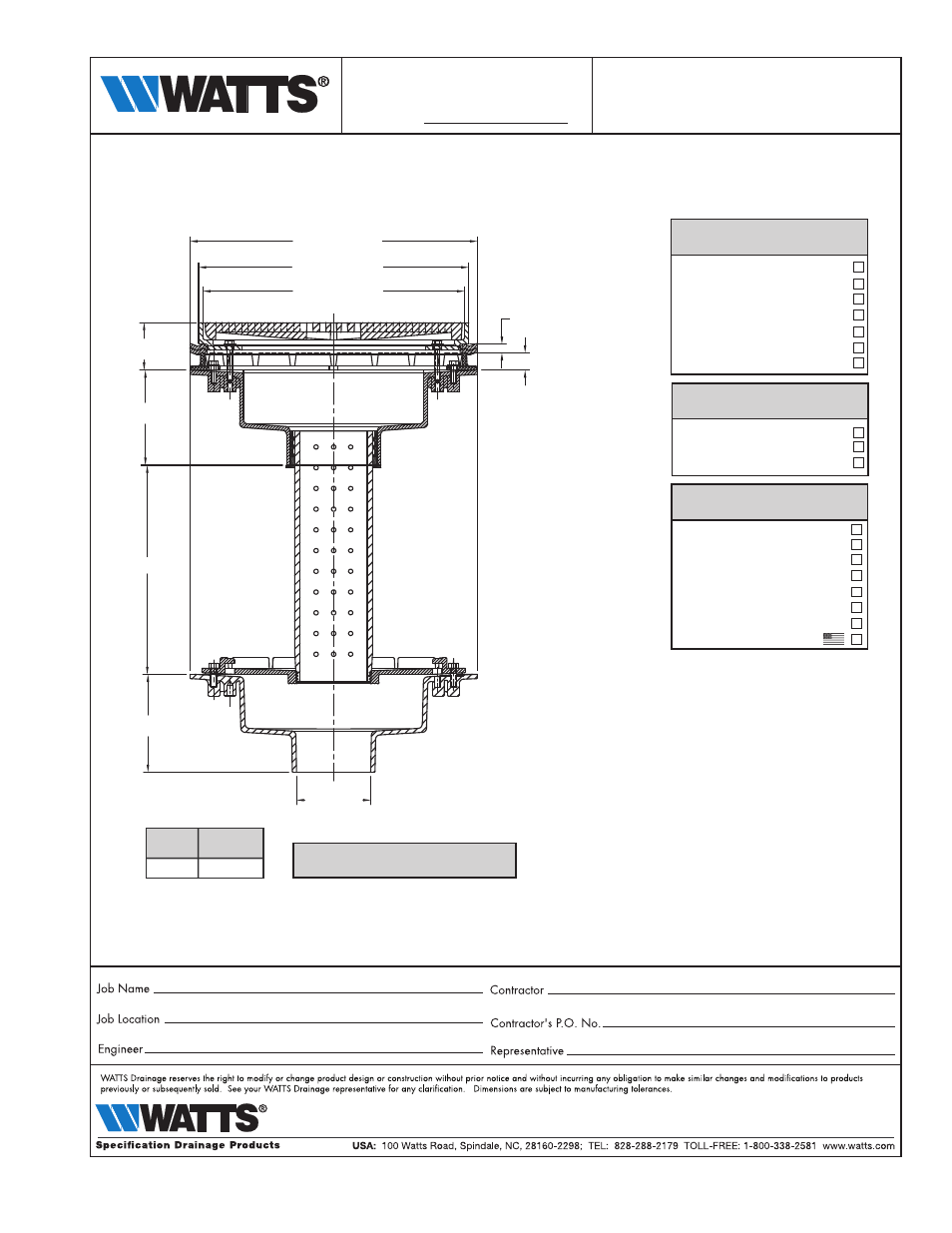

ES-WD-GRD-620 USA 1406

GRD-620

Tag:

SPECIFICATION:

Watts Drainage GRD-620 epoxy coated cast iron green roof plaza area drain with flashing clamp,

perforated ABS standpipe, epoxy coated cast iron promenade drain with 15-5/8”x15-5/8”(397x397) square

top, ductile iron heel-proof grate, and no hub (standard) outlet.

GRD-620

Green Roof

Plaza Area Drain

Deck opening 14-1/2" (368)

with sump receiver 18" (457)

Pipe Sizing (Select One)

Suffix

Description

2"(51) Pipe Size (NH Only)

2

3"(76) Pipe Size

3

4"(102) Pipe Size

4

5"(127) Pipe Size (NH Only)

5

6"(152) Pipe Size

6

8"(203) Pipe Size

8

10

10”(254) Pipe Size (NH Only)

Outlet Type (Select One)

Suffix

Description

No Hub (MJ)

NH

Push On

P

Inside Caulk

X

16 5/8”(422)

15 5/8” (396)
15 1/8” (384)

1/2” (13)

1”(25)

2 3/4”(70)

SPECIFY

5 1/2”(140)

PIPE SIZE

Load Rating & Free Area

Load

Free Area

Rating

Sq. In.

*XHD

57

5 1/2”(140)

-13

Galvanized

-D

Underdeck Clamp

Options (Select One or More)

Suffix

Description

-1

All Nickel Bronze Top

-6

Vandal Proof Top

-B

Sump Receiver

-F

Adjustable Extension Flange

-US

Buy American Compliant

-5

Sediment Bucket
