Capacity, Water service steam service, Figure 2 – Watts N36 User Manual
Page 2: Figure 3, Figure 5, Figure 6, Figure 7, Figure 4
Dimensions-Weights
Materials
Typical Installations
Pressure/Temperature
Maximum steam working pressure: 15 psi (1.03 bars)
Maximum temperature: 250°F (121°C)
ES-N36 0019-1
© Watts, 1997
USA: 815 Chestnut St., No. Andover, MA 01845-6098; www.watts.com
Canada: 5435 North Service Rd., Burlington, ONT. L7L 5H7; www.wattscanada.ca
W a t e r S a f e t y & F l o w C o n t r o l P r o d u c t s
Body - Brass
Components
Cover - Polypropylene
Disc - Silicone
O-ring - Buna-N
Spring - 302
Stainless Steel
Float - Glass Filled
Polysulfone
Size (DN)
DiMeNSiONS
WeiGHT
A
B
in.
mm
in.
mm
in.
mm
oz.
gr.
1
⁄
2
15
2
50
2
50
4
113
3
⁄
4
20
2
50
2
50
4
113
Capacity
Size (DN)
VeNTiNG CAPACiTY
in.
mm
MODEL
CFM
LPM
1
⁄
2
15
N36-M1
15
425
3
⁄
4
20
N36-M1
15
425
B
A
Water Service
Steam Service
T&P
Relief
Valve
Hot
Tank
Cold

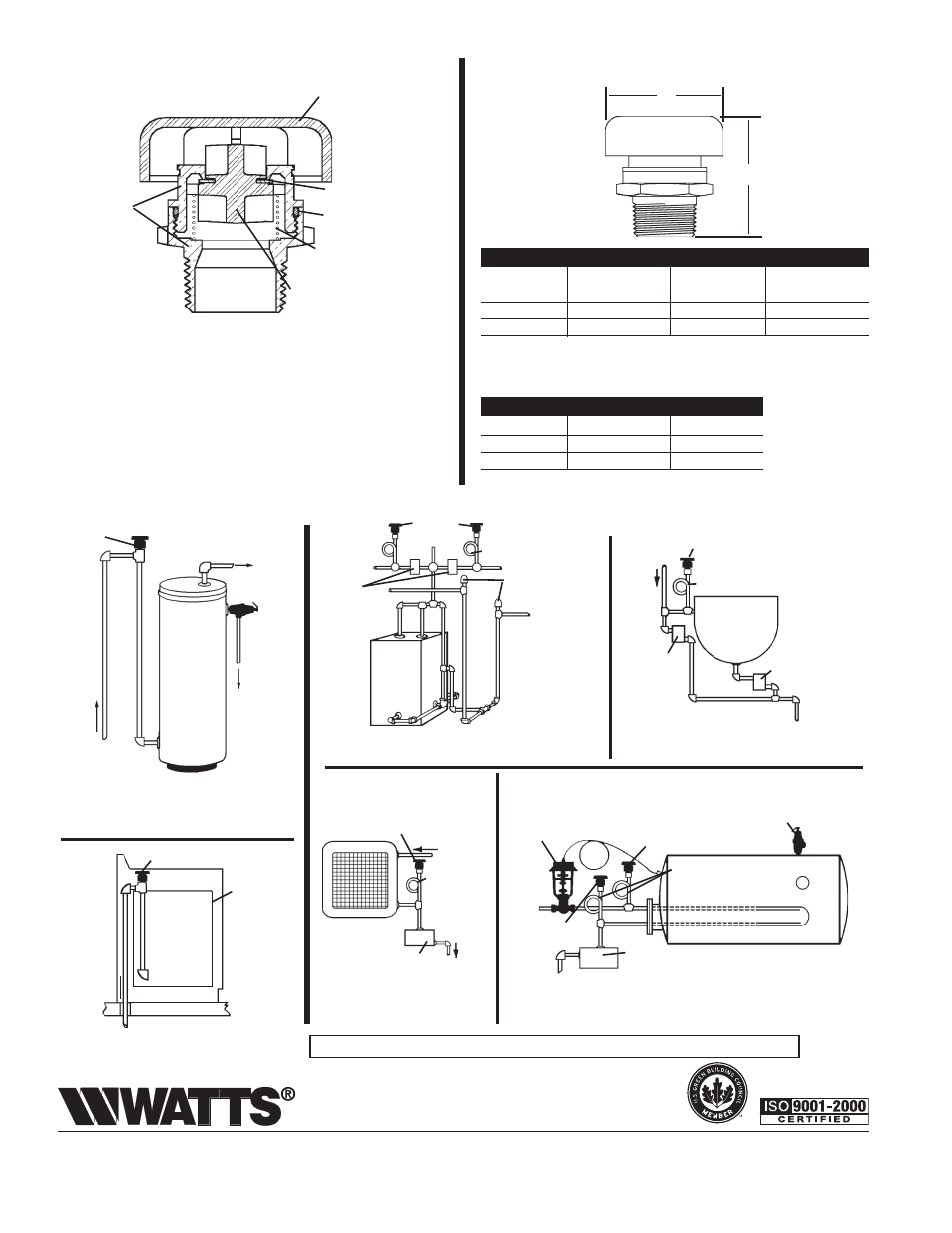

Figure 2
Domestic Hot Water Supply Tanks
and Heaters with Bottom Feed
N36-M1
T&P Relief
Valve
Cold
▼
Figure 3 -
Table Top Heaters
N36-M1
N36-M1
N36-M1
N36-M1
Pigtail*
Jacketed
Kettle
Trap
Trap
Steam
Steam
Trap
Pigtail* not
needed for
pressure
under 5 lbs.
Temperature
Regulator
Alternate
Installation
Steam Trap
T&P Relief
Valve
Heating Coil
Figure 5
Jacketed Kettles
Figure 6
Unit Heaters
Figure 7
Steam Coil Heaters
Figure 4
Low Pressure Steam Heating Systems
N36-M1
Zone
Control
Valves
Air Vents
No. N36 should
be installed on
supply main on
system side of
control zone valve
*Note: When used for steam service, be sure to use pigtail to prevent live steam from damaging N36 valve.
Pigtail*
Pigtail*
