ES-WD-FD-660 USA 0607 FD-660

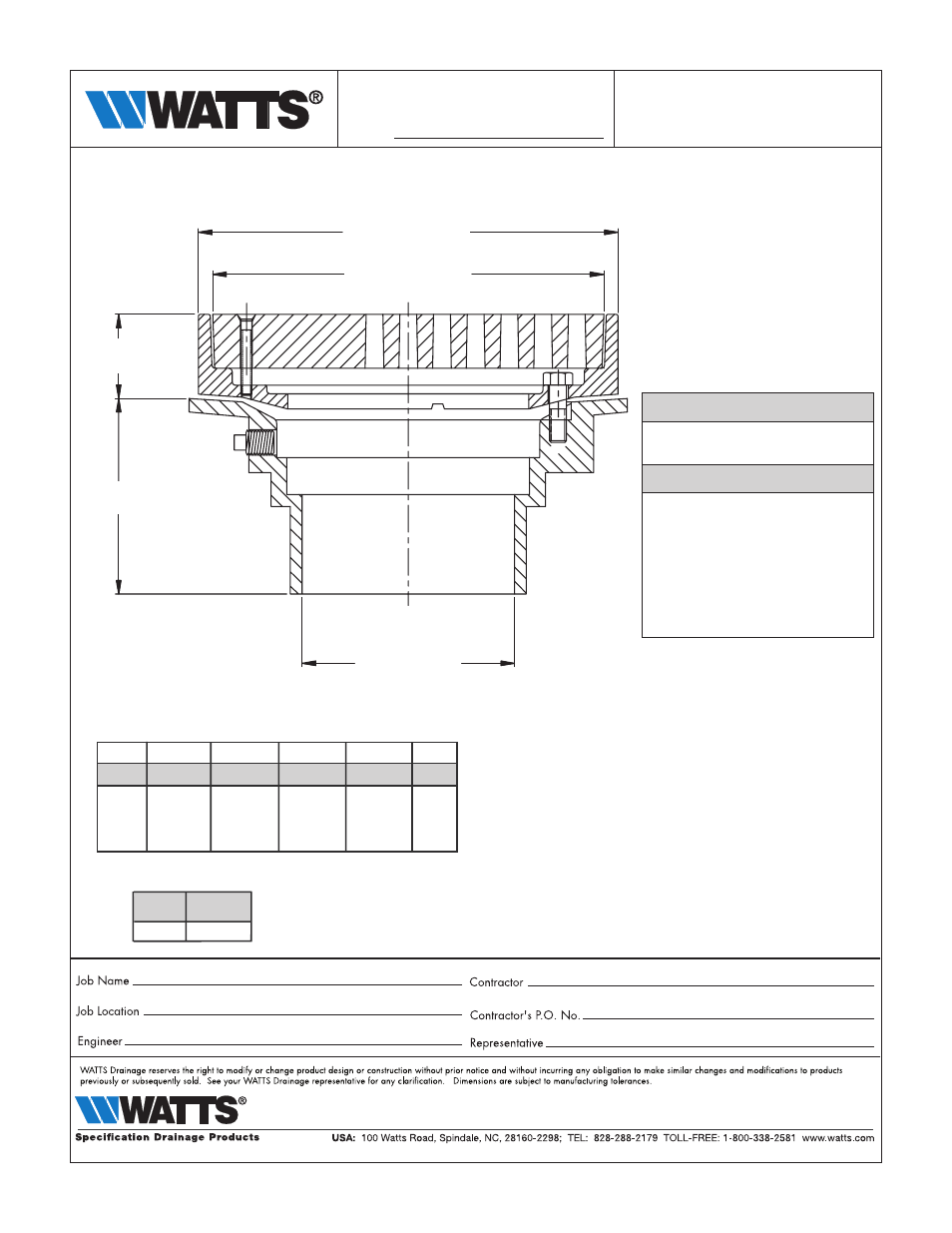

SPECIFICATION: Watts Drainage Products FD-660 PVC area drain with anchor flange, weepholes, 7-3/4" (197)
diameter fixed top, PVC grate secured with vandal proof stainless steel screws, and socket outlet.
All PVC Area Drain
w/7" Round Fixed Top
PIPE SIZE
7-3/4" (197) DIA
7-1/4" (184) DIA
1-1/2" (38)
4" (102)
Pipe Sizing (Select One)
Suffix Description
2 2"(51) Pipe Size Ë
3 3"(76) Pipe Size Ë
4 4"(102) Pipe Pize Ë
Options (Select One or More)
Suffix Description
-5 Sediment Bucket Ë
-7 Trap Primer Tapping Ë
-8 Backwater Valve Ë
-34 Closure Plug Ë
-61 ABS Body Ë
-150 1/2 Grate Ë
-F4-50 4" Round Cast Iron Funnel Ë
-F4-1 4" Round Nickel Bronze Funnel Ë
-F6-1 6" Round Nickel Bronze Funnel Ë
-G-50 4x9" Oval Cast Iron Funnel Ë
-G-1 4x9" Oval Nickel Bronze Funnel Ë
FD-660
* The load classifications are in accordance with the
American National Standards ASME A112.21.1M
ASME Ratings are as follows:
MD - Safe Live Load 2000-4999 lbs.(900-2250kg)
The above categories are given as a guide only.
Please consult factory.
Std. P T X 60/61
No Push Female Inside PVC/ Pipe
Size Hub On Thread Caulk ABS
2"(51) 3-5/8"(92) 4-1/2"(114) 4-1/4"(108) 4-1/4"(108) 4"(102)
3"(76) 3-5/8"(92) 4-1/2"(114) 4-1/4"(108) 4-1/4"(108) 4"(102)
4"(102) 3-5/8"(92) 4-1/2"(114) 4-1/4"(108) 4-1/4"(108) 4"(102)
6"(152) 3-1/2"(89)
Chart A
Load Rating & Free Area
Load Free Area
Rating Sq. In.
*MD 18
