Watts FD-860 - Manual

ES-WD-FD-860 USA 1304 FD-860
Tag:

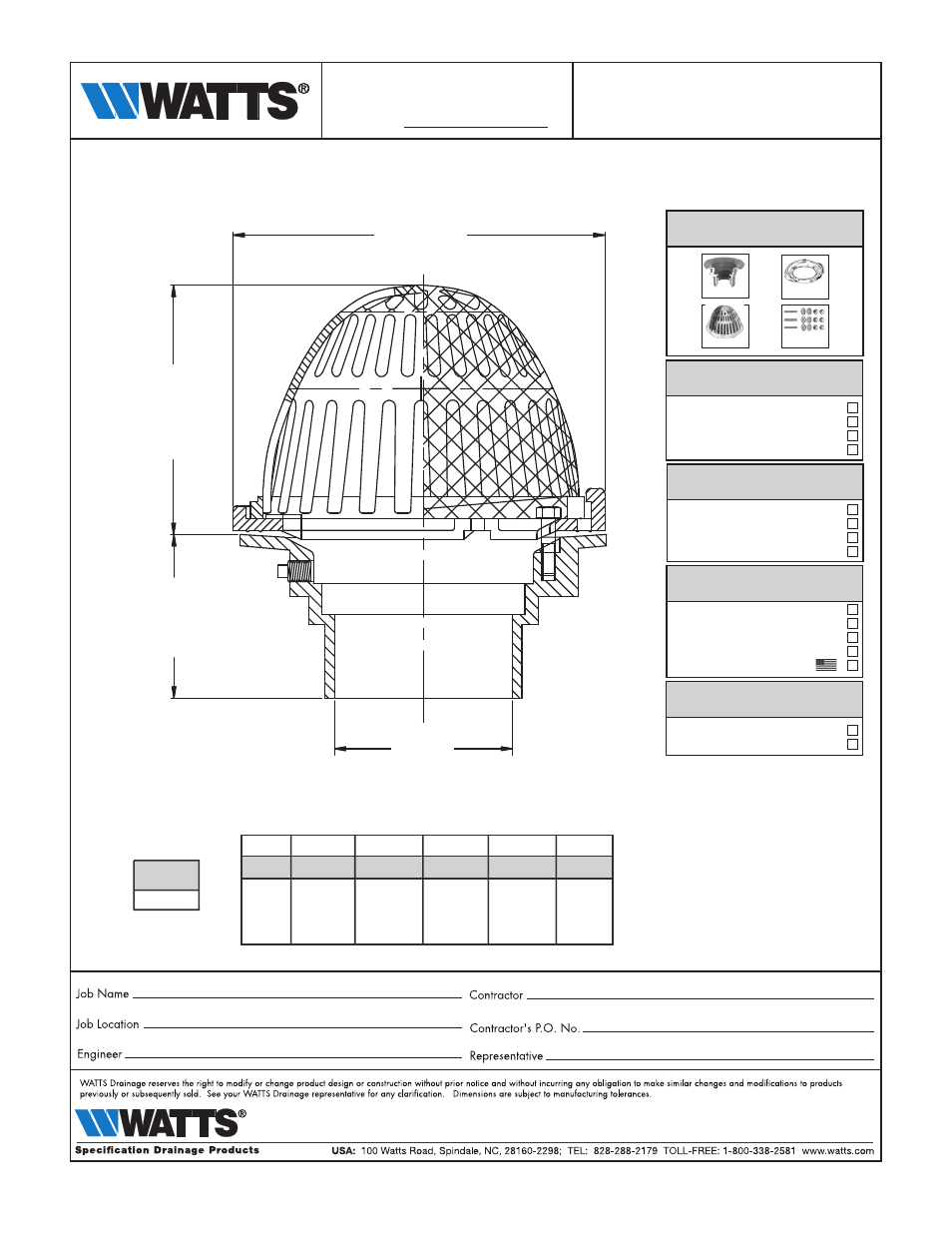

SPECIFICATION: Watts Drainage FD-860 epoxy coated cast iron planting area drain with membrane clamp,
self-locking dome with stainless steel mesh, and no hub (standard) outlet.
Components
B3 B3-FLG
FC-2
-6 Vandal Proof Dome
-13 Galvanized Body and Clamp
-81
Options (Select One or More)
Suffix Description
No Hub (MJ)
Push On
P
Threaded Outlet T
Inside Caulk X
Bronze Dome
Outlet Type (Select One)
Suffix Description
2"(51) Pipe Size 2
3"(76) Pipe Size 3
4"(102) Pipe Size 4
6"(152) Pipe Size (NH Only) 6
Pipe Sizing (Select One)
Suffix Description
PVC Body w/Socket Outlet -60
ABS Body w/Socket Outlet -61
Optional Body Material
Suffix Description
NH
-SO Side Outlet
FD-860
Planting Area Drain
Free Area
Free Area
Sq. In.
35
B3-KDM-83
5-1/2" (140)
PIPE SIZE
8-1/8" (206)
CHAR
T B
Std. P T X 60/61
No Push Female Inside PVC/ Pipe
Size Hub On Thread Caulk ABS
2"(51) 3-5/8"(92) 4-1/4"(108) 4-1/4"(108) 4-1/4"(108) 3-3/4"(95)
3"(76) 3-5/8"(92) 4-1/4"(108) 4-1/4"(108) 4-1/4"(108) 3-5/8”(92)
4"(102) 3-5/8"(92) 4-1/4"(108) 4-1/4"(108) 4-1/4"(108) 3-7/8”(94)
6"(152) 3-1/2"(89)
Chart B
-US Buy American Compliant
