Pressure – Temperature
Maximum Working Pressure: 80psi (552 kPa)
Temperature Range: 33˚F – 110˚F (0.5˚C – 43.3˚C)
Materials
Body: ABS and Acetal Plastic
Gasket: Black rubber
Standards

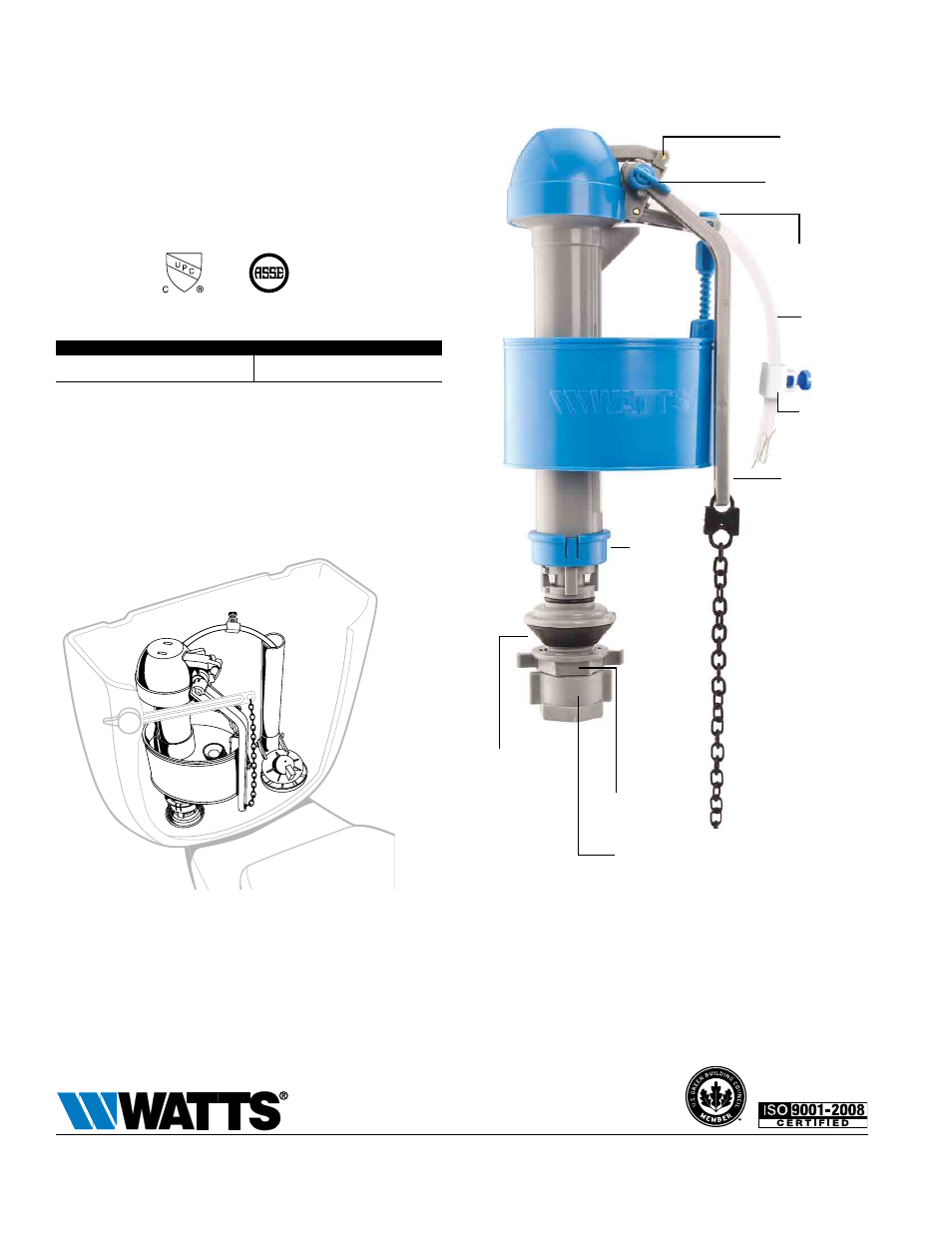

Dimensions
Model Size
Gov80M2-ADJ 8 3 ⁄
4
" to 12 3 ⁄
4
"
Height
Adjustment
Screw
leak Sensor
Control lever
Float lock
Primer
Tube
Flow
Restrictor
Valve
Flush Arm
locking
Ring
Coupling
Nut
Shank
Washer
Mounting
Nut
1002-2008
Typical Installation
