Watts F1113-6RFP - Manual (Page 8)

Globe
Angle
C
lassiC
s
eries
12541 Gulf Freeway • Houston, Texas 77034 • (Ph) 713.943.0688 • (Fx) 713.944.9445 • www.watts.com
F113-6RFP (Globe)
F1113-6RFP (Angle)
1 Nut
2 Lock Washer
3 Upper Diaphragm
Washer
4 Diaphragm*
5 Lower Diaphragm
Washer
6 Spring
7 Stem
8 Spool
9 O-Ring*
10 O-Ring*
11 Retainer
12 O-Ring*
13 O-Ring Washer
14 Lock Washer
15 Nut
*Included in Repair Kit

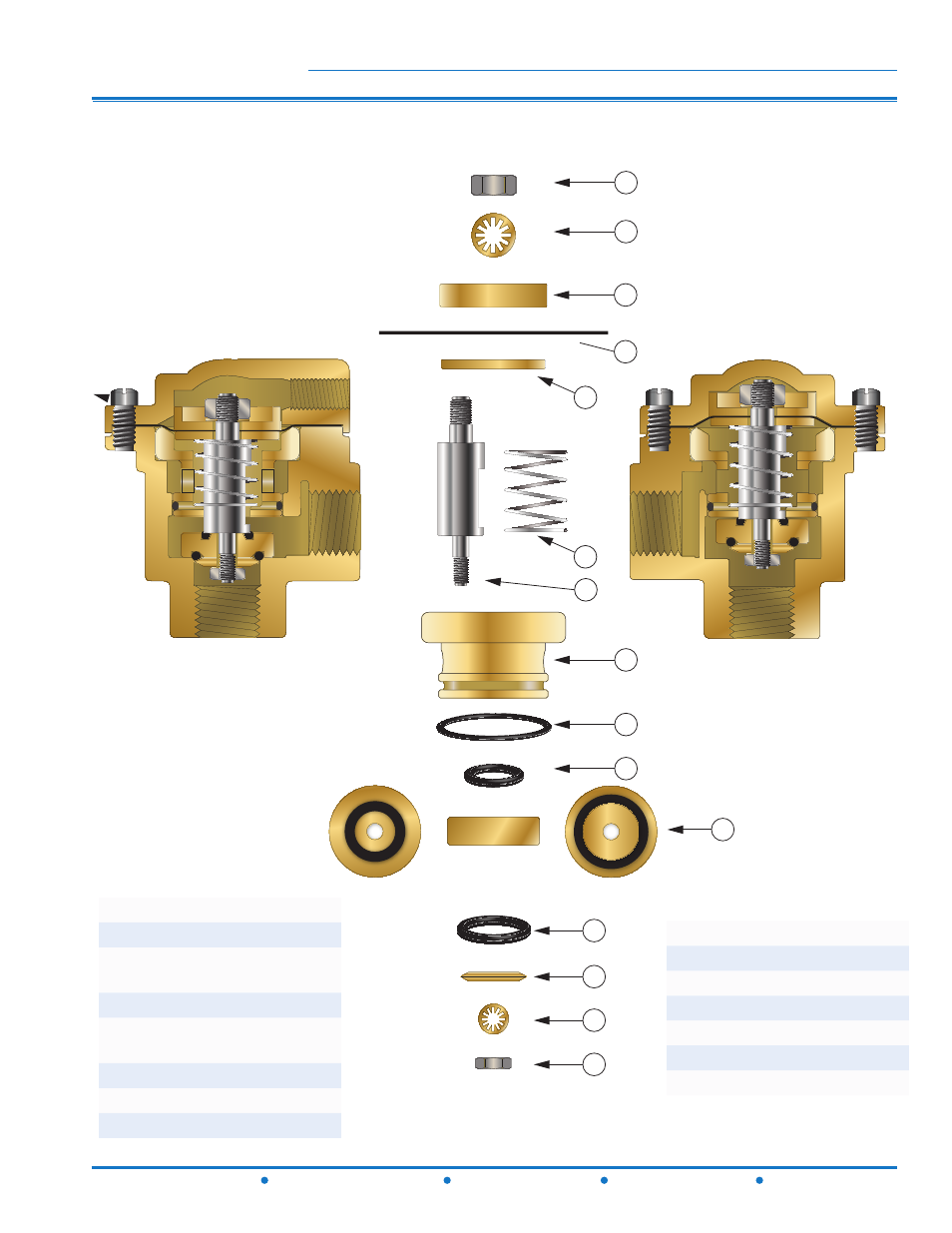

Model 22-1 Accelerator Control
Inlet Inlet
Top View Bottom View
Outlet Outlet
Gauge
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Internal Components Front View Side View
