Briggs & Stratton 135200 - Manual (Page 8)

135200 to 135299

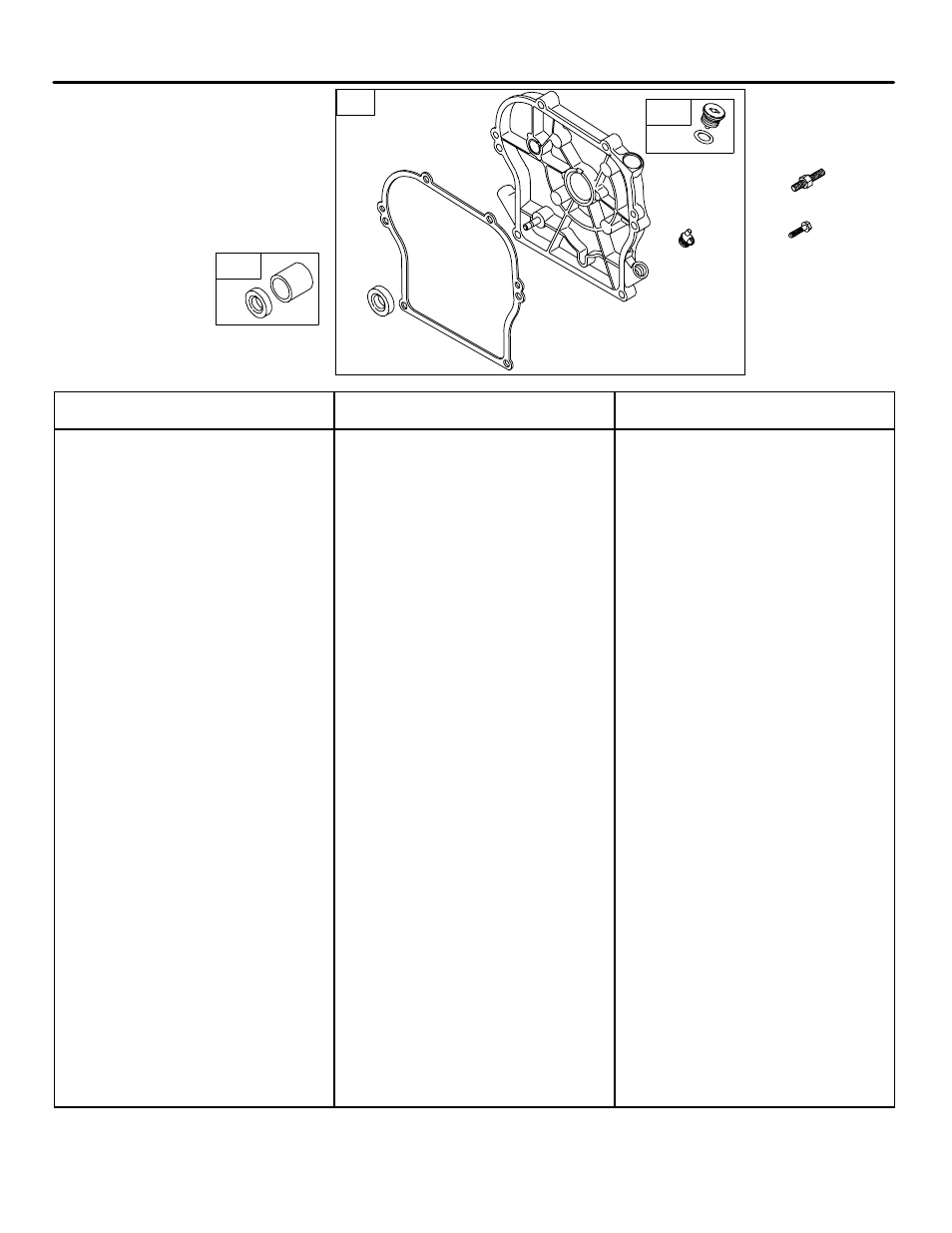

2810−8 Assemblies include all parts shown in frames. 02/26/2007
8
22
170
12
1194
415
20
21
20
18
19
12 K692213 Gasket−Crankcase
(Standard)
−−−−−−− Note −−−−−
K270125 Gasket−
Crankcase
(.005“ Thick)
K270126 Gasket−
Crankcase
(.009” Thick)
18 Cover−Crankcase
(See Previous Page)
19 495660 Kit−Bushing/Seal
(PTO Side)
20 K495307 Seal−Oil
(PTO Side)
−−−−−−− Note −−−−−
294606 Seal−Oil
(PTO Side)
Used on Type No(s).
0001, 0003, 0004,
0005, 0015, 0016,
0020, 0025, 0105,
0114, 0117, 0118,
0119, 0127, 0132,
0136, 0142, 0145,
0150, 0153, 0156,
0157, 0159, 0171,
0175, 0178, 0182,
0183, 0185, 0193,
0194, 0195, 0209,
0210, 0214, 0222,
0237, 0238, 0245,
0253, 0254, 0258,
0260, 0262, 0263,
0265, 0269, 0271,
0274, 0276, 0281,
0284, 0285, 0289,
0293, 0295, 0304,
0306, 0309, 0310,
0315, 0316, 0320,
0324, 0603, 0611,
0615, 0616, 0620,
0625, 0670, 0671,
0704, 0706, 0727,
0728, 0757, 0758,
0759, 0780, 0784,
1003, 1004, 1005,
1011, 1016, 1020,
1025, 1070, 1071,
1105, 1119, 1127,
1128, 1142, 1153,
1154, 1157, 1158,
1159, 1169, 1171,
1180, 1194, 1231,
1232, 1238, 1245,
1258, 1259, 1260,
1261, 1263, 1271,
1276, 1281, 1284,
1289, 1299, 1304,
1310, 1315, 1320,
1324, 1329, 1336,
1337, 1338.
691952 Seal−Oil
(PTO Side)
Used on Type No(s).
0011, 0070, 0071,
0108, 0120, 0121,
0124, 0141, 0154,
0157, 0158, 0169,
0173, 0174, 0180,
0182, 0194, 0198,
0202, 0203, 0204,
0205, 0206, 0207,
0209, 0214, 0216,
0232, 0236, 0254,
0260, 0265, 0269,
0295, 0309, 0310,
0320, 0324, 0611,
0670, 0671, 0728,
0757, 0758, 0780,
1011, 1070, 1071,
1128, 1154, 1157,
1158, 1169, 1173,
1180, 1194, 1232,
1260, 1261, 1265,
1309, 1310, 1320,
1324, 1336, 1337,
1338, 1343.
692019 Seal−Oil
(PTO Side)
Used on Type No(s).
0026, 0115, 0129,
0151, 0160, 0162,
0163, 0164, 0166,
0199, 0211, 0244,
0252, 0292, 0327,
0626, 0752, 1026,
1115, 1129, 1160,
1252, 1292, 1327.
21 281658S Cap−Oil Fill
22
691551 Screw
(Crankcase Cover)
170 691120 Stud
(Crankcase Cover,
Install In #1 and/or #2
Positions)
415 691363 Plug
(Crankcase Cover)
1194 K691876 Seal−O Ring
(Plug)
K Included in Engine Gasket Set−Ref. 358.
D Included in Carburetor Overhaul Kit−Ref. 121.
∅ Included in Valve Gasket Set−Ref. 1095.
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
