135200 to 135299
2810−10

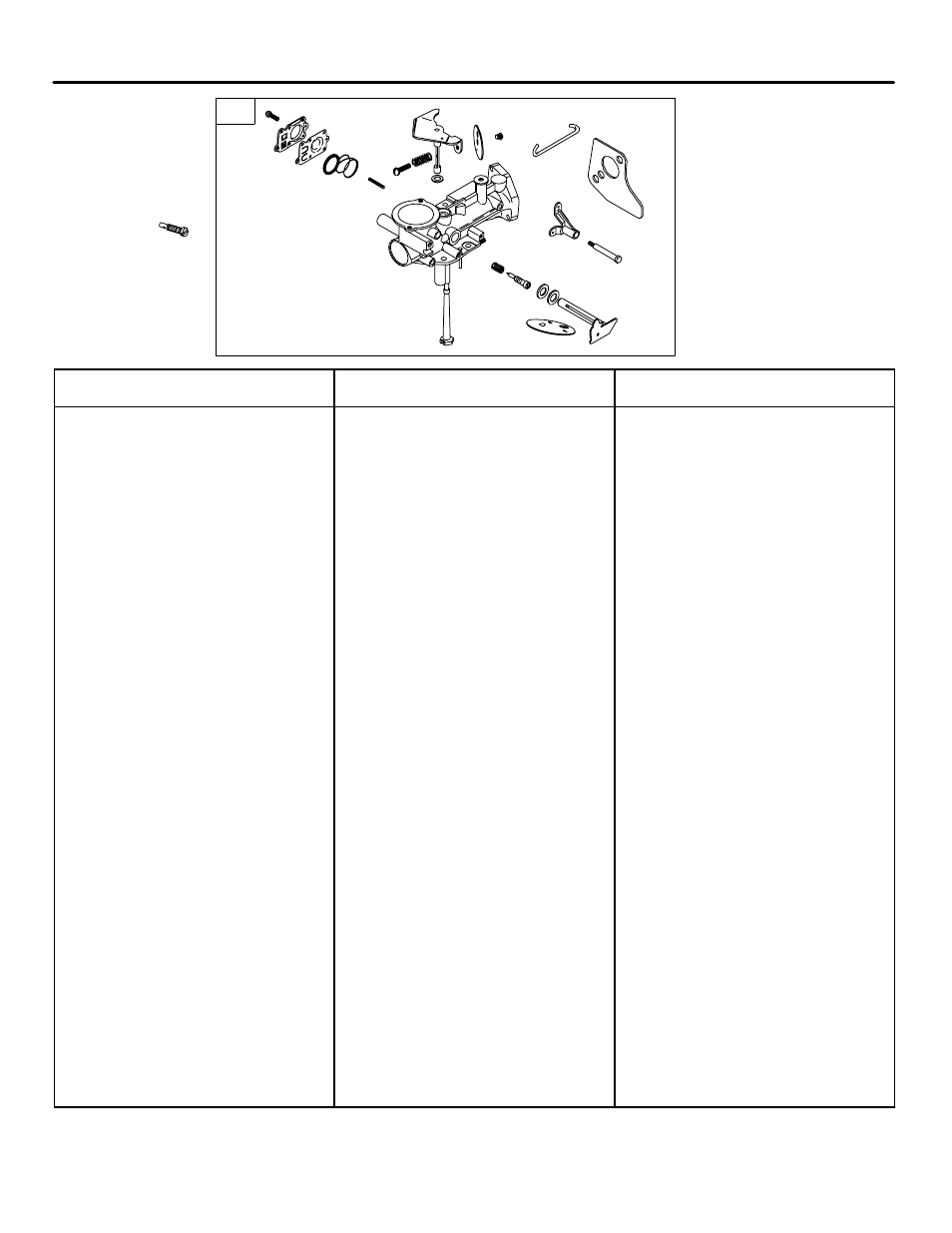

Assemblies include all parts shown in frames.
02/26/2007
10
147
90
NOTE: SEE NEXT
PAGE FOR ADDITIONAL
CARBURETOR PARTS
90
498298 Carburetor
−−−−−−− Note −−−−−
495951 Carburetor
Used on Type No(s).
0185, 0263.
495425 Carburetor
Used on Type No(s).
0214.
498298 Carburetor
Used on Type No(s).
0309, 0603, 0607,
0611, 0615, 0616,
0620, 0623, 0625,
0626, 0635, 0636,
0638, 0649, 0660,
0670, 0671, 0679,
0700, 0702, 0704,
0717, 0706, 0727,
0728, 0729, 0730,
0740, 0747, 0752,
0757, 0758, 0759,
0762, 0767, 0772,
0779, 0780, 0784,
0788, 0790, 0814,
0815, 0913, 1003,
1004, 1005, 1007,
1008, 1009, 1011,
1019, 1020, 1023,
1025, 1027, 1029,
1035, 1036, 1049,
1050, 1060, 1070,
1071, 1073, 1079,
1080, 1084, 1105,
1106, 1119, 1127,
1128, 1129, 1139,
1140, 1142, 1143,
1146, 1147, 1153,
1154, 1157, 1158,
1159, 1161, 1167,
1169, 1171, 1173,
1179, 1180, 1190,
1194, 1196, 1197,
1200, 1215, 1216,
1217, 1219, 1223,
1231, 1232, 1238,
1242, 1245, 1246,
1250. 1258, 1259,
1261, 1268, 1271,
1276, 1281, 1283,
1284, 1288. 1289,
1289, 1299, 1301,
1304, 1308, 1310,
1313, 1314, 1315,
1317, 1318, 1320,
1324, 1326, 1328,
1329, 1330, 1333,
1336, 1337,1338,
1340, 1342, 1343,
1345.
147
691250 Jet−Pilot
(Standard)
Used on Type No(s).
0309, 0603, 0607,
0611, 0615, 0616,
0620, 0623, 0625,
0626, 0635, 0636,
0638, 0649, 0660,
0670, 0671, 0679,
0700, 0702, 0704,
0717, 0706, 0727,
0728, 0729, 0730,
0740, 0747, 0752,
0757, 0758, 0759,
0762, 0767, 0772,
0779, 0780, 0784,
0788, 0790, 0814,
0815, 0913, 1003,
1004, 1005, 1007,
1008, 1009, 1011,
1019, 1020, 1023,
1025, 1027, 1029,
1035, 1036, 1049,
1050, 1060, 1070,
1071, 1073, 1079,
1080, 1084, 1105,
1106, 1119, 1127,
1128, 1129, 1139,
1140, 1142, 1143,
1146, 1147, 1153,
1154, 1157, 1158,
1159, 1161, 1167,
1169, 1171, 1173,
1179, 1180, 1190,
1194, 1196, 1197,
1200, 1215, 1216,
1217, 1219, 1223,
1231, 1232, 1238,
1242, 1245, 1246,
1250. 1258, 1259,
1261, 1268, 1271,
1276, 1281, 1283,
1284, 1288. 1289,
1289, 1299, 1301,
1304, 1308, 1313,
1314, 1315, 1317,
1318, 1320, 1324,
1326, 1328, 1329,
1330, 1333, 1336,
1337, 1338, 1340,
1342, 1343.
692725 Jet−Pilot
(High Altitude)
K Included in Engine Gasket Set−Ref. 358.
D Included in Carburetor Overhaul Kit−Ref. 121.
∅ Included in Valve Gasket Set−Ref. 1095.
