Briggs & Stratton 135200 - Manual (Page 14)

135200 to 135299

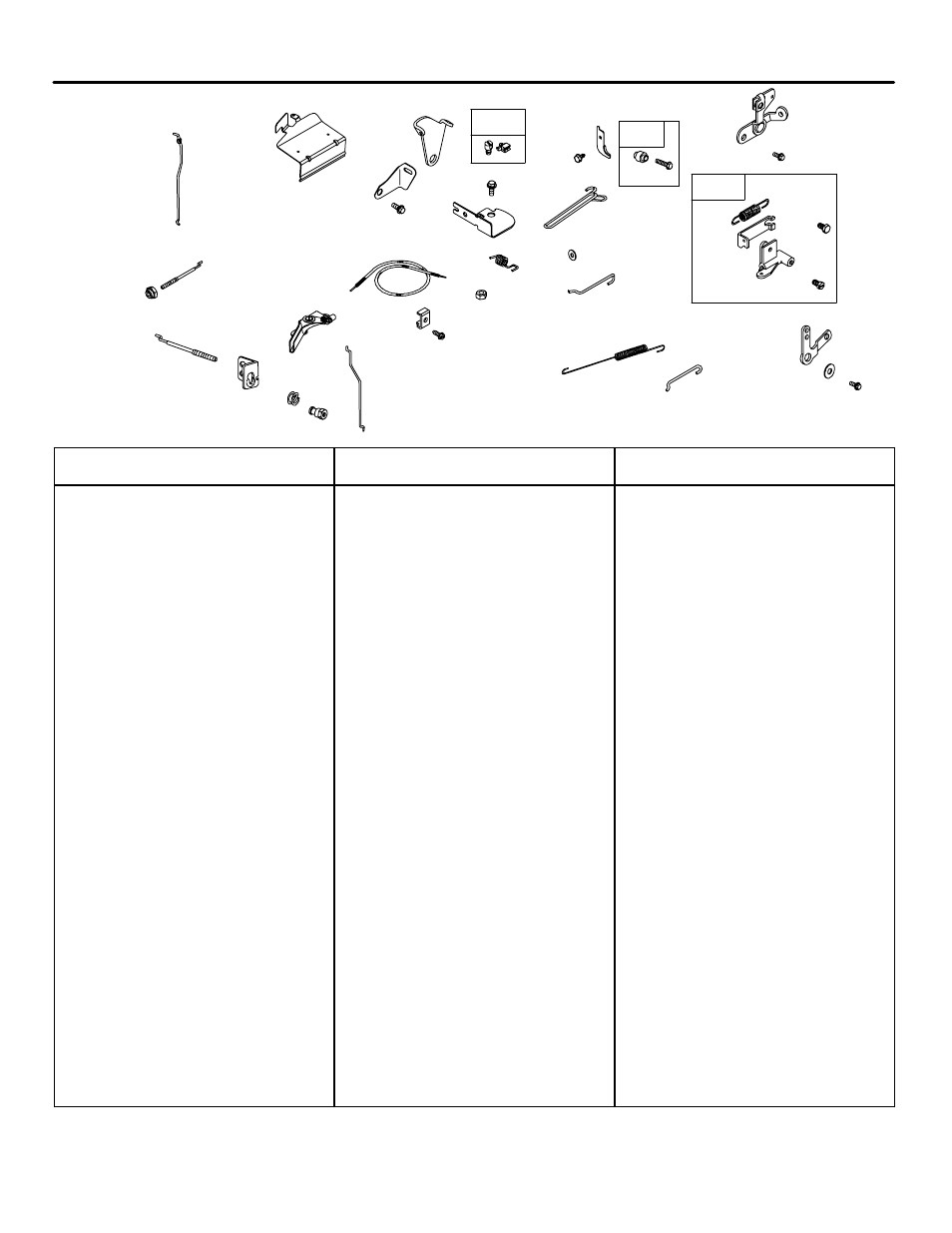

2810−14 Assemblies include all parts shown in frames. 02/26/2007
14
202
208
203A
414
410
779
153
780A
831
224
689B
206A
629
780
280
208B
275A
344
587
266A
206
208A
725
951
216A
217
218
232
995
542
270
268
269
271
265
267
1012
275
266
205A
729A
367
153 490589 Kit−Collar/Screw
202 691814 Link−Mechanical
Governor
−−−−−−− Note −−−−−
261558 Link−
Mechanical Governor
Used on Type No(s).
0299, 1011, 1012.
203A 691744 Crank−Bell
(Steel)
205A 690320 Screw
(Bell Crank)
206 690325 Nut−Governor
Adjusting
(Governor Idle)
206A 691771 Nut−Governor
Adjusting
(Fixed Speed)
208 691813 Rod−Governor Control
(Non Threaded)
208A 691820 Rod−Governor Control
(Threaded)
(Governor Idle Speed)
208B 691821 Rod−Governor Control
(Fixed Speed)
216A 691271 Link−Choke
(Choke A Matic)
217 691815 Spring−Choke Return
218 691722 Washer
(Choke Link)
224 690320 Screw
(Collar/Screw Kit)
232 691819 Spring−Governor Link
265 691024 Clamp−Casing
266 691414 Control−Throttle
(Remote/Governor
Idle)
266A 692316 Control−Throttle
(Kit with Spring)
267 690804 Screw
(Casing Clamp)
268 691025 Casing−Control Wire
(Cut To
Required Length)
269 691026 Wire−Control
(Cut To
Required Length)
270 691027 Nut
(Control Wire Casing)
271 691028 Lever−Control
275 691683 Screw
(Throttle Control)
275A 691646 Screw
(Throttle Control)
280 691184 Bracket−Rod
344 691645 Screw
(Cable Clamp)
367 691660 Screw
(Wire Clip)
410 691274 Link−Control
414 691721 Washer
(Bell Crank)
542 691683 Screw
(Link Bracket)
587 690769 Clamp−Cable
629 690457 Spring−Throttle Return
689B 692522 Spring−Friction
(4 Coil, Closed Ends)
725 690440 Shield−Heat
(Fuel Tank)
729A 690471 Clip−Wire
(Steel)
779 691828 Link−Bell Crank
780 690594 Anchor−Spring
(Throttle Control)
780A 691211 Anchor−Spring
(Governor Idle)
831 691683 Screw
(Spring Anchor)
951 690436 Lever−Choke
(Choke A Matic)
995 691756 Bracket−Link
1012 490507 Retainer−Link
K Included in Engine Gasket Set−Ref. 358.
D Included in Carburetor Overhaul Kit−Ref. 121.
∅ Included in Valve Gasket Set−Ref. 1095.
