WARNING
Before beginning any service work turn off the
PTO, set the parking brake, turn off the ignition,
and disconnect the spark plug wire(s).
Installing The Suspension Seat
1. Park machine on a flat, level surface and engage the
parking brake. Disengage the PTO switch, turn off
the engine and remove the key from the ignition.
2. Raise the seat plate (B, Figure 1) to gain access to
the four (4) 5/16-18 nylock flange nuts (A) that
secure the existing seat to the seat plate.
3. Remove the four (4) 5/16-18 nylock flange nuts and
remove the seat from the seat plate. Retain the four
(4) 5/16-18 nylock flange nuts.
4. Using the 1/4 hardware secure (B, C & D, Figure 2)
the seat support plate (A) to the seat plate.
5. See Figure 3. Install the new suspension seat onto
the seat plate and secure using the four (4) 5/16-18
nylock flange nuts that were removed in step 3.
Installing The New Seat Belt Components
6. See Figure 4. On the right hand side of the
machine, replace the existing seat sleeve buckle with
the new seat sleeve buckle. Replace the existing
seat belt extension plate with new seat belt extension
plate.
Installation
Instructions
S200X Suspension Seat Kit
Part No. 5600136
For Snapper Pro S200X Models (5900664 & 5900692)
Kit Contents:
Part No. Qty. Description
5101214 1 Suspension Seat
5401044D 1 Extension, Seat Belt
5403471D 1 Plate, Seat Support
5101123 1 Sleeve Buckle, Seat Belt
5025010X6 1 Bolt, 1/4-20 X 3/4 GD5 YZ
5025391 1 Nut, 1/4-20 Hex Nylock Flange
5025154 1 Washer,1/4 SAE

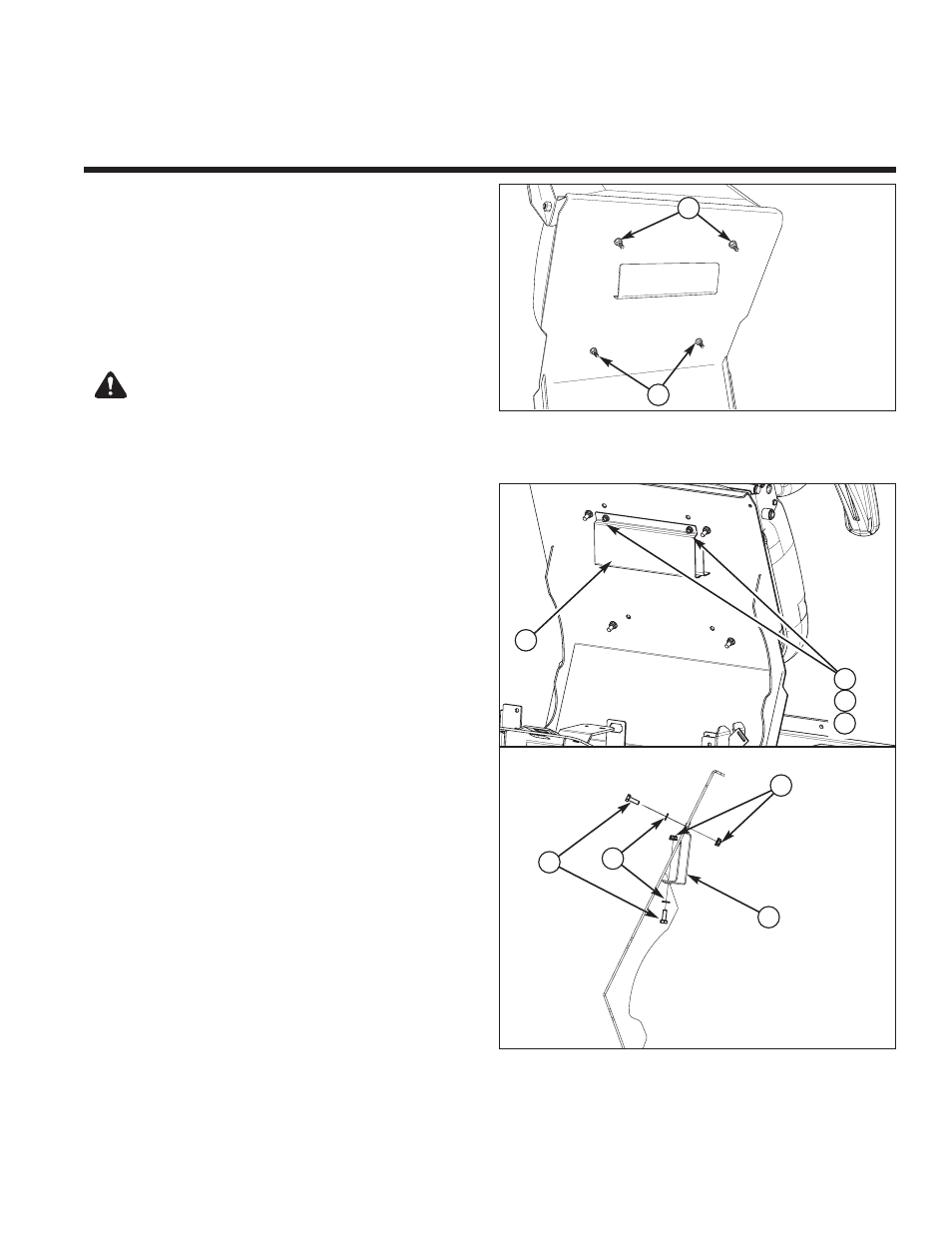

Figure 2. Install the Seat Support Plate
A. Seat Support Plate
B. 1/4-20 X 3/4 Bolt
C. 1/4 SAE Washer
D. 1/4-20 Hex Nylock Flange Nut
B
A
C
D
Figure 1. Remove The Existing Seat
A. 5/16-18 Nylock Flange Nuts
B. Seat Plate
A
A
D
C
B
A
Left Side View of
Seat Plate
