135200 to 135299

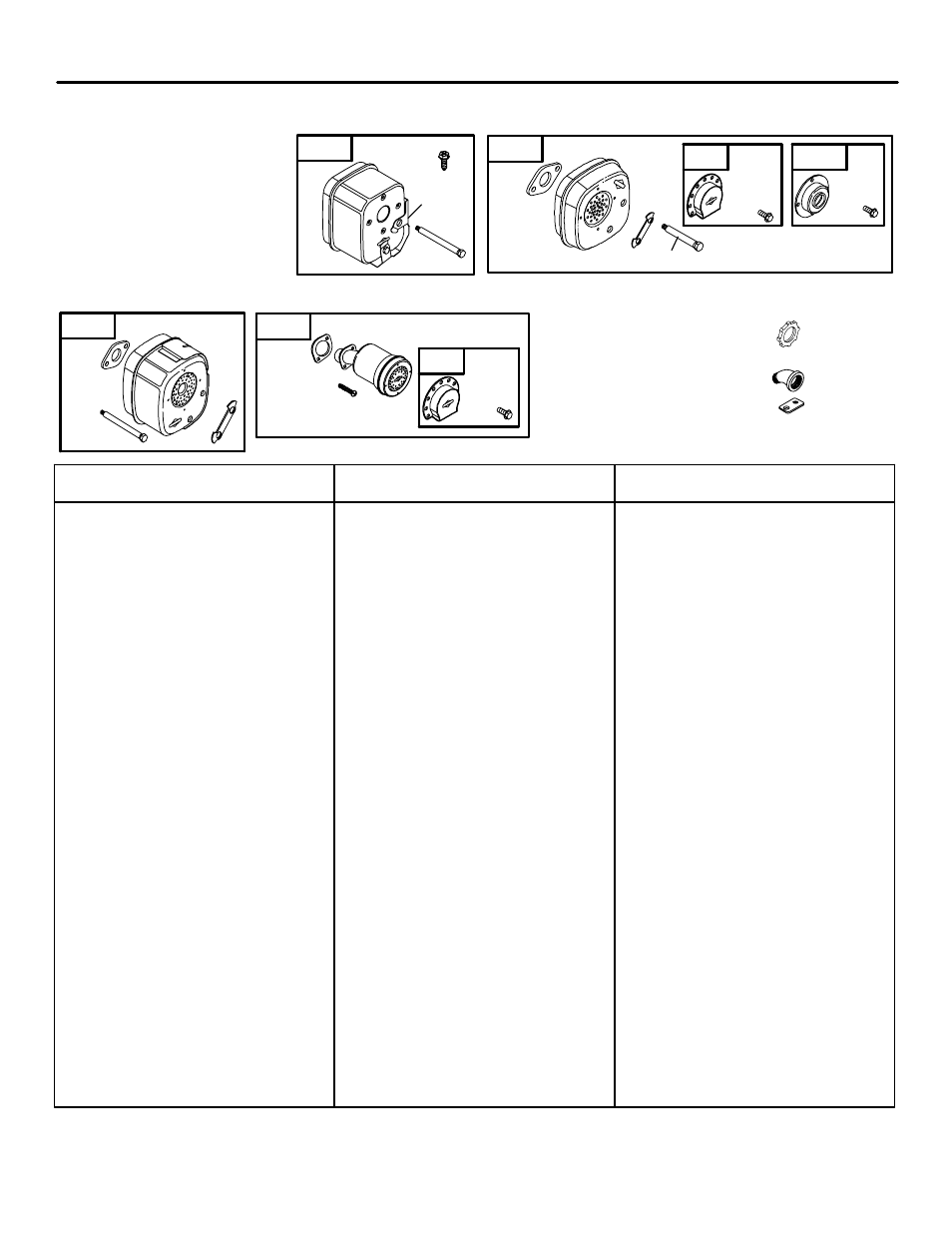

2810−19 Assemblies include all parts shown in frames. 02/26/2007
19
613
613D
725A
981
300A
81
613B
883
81 613A
677 677
300B
676 676A
883
883
613C
677
676
300D 300C
303
298
81 691729 Lock−Muffler Screw
298 690453 Locknut−Muffler/Elbow
300A 691969 Muffler
(Super Lo Tone)
300B 494585 Muffler
−−−−−−− Note −−−−−
(Heat Shield Supplied
By Equipment
Manufacturer)
Used on Type No(s).
0185.
300C 390918 Muffler
(Lo Tone)
−−−−−−− Note −−−−−
692304 Muffler
(Lo Tone)
Used on Type No(s).
0072, 0075, 0142,
0143, 0193, 0195,
0198, 0208, 0244,
0315, 0316, 1072,
1075, 1127, 1142,
1143, 1315.
300D 496892 Muffler
(Round Lo Tone)
Used on Type No(s).
0138, 0165, 0227,
0274.
303 94089 Elbow−Exhaust
613 691351 Screw
(Muffler)
613A 691413 Screw
(Muffler)
613B 691632 Screw
(Muffler)
613C 691665 Screw
(Muffler)
613D 690810 Screw
(Muffler)
613E 692557 Screw
(Muffler)
Used on Type No(s).
1127.
676 393757 Deflector−Muffler
(Side Out)
(Deep)
−−−−−−− Note −−−−−
494423 Deflector−
Muffler
(Side Out)
(Shallow)
Used on Type No(s).
0029, 0167, 0190,
0225, 0248, 0276,
0767, 1029, 1276,
1167, 1190.
676A 395700 Deflector−Muffler
(Direct Out)
677 690661 Screw
(Muffler Deflector)
725A 690466 Shield−Heat
(Muffler)
883 K692237 Gasket−Exhaust
981 690408 Brace−Muffler
K Included in Engine Gasket Set−Ref. 358.
D Included in Carburetor Overhaul Kit−Ref. 121.
∅ Included in Valve Gasket Set−Ref. 1095.
