Metrohm Liquid Handling Station - Manual (Page 24)

3.3 Defining work positions
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
16 ￭￭￭￭￭￭￭￭
3 + 4
2
1

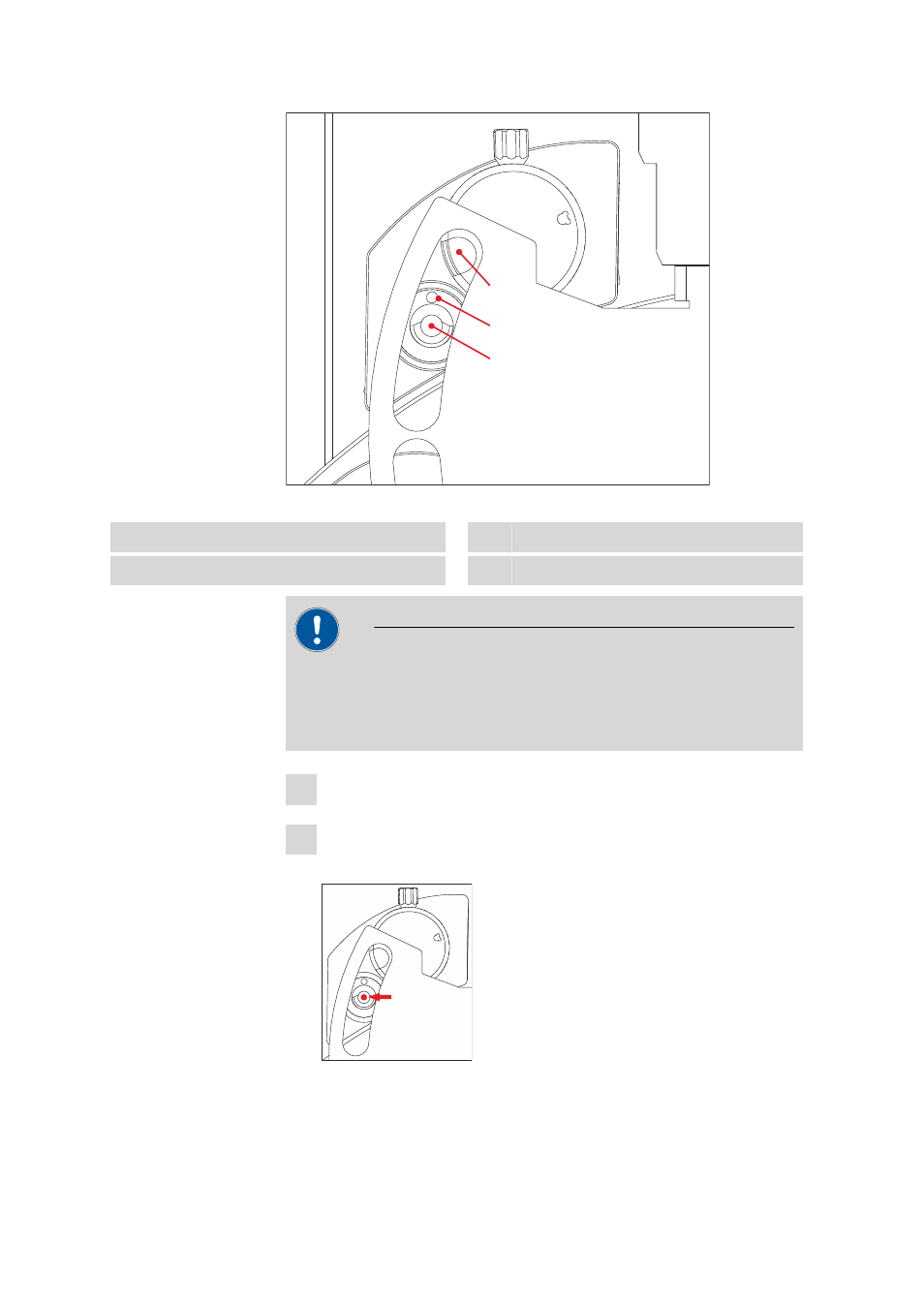

Figure 16 External positions
1 Rinsing unit - Rinse 2 Rinsing unit - Disposal
3 Dilution unit 4 Dilution unit (standard depth)
CAUTION
Damage to the sample tube
The External position 3 also has to be set in order to avoid a collision
in case it is used.
1 Move to External position 1 (16-1).
2 Check whether the sample tube is centered over the "Rinsing unit -
Rinse" position.
Figure 17 Working range - Rinse
