3 Installation
￭￭￭￭￭￭￭￭ 11
3.2 Mounting the Liquid Handling Station
The Liquid Handling Station requires precise mounting and alignment in
order to function properly with the entire system.
CAUTION
Faulty, imprecise assembly
The components could become damaged during operation if assembled
in a faulty and imprecise manner.
￭ Observe the assembly sequence.
￭ Observe instrument movements during setup and stop in a timely
fashion if necessary.
The following description refers to the assembly of a left-handed Liquid
Handling Station. The right-handed version is assembled in the same way
but mirror-reversed.
1 2 3 4

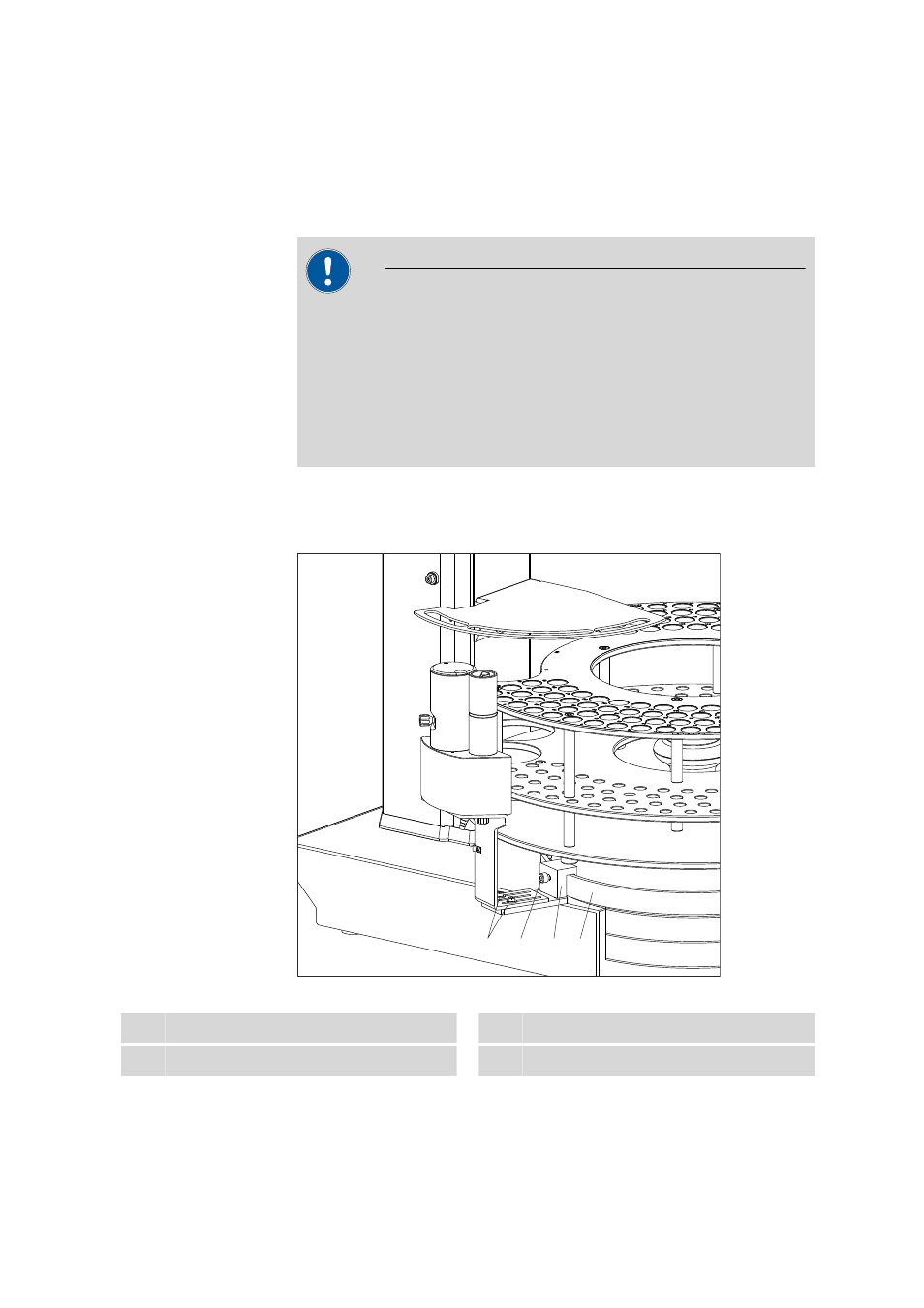

Figure 11 Placing the Liquid Handling Station on the assembly rail
1 "Base plate" screws 2 "Clamping fastener" screw
3 Clamping fastener 4 Assembly rail
