3.2 Mounting the Liquid Handling Station
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
12 ￭￭￭￭￭￭￭￭
Placing the Liquid Handling Station on the guide
1 Attach the Liquid Handling Station to the assembly rail (11-4) with
the clamping fastener (11-3).
2 Secure the Liquid Handling Station temporarily in place with the
screw (11-2).
Aligning the Liquid Handling Station with the rack
1 Loosen the screws (11-1) of the base plate until you can shift the
Liquid Handling Station with the support bracket.
2 Shift the Liquid Handling Station with the support bracket until the
main body is positioned at an even distance (see Figure 12, page
12) of 0.5 to 1 mm from the edge of the sample rack.
0.5 ... 1 mm

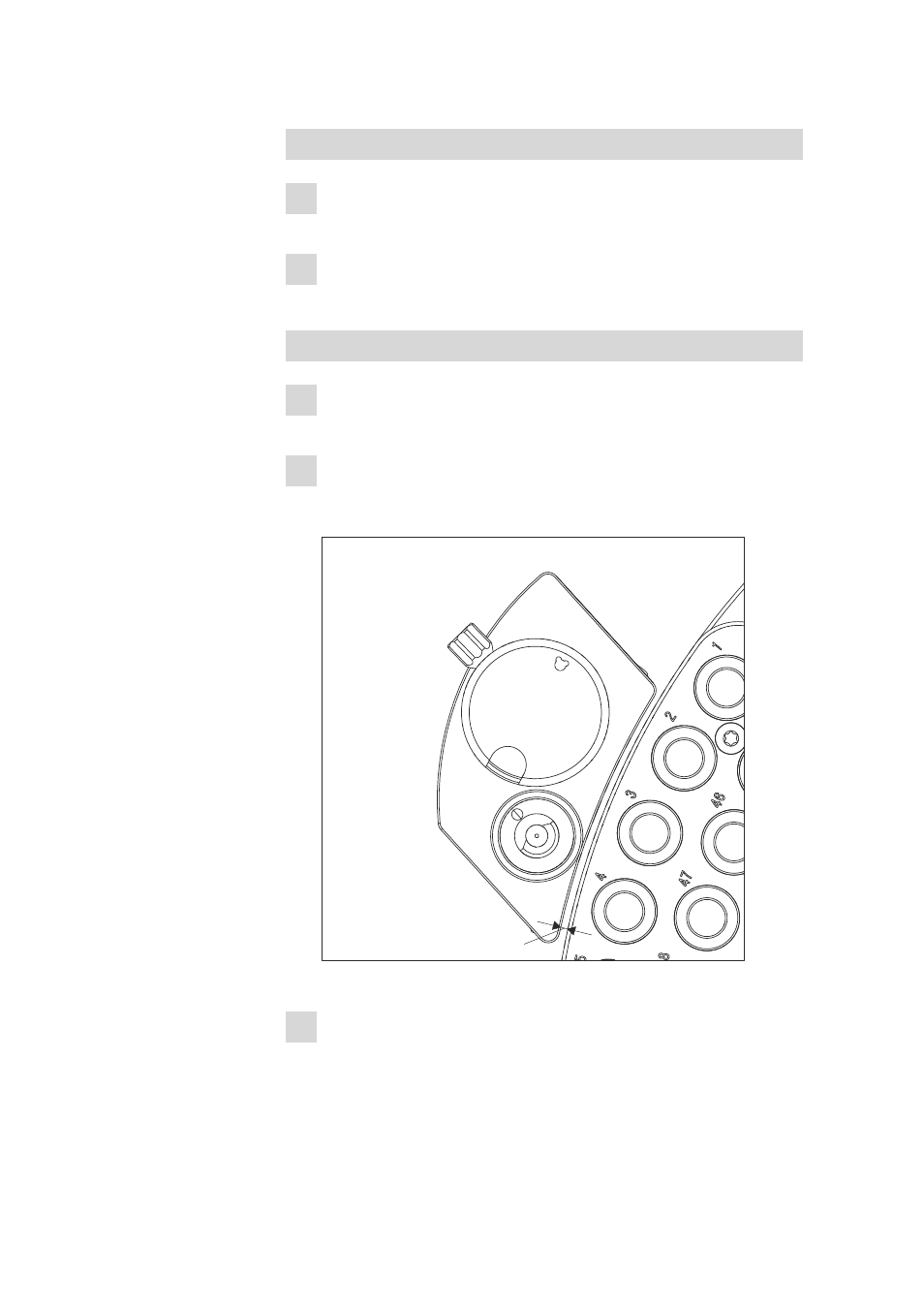

Figure 12 Distance to sample rack
3 Retighten the screws (11-1) to the base plate.
