6.1 Remote interface
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
26
￭￭￭￭￭￭￭￭
856 Conductivity Module
6 Appendix
6.1
Remote interface
The 6.2148.010 Remote Box allows devices to be controlled which cannot
be connected directly to the MSB interface of the Conductivity Module.
1
2
3

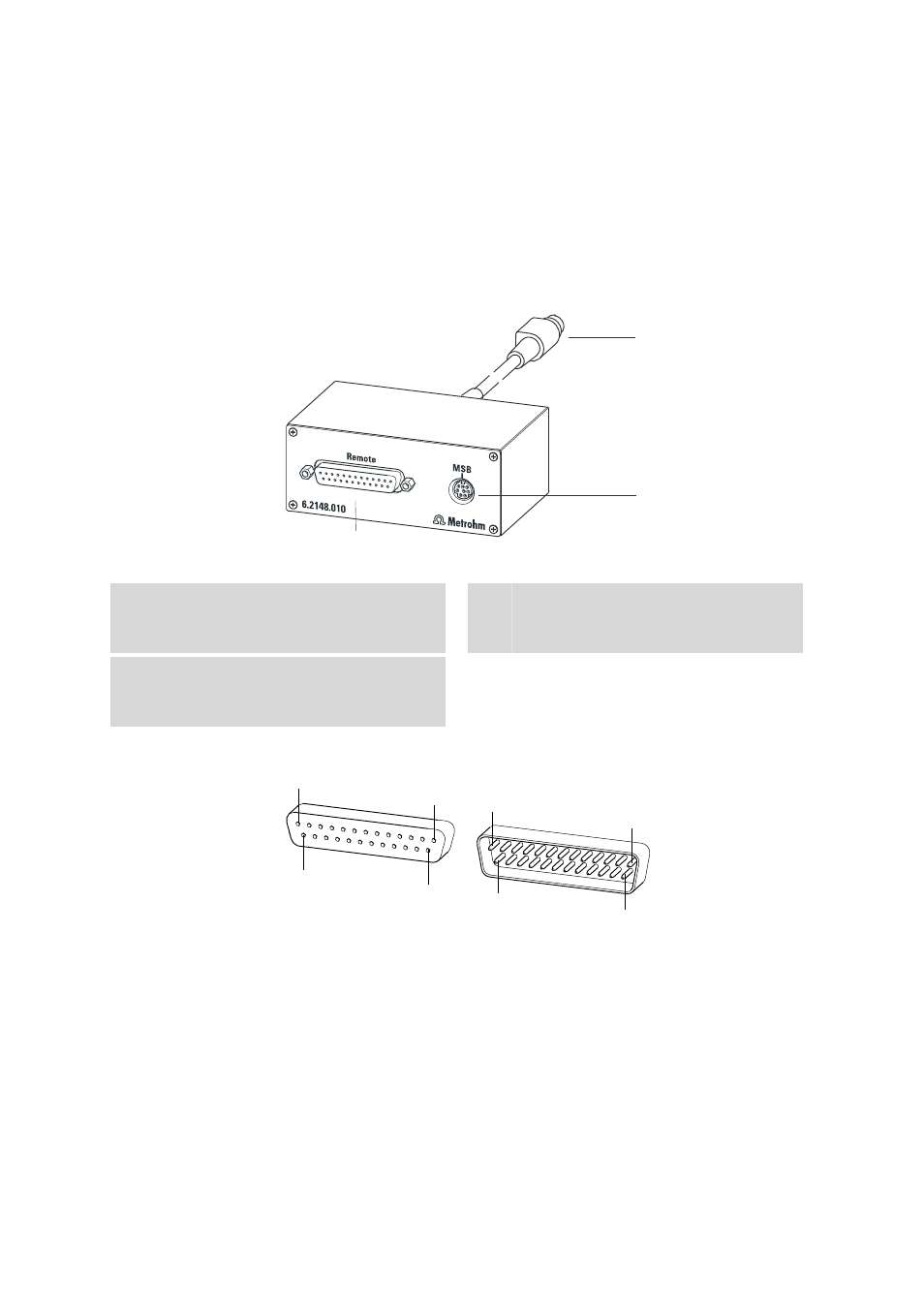

Figure 15
Connectors of the Remote Box
1
Cable
For connecting to the Conductivity Module.
2
MSB connector
Metrohm Serial Bus. For connecting external
dosing devices or stirrers.
3
Remote connector
For connecting instruments with a remote
interface.
6.1.1
Pin assignment of the remote interface
13
1
14
25
1
13
14
25
Figure 16
Pin assignment of remote socket and remote plug
The above figure of the pin assignment applies for all Metrohm instru-
ments with 25-pin D-Sub remote connector.
