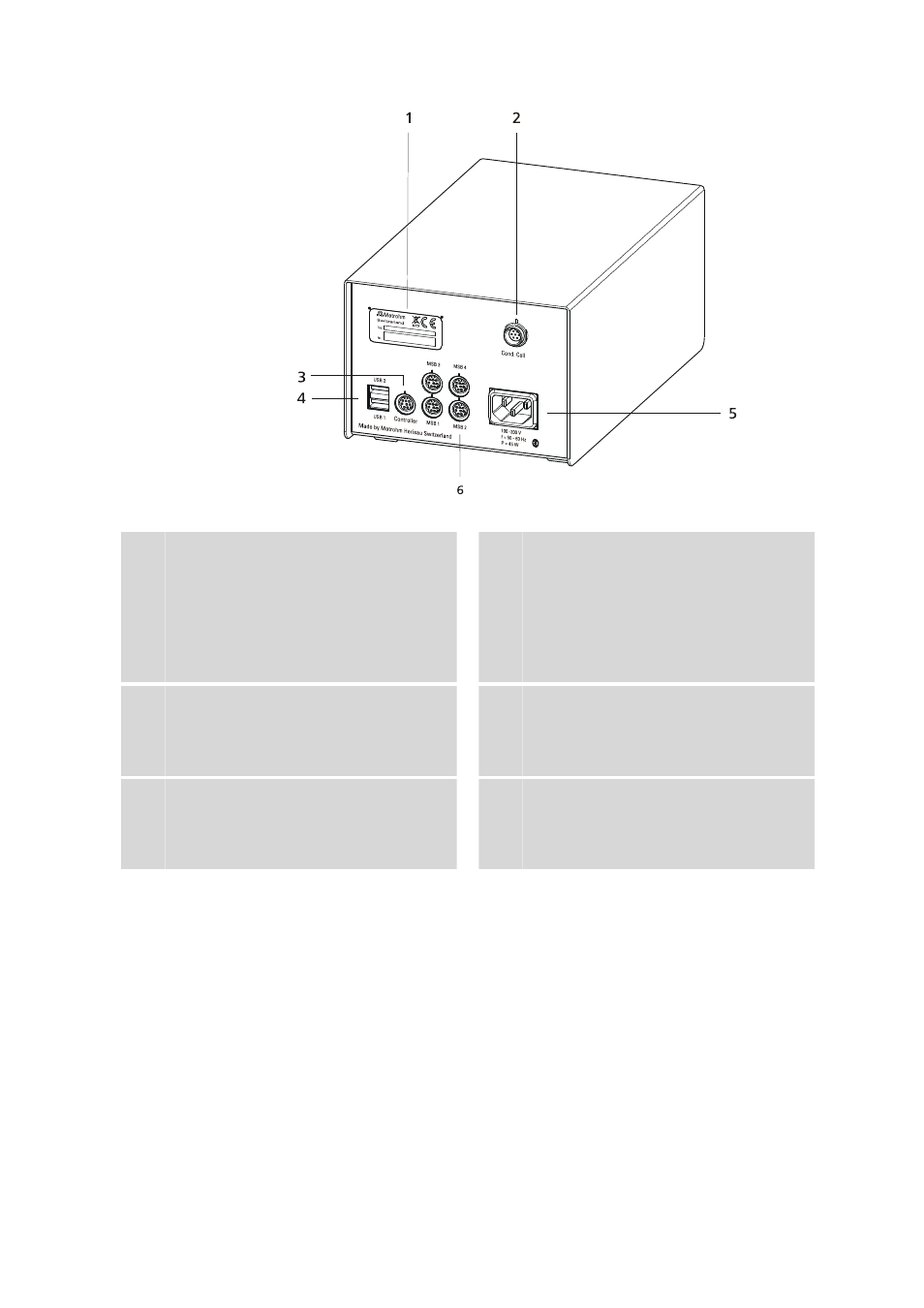

Figure 3, Rear 856 conductivity module – Metrohm 856 Conductivity Module User Manual
Page 15
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
2 Overview of the instrument
856 Conductivity Module
￭￭￭￭￭￭￭￭
7
Figure 3
Rear 856 Conductivity Module
1
Type plate
Contains specifications concerning supply
voltage, instrument type and serial number.
2
Conductivity measuring cell connector
(Cond. Cell)
For connecting a 5-ring conductivity measur-
ing cell with integrated temperature sensor.
Other Metrohm conductivity measuring cells
can be connected through the 6.2103.160
adapter box.
3
Connector (Controller)
For connecting a Touch Control or a PC with
installed PC software. Mini DIN, 9-pin.
4
USB connector (USB 1 and USB 2)
USB ports (type A) for connecting printer,
keyboard, barcode reader, additional Titran-
dos, USB Sample Processor, etc.
5
Power socket
6
MSB connector (MSB 1 to MSB 4)
Metrohm Serial Bus. For connecting external
dosing devices, stirrers or Remote Boxes.
Mini DIN, 9-pin.
