3 Installation
856 Conductivity Module
￭￭￭￭￭￭￭￭ 17
2 With the aid of the 6.2151.020 cable, connect the USB connector of
the 856 Conductivity Module (type A) with the USB connector of the
hub (type B, see manual for the hub).
3 Switch on the Touch Control.
The USB hub is recognized automatically.
3.4.3 Connecting a printer
Printers that are connected to the 856 Conductivity Module with Touch
Control must meet the following requirements:
￭ Printer languages: HP-PCL (PCL 3 to 5, PCL 3GUI), Canon BJL Com-
mands or Epson ESC P/2
￭ Printer resolution: 300 dots/inch or 360 dots/inch (Epson)
￭ Paper size: A4 or Letter, single-sheet feed.
Connect the printer as follows:
1 Switch off the Touch Control.
2 With the aid of the 6.2151.020 cable, connect the USB connector of
the 856 Conductivity Module (type A) with the USB connector of the
printer (type B, see manual for the printer).
3 Switch on the printer first, then the Touch Control.
4 Configure the printer in the device manager of the Touch Control
(see Touch Control manual).
USB 1
USB 2
MSB 1 MSB 2
MSB 3 MSB 4
Made by Metrohm Herisau Switzerland
Controller
100 -200 V
f = 50 - 60 Hz
P = 45 W
Metrohm
Switzerland
Nr.
Typ

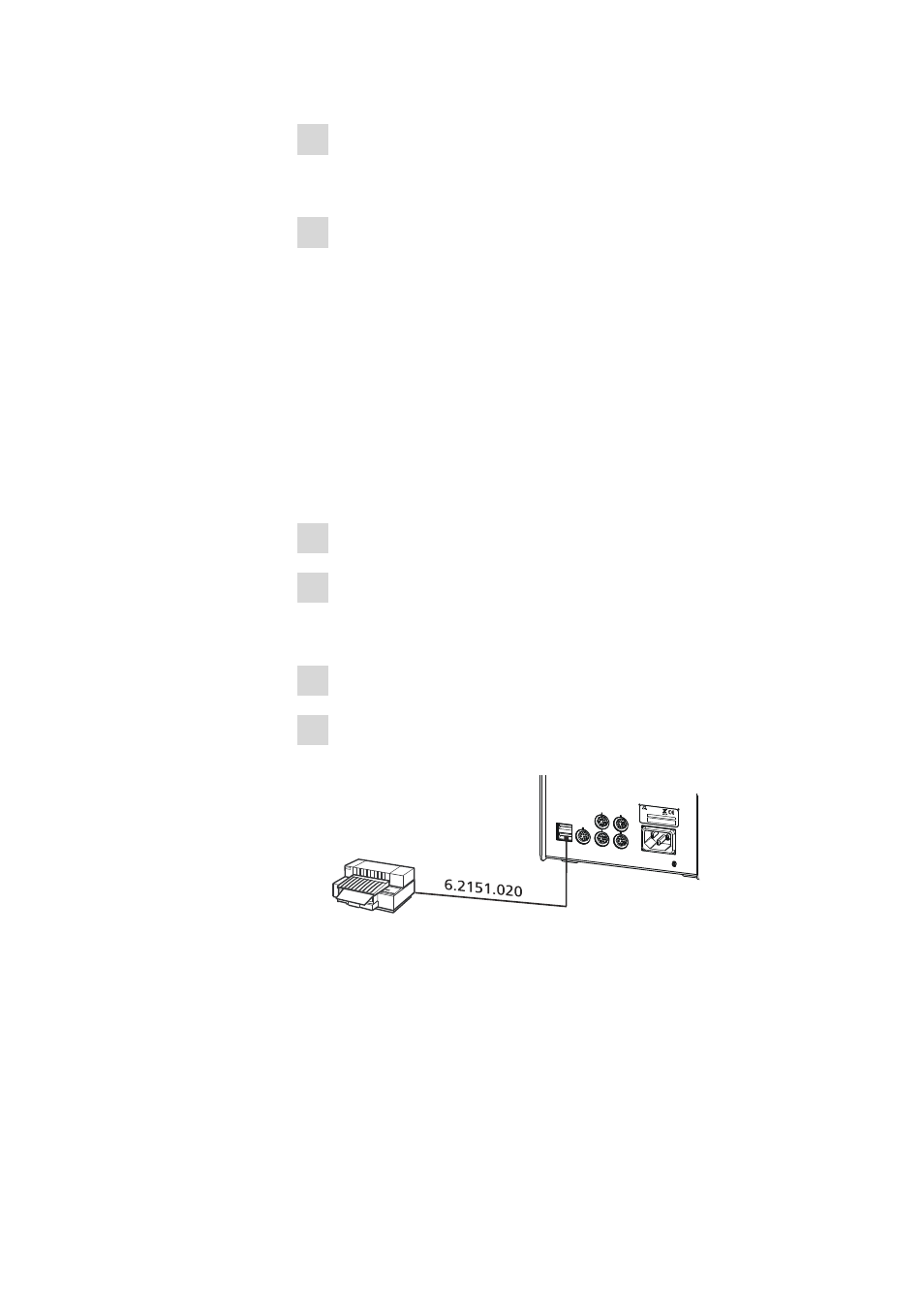

Figure 11 Connecting a printer
3.4.4 Connecting a balance
￭ Operation with a PC software:
– Connect the balance directly to the serial connector (COM) of
the computer. This is usually 9-pin and marked with the symbol
IOIOI.
