3 Installation
IC equipment: Liquid Handling Station
￭￭￭￭￭￭￭￭ 9

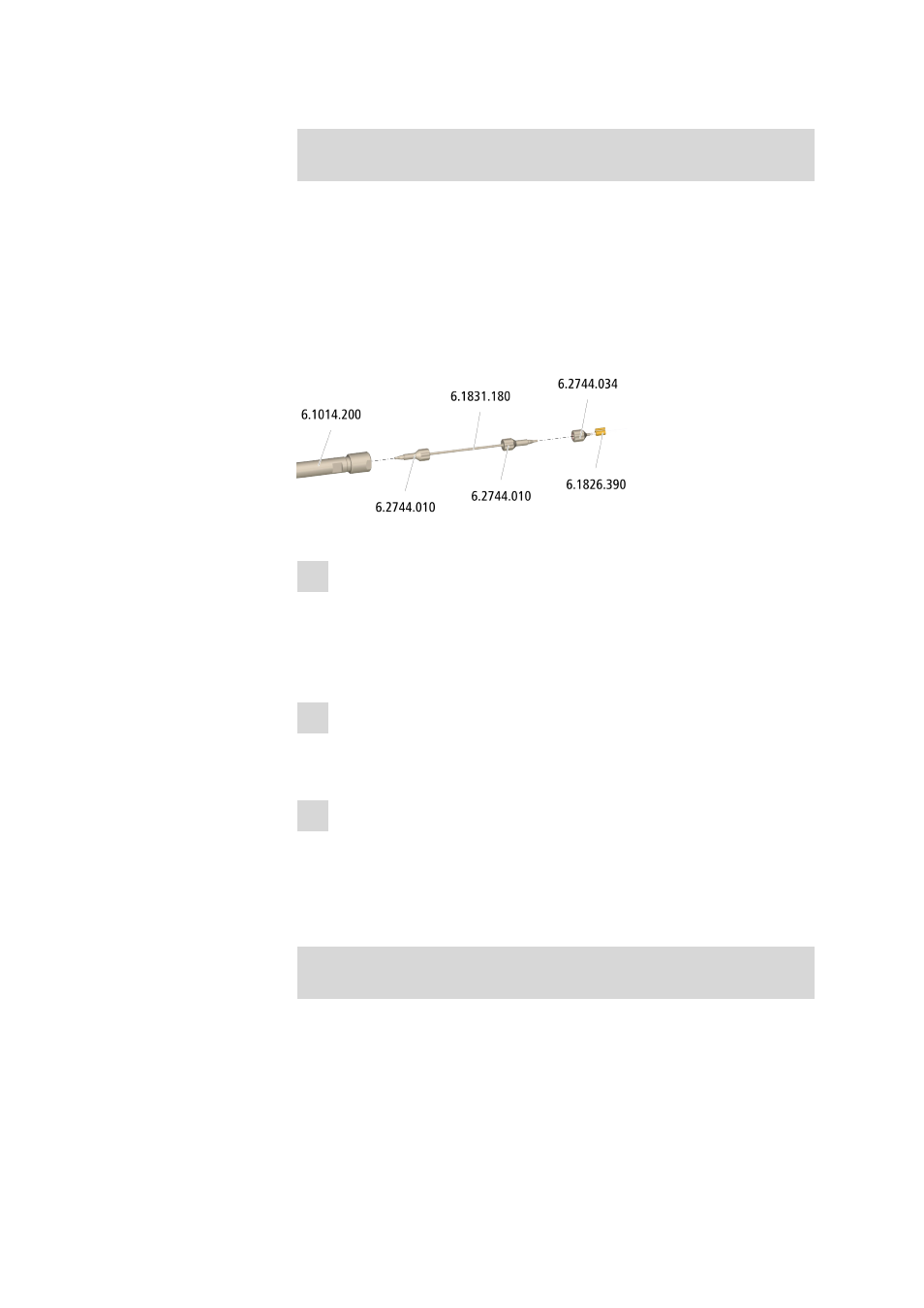

Installing the capillary between the trap column and the
peristaltic pump
Required accessories ￭ PEEK capillary (6.1831.180)
￭ Pressure screw (6.2744.010)
￭ Pump tubing with yellow stoppers (6.1823.390)
￭ Coupling olive/UNF 10/32 (6.2744.034)
￭ Capillary cutter (6.2621.080)
1 Preparing the pump tubing
￭ Attach a coupling olive/UNF 10/32 (6.2744.034) to each end of
the pump tubing.
(See the chapter "Installing the peristaltic pump" in the manual
for the Sample Processor.)
2 Cutting the capillary to size
￭ Cut off a piece of approx. 70 cm from the long capillary using the
capillary cutter.
3 Mounting the capillary
￭ Tighten one end of the capillary to the trap column outlet using a
pressure screw.
￭ Tighten the other end of the capillary to the pump tubing inlet
using a pressure screw.
Installing the capillary between the peristaltic pump and
the Liquid Handling Station
Required accessories ￭ PEEK capillary (6.1831.180)
￭ Pressure screw (6.2744.010)
￭ Pump tubing with yellow stoppers (6.1823.390)
￭ Liquid Handling Station (6.2841.120)
