1 Introduction
818 IC Pump / 8.818.1023 Instructions for Use
2
1.2 Parts and controls
In this section you will find the numbers and designations of the parts
and controls of the 818 IC Pump. The numbering applies throughout
the instructions for use, i.e. bold numbers in the text (e.g. 11 ) refer to
the parts and controls illustrated here.

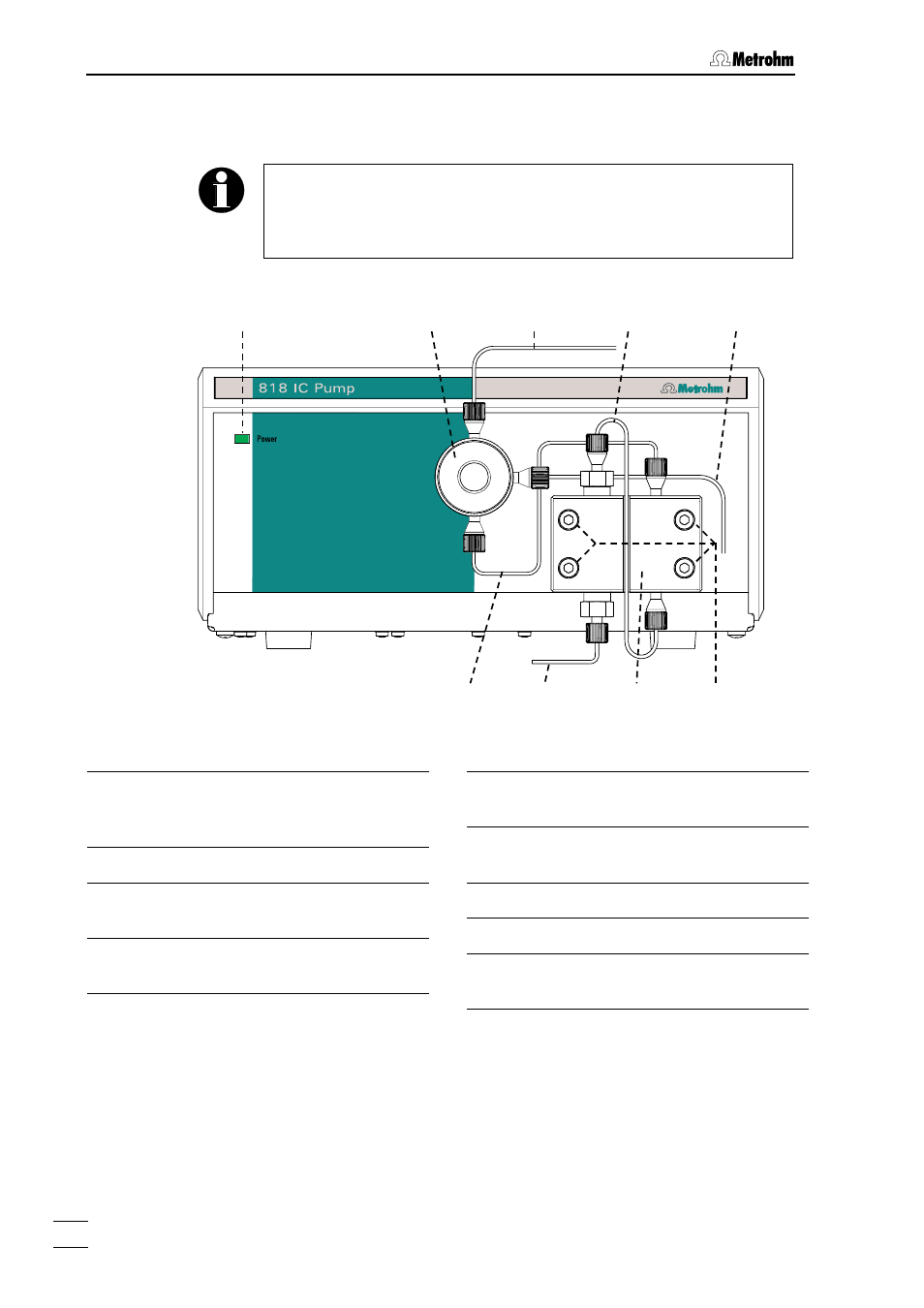

Fig. 1: Front of 818 IC Pump
1 Mains pilot lamp
Lights up when instrument is switched
on
2 Purge valve
3 Connection capillary
to injection valve of IC system.
4 Connection capillary
in pump head (intergal)
5 Outlet capillary
of Purge-Ventil.
6 Connection capillary
between pump head and purge valve.
7 Aspirating capillary
8 Pump head 6.2824.100
9 Fastening screws
for pump head
1 2 3 4 5
6 7 8 9
