4 Assembly
872 Extension Module – Liquid handling
￭￭￭￭￭￭￭￭ 23
3 Drainage tubing connection
For supplying escaped liquid through the
connected drainage tubing to the leak sen-
sor. 4 Drainage tubing connector
For draining escaped liquid from the base
tray through the connected drainage tubing.
5 Drainage tubing
Section of the 6.1816.020 silicon tubing.
Guides escaped liquid into a waste con-
tainer.
￭ Plug the drainage tubing (16-2) onto the drainage tubing connec-
tor (16-1) of the bottle holder and shorten to required length.
￭ Plug the other end of the drainage tubing (16-2) onto the drain-
age tubing connector (16-3) of the base tray.
￭ Plug the drainage tubing (16-5) onto the drainage tubing connec-
tor (16-4) and guide the other end into a waste container.
4.5 Mounting the accessories
The bottle holder for the 872 Extension Module – Liquid handling
6.2057.200 can be mounted on the instrument in order to set up the dif-
ferent small bottles, the mixing vessel and the transfer tubing in proper
sequence in front of the instrument. This permits keeping the capillary
connections as short as possible.
Mounting the bottle holder

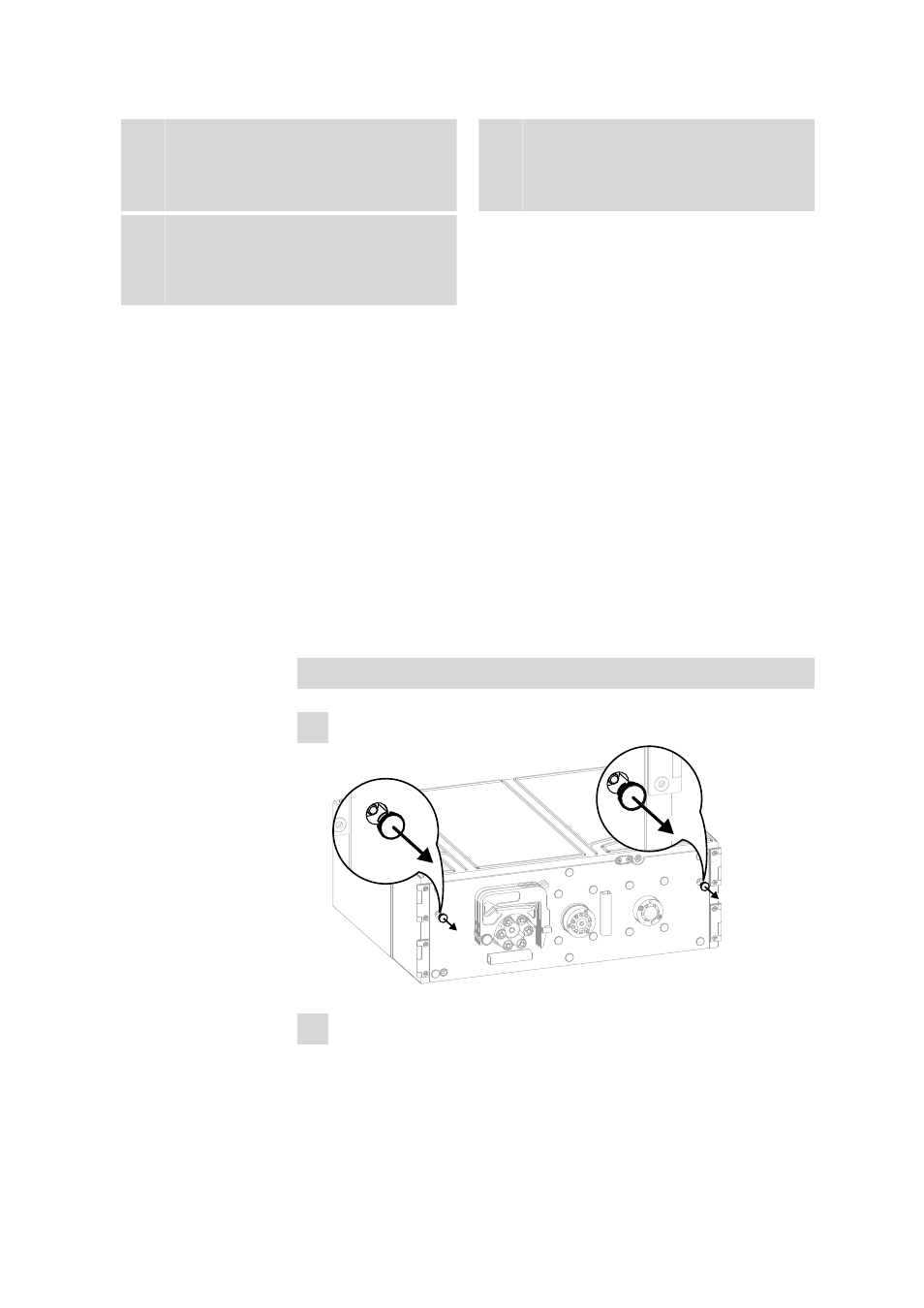

1 Removing the stoppers
2 Mounting the centring pins
Screw in the centring pin with a hexagon key as far as the limit stop.
